Teltonika

Teltonika 4-PIN Power Adapter with I/O Access for RUT300, RUTX08, RUTX10, TSW100, TSW110

Teltonika 4-PIN Power Adapter with I/O Access for RUT300, RUTX08, RUTX10, TSW100, TSW110

PR5MEC21

$26.00 NZD
$26.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Teltonika 4-PIN Power Adapter with I/O Access for RUT300, RUTX08, RUTX10, TSW100, TSW110

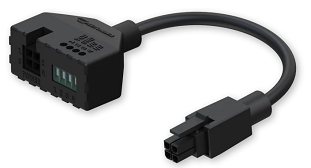

Teltonika 4-PIN Power Adapter with I/O Access for RUT300, RUTX08, RUTX10, TSW100, TSW110 and more. This 4-PIN power connector adapter allows you to easily access I/O functionality for compatible Teltonika Networks devices. It features a standard 4-PIN to 4-PIN power connection with an additional terminal for configurable digital inputs and outputs.
Details
Manufacturer's Product Code PR5MEC21
Input connector 4-pin, 3 mm pitch and 4-way screw terminal block
Output connector 4-pin, 3 mm pitch
Cable 4 x 0.20 mm² (24 AWG), 100 mm
Screwdriver type Micro slotted
Weight 15 g
Conductor cross section solid / flexible 0.14 – 0.50 mm² (20 – 26 AWG)
Conductor cross section flexible, with ferrule, with plastic sleeve 0.25 – 0.30 mm² (22 – 23 AWG)
Pinout 1 Pin: Power +, 2 Pin: Ground –, 3 Pin: Input/Output, 4 Pin: Input/Output
