Teltonika Telematics

Teltonika 1-Wire RFID Reader and accessories for fleet management devices

Teltonika 1-Wire RFID Reader and accessories for fleet management devices

PGEX00001510

$45.00 NZD
$45.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Teltonika 1-Wire RFID Reader and accessories for fleet management devices
Teltonika 1-Wire RFID Reader and accessories for fleet management devices. One of the implemented features for Teltonikas fleet management devices is the 1-Wire data protocol, which can be used to read RFID Tags by emulating them using iButton protocols. It is a convenient way to implement driver authorization in your vehicles if you want to use RFID tags with minimal setup complexity.
Features
  • Immobilizer - prevent anyone from starting the vehicle without scanning an RFID tag first.
  • Authorized driving - keep track of who is driving your vehicle according to the RFID tag they use to authenticate themselves.
  • Auto Geofencing – gives ability to know when car leaves customized areas without RFID authorization.
Details
Product Code PGEX00001510
Interface White wire – 1-wire data, Brown wire – power supply, Green - ground
Power supply range 6.5-30 V DC
Frequency 125 kHz
Type of transponder Manchester, 64 cycles per bit
Antenna surface area 6,8 cm2
Reading range 4 cm
Reading frequency 6 times per second for identification, 2 times per second when transponder is in range of the reader
supported 1-Wire commands 0x33 (0x0F) - Read ROM, 0xF0 - Search ROM
Mounting method M12 Thread
Cable length 40 cm
Operating temperature From -20 ºC to +55 ºC
Regulatory RoHS certified
Details

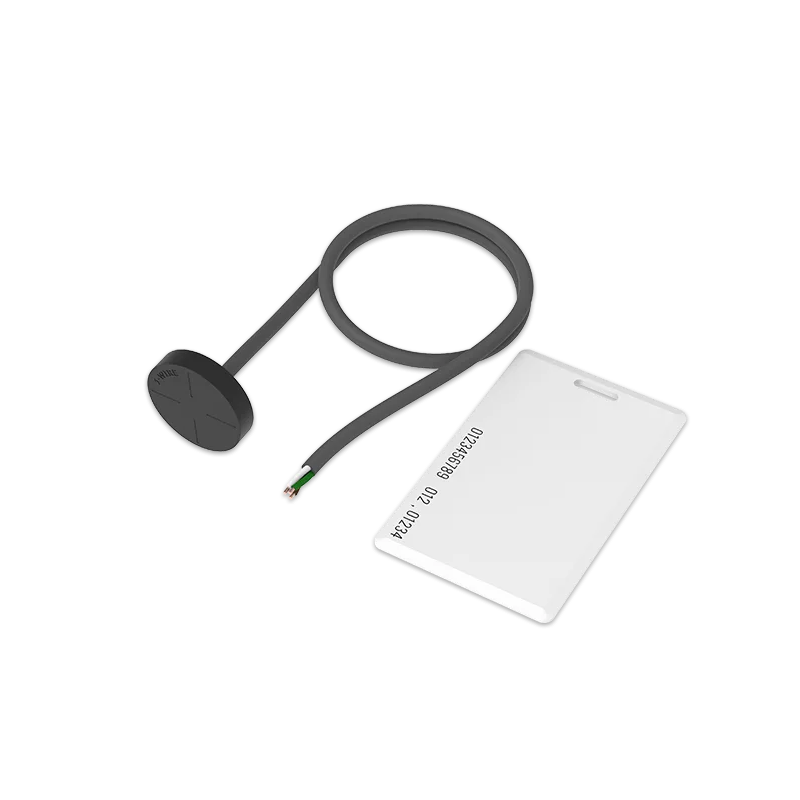

Contents 1x 1-Wire RFID reader and 1x RFID card
