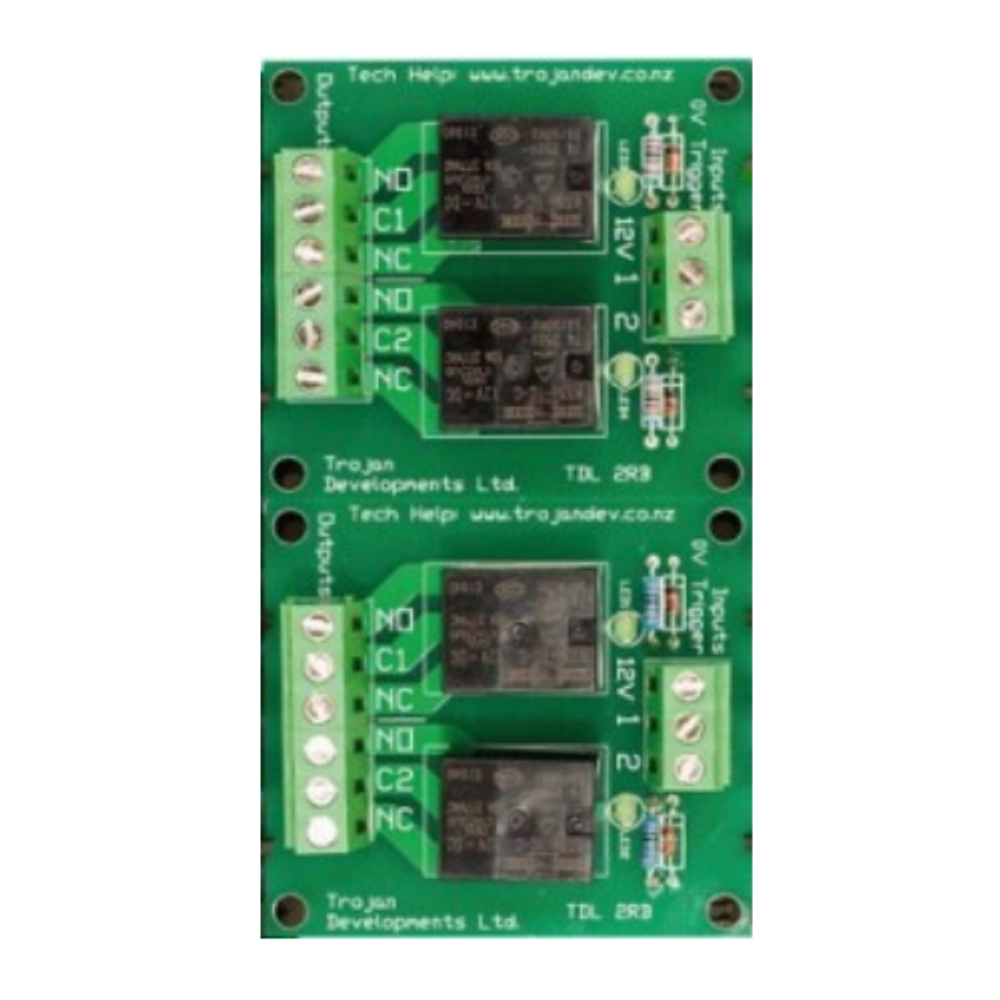

4 Way 8 Amp Power Relay Board The 4 Way 8 Amp Relay Board has 4 x 12Vdc inputs that switch 4 x 8 amp single pole double throw relays. Each set of two relays can be switched from different power supplies and if only two relays are required, the board can be split into two. This unit also fits on the TDL Mounting Base system to ensure a neat and tidy installation.

Features

• Contacts rated at 8 Amps AC/DC
• Fits TDL-MB Modular unit that can be used to switch a number of devices
• Designed to be used as an interface between a low current switching control board and a high powered lock
• LED’s to indicate relay status
• Raising clamp type terminals will not damage cables and can accommodate up to a 2.5mm² cable

Specifications

• Four way Relay Board
• Operating Voltage 9 to 16Vdc - 38mA at 13.6 Vdc per relay
• 12Vdc negative trigger inputs
• Four Single Pole Double Throw relays
• Contacts rated at 8 Amps AC/DC
• Dimensions: 110mm (w) x 60mm (h) x 23mm (d)



Specs



TDL 4RB – 4 Way Relay Board

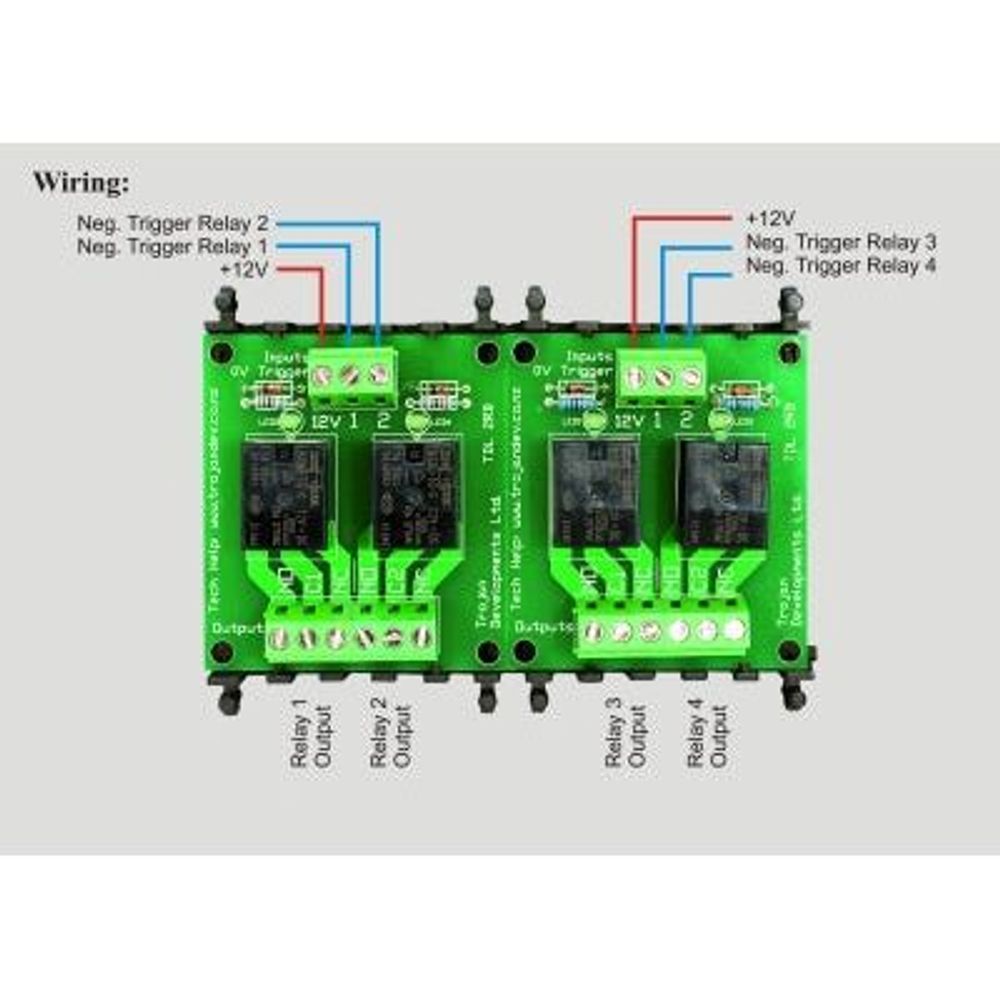

The 4 Way 8 Amp Relay Board has 4 x 12Vdc negative trigger inputs that switch 4 x 8 amp single pole double throw relays. Each set of two relays can be switched from different power supplies and if only two relays are required, the board can be split into two. If this is not required the inputs will need to be linked together.

The board also fits the TDL Mounting Base system, which makes installation very easy and tidy as it allows all cables to be run behind the PCB and covered by a cover that also has an area for labelling. They can be connected together with other boards to make up a complete system of relays, fuses, timers etc… The TDL Mounting Base also comes complete with fixing tape and screws.

Specifications

• Four way Relay Board
• Operating Voltage 9 to 16Vdc – 38mA at 13.6 Vdc per relay
• 12Vdc negative trigger inputs
• Four Single Pole Double Throw relays
• Contacts rated at 8 Amps AC/DC
• Dimensions: 110mm (w) x 60mm (h) x 23mm (d)
