The single 8 Amp Relay Board has 1 x 12vdc input that switches an 8 amp single pole double throw relay. The board also fits the TDL Mounting Base.

Features

• Contact rated at 8 Amps AC/DC
• Designed to be used as an interface between a low current switching control board and a high powered lock
• LED to indicate relay status
• Raising clamp type terminals will not damage cables and can accommodate up to a 2.5mm² cable
• Fits TDL-MB mounting system
• Modular unit that can be used to switch a number of devices

Specifications

• Single way Relay Board
• Operating Voltage 9 to 16Vdc - 38mA at 13.6 Vdc
• 12Vdc negative trigger input
• Single Pole Double Throw relay
• Contacts rated at 8 Amps AC/DC
• Dimensions: 55mm (w) x 60mm (h) x 23mm (d)



Specs

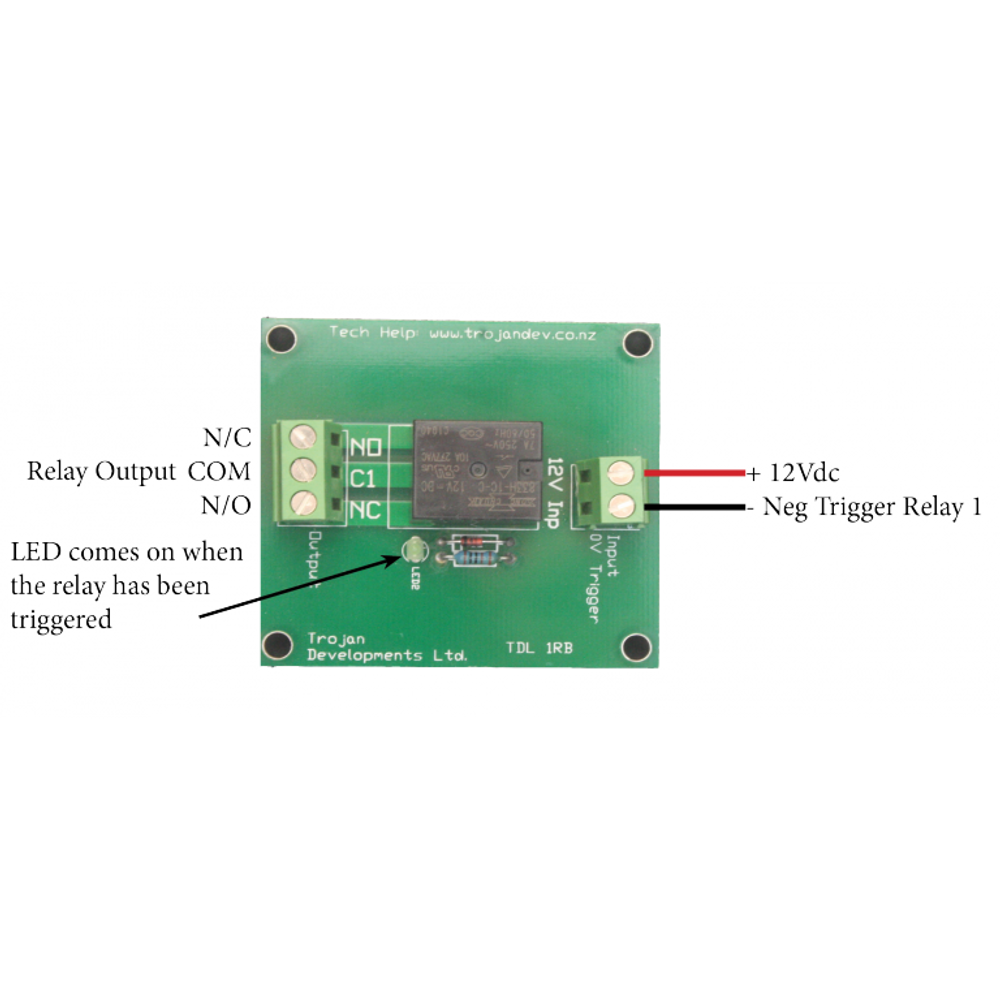

TDL 1RB – Single Relay Board

The single 8amp relay board is a compact unit designed to be used as an interface between a low current switching device like an Access Control System door control board and a high powered locks.
This is a modular unit that can be used to switch a number of devices.
The contacts are rated at 8amps resistive up to 30Vdc.
There is also a diagnostic LED on the relay board to indicate that the relay is operated
The terminals are raising clamp type which will not damage the cables and can take up to a 2.5mm² cable
The unit is based on a standard foot print so that it can be mounted with other TDL boards on the optional TDL Mounting Base to ensure a neat and tidy installation.



Specifications

• Single way Relay Board
• Operating Voltage 9 to 16Vdc- 38mA at 13.6 Vdc
• 12Vdc negative trigger input
• Single Pole Double Throw relay
• Contacts rated at 8 Amps AC/DC
• Dimensions: 55mm (w) x 60mm (h) x 23mm (d)
