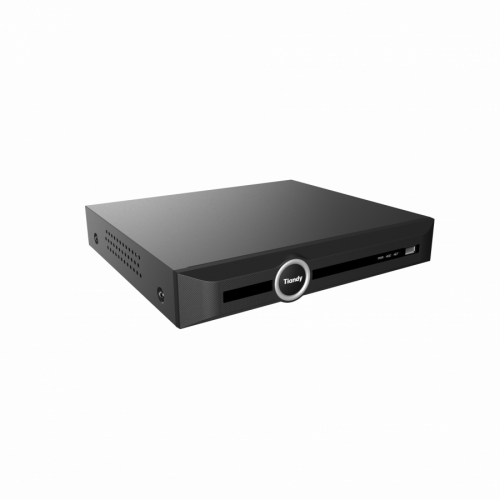

TC-R3110 - Tiandy 1HDD 10ch Advanced PSE NVR TC-R3110

TC-R3110 - Tiandy 1HDD 10ch Advanced PSE NVR TC-R3110

TC-R3110

$427.14 NZD
$427.14 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

• Up to 10-channel input
• 8 PoE ports
• Up to 8MP Resolution Recording
• Incoming Bandwidth 80Mbps
• Outgoing Bandwidth 80Mbps

Specifications:

Input
Video Input 10-ch
Max Resolution 8MP
Two-way Audio Input 1-ch, 3.5mm
Bandwidth Income 80Mbps; Outgoing 80Mbps
Output
HDMI/VGA Output HDMI 1-ch, 3840×2160, 2560×1600, 2560×1440, 1920×1080, 1280×720, 800 ×600, 1024×768, 1366×768, 1440×900, 1280×800
VGA 1-ch, 1920×1080, 1280×720, 800×600, 1024×768, 1366×768, 1440×900, 1280×800
Screen Split 1/3/4/6/8/9/10
Audio Output 1×RCA
Decoding
Decoding Format S 265/H.265/H.264
Recording Resolution 8MP/6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Preview Capability 1×8MP, 1×6MP, 1×5MP, 2×4MP, 2×3MP, 4×1080P, 8×720P, 10×4CIF
Synchronous Playback 1×8MP, 1×6MP, 1×5MP, 2×4MP, 2×3MP, 4×1080P, 8×720P
Records Encryption Yes
Hard Disk
SATA 1 SATA interface for 1 HDD
Capacity Up to 10TB for each HDD
eSATA Interface N/A
Array Type N/A
External Interface
Network Interface 1xRJ45 self-adaptive 10/100 Mbps network interface
USB Interface 2xUSB 2.0
Serial Interface N/A
Alarm In/Out 4/1
Network
Protocol TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, IGMP, QoS, IPV4, IPV6, Multicast, ARP, UDP, SNMP, SSL, Telnet, RTMP, NFS
System Compatibility ONVIF (PROFILE S/T/G), SDK, P2P
POE
POE Interface 8xRJ45 self-adaptive 10/100 Mbps network interface
Power per POE Port 30W
Max Current per POE Port 600mA
General
Web Version Web6
Language Simple Chinese, Traditional Chinese, English, Spanish, Korean, Italian, Turkish, Russian, Thai, French, Polish, Dutch, Hebraism, Arabic
Operating Conditions -10℃～55℃, 10%~90% RH
Power Supply DC48V
Consumption (without HDD)  ≤20W (without HDD)
Chassis 1U
Dimensions 45.1×255×231mm, (1.78×10.04×9.09 inch)
Weight (without HDD) 1Kg (2.2lb)
