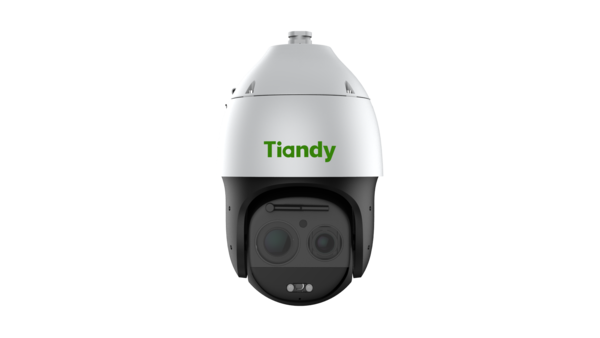

TC-H348M - Tiandy 4MP 63x Super Starlight IR Laser AEW AI PTZ Color Camera IP PRO SPEED DOME PRO AEW TC-H348M

TC-H348M - Tiandy 4MP 63x Super Starlight IR Laser AEW AI PTZ Color Camera IP PRO SPEED DOME PRO AEW TC-H348M

TC-H348M

$3,712.86 NZD
$3,712.86 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

·Up to 4MP 2560×1440@30fps
·Min. illumination Color: 0.001Lux@F1.6
·Smart IR, IR Range: 300m
·Laser Distance: 500m
·Bulit-in Speaker
·S+265/H.265/H.264/M-JPEG
·Monitoring/Intelligent Monitoring/ Face Capture mode
·Auto-tracking Early Warning (AEW)
·Support Laser Point
·Alarm 8 in and 2 out,Audio 1 in and 1 out
·Plugin Free
·IP66
·DC36V±25%,POE++(IEEE802. bt)
·Optical zoom: 63x, digital zoom 16x
·Built-in Wiper
·Built-in Electronic Compass
·Color camera

Specifications:

Camera
Image Sensor 1/1.8″ CMOS
Min. Illumination Color: 0.001lux@ (F1.6, AGC   ON), 0lux with IR
Shutter Time 1s to 1/100,000s
Day&Night IR Cut Filter with Auto Switch
WDR 120dB,only in monitoring mode
Lens
Focal Length 5.7-359mm
Optical Zoom 63X
Digital Zoom 16X
Zoom Speed ＜8s
Aperture Range F1.63~F4.94
Field of View Horizontal filed of view: 60° (w)~1.54° (t) ,
Vertical filed of view: 35.5°   (w)~0.87° (t),
Diagonal field of view:67.5°(w)~1.77(t)
Focus Control Auto,semi-auto,manual
Iris Control Auto
Close Focus Distance 1000mm~3000mm
DORI Distance Detect:3800m
Observe:1508m
Recognize:760m
Identify:380m
Pan&Tilt
Pan Range 360°
Pan Speed Pan Manual Speed: 0.1°~200°/s,   Pan Preset Speed: 240°/s
Tilt Range -21°~90° (Default -13°~90°)
Tilt Speed Tilt Manual Speed: 0.1°~180°/s,   Tilt Preset Speed: 180°/s
3D Position Yes
Preset 500
Cruise 16, up to 32 presets per cruise
Scan 8
Pattern 8, each with 600s memory or 1000 orders
Scheduled Task Preset,Cruise,Scan,Pattern
North Point Yes
Power-off Memory Yes
Preset  Freezing Yes
Illuminator
IR LEDs 11
IR Distance Up to 300m
Wavelength 850nm
IR Irradiation Angle Adjustable by Zoom
White LEDs 2, support white/blue/red light flash
Whitelight Distance 30m
Laser 6, Wavelength 850nm
Laser Distance Up to 500m
Compression Standard
Video Compression S+265/H.265/H.264 (High profile、Main profile、Baseline)
Video Bit Rate 32Kbps~16Mbps
Audio Compression G.711A/G.711U/ADPCM_D/AAC_LC
Audio  Sampling Rate 8kHz/32kHz/48kHz
Max. Resolution 2560×1440@30fps
Main Stream PAL:25fps(2560×1440,2304×1296,1920×1080,1280×720)
NTSC:30fps(2560×1440,2304×1296,1920×1080,1280×720)
Sub Stream PAL:25fps(704×576,704×288,352×288,640×360)
NTSC:30fps(704X480,704X240,352X240,640×360)
Third Stream PAL:25fps(704×576,704×288,352×288,640×480)
NTSC:30fps(704X480,704X240,352X240,640×480)
BLC Yes
HLC Yes
AGC Yes
Noise Reduction 2D/3D
White Balance Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/Sodium   lamp/Incandescent lamp/
Locked white balance
ROI 7 Dynamic Areas for Both Main   and Sub Stream, support 1 auto-tracking ROI
EIS EIS,only in monitoring mode
OSD 16×16, 24×24,32×32, 48×48,   64×64,96×96, adaptable size, Letters such as Week, Date, Time, Total 5   Regions
Defog Digital
Flip Yes
Regional Exposure Yes
Regional Focus Yes
Demist Yes
Feature
Alarm Trigger Motion Detection;Mask Alarm;Disk Full;Disk R/W Error;IP Address   Conflict;MAC Address Conflict;
FTP Server Exception ;Event Input, Event Output
Linkage Method send email;trigger   sound;trigger warmlight;trigger recording;trigger capture;notify surveillance   center
Video Analytics Human/Vehicle Classification;Tripwire;Double   Tripwire;Perimeter;Object    Abandon;Object Lost;Heatmap;
Loitering;Running;Parking;People Counting;Crowed;Safety Helmet Detection;On   Duty Detection;
Video Abnormal;Audio Abnormal
Early Warning(EW) Three level,Voice warning   support 35 voice messages; Laser driven away; Three-light flash warning
Auto-Tracking Yes
Face Mode Face Capture
Face Caputure Performance Detects up to 32 faces at the same scene
Network
ANR Auto store video in SD card when NVR disconnected, and upload video to   NVR when resumed connection
(Only Support Tiandy ANR NVR)
Protocols HTTP;HTTPS;TCP/IP;UDP;UPnP;SNMP;DHCP;DNS;DDNS;Easy   DDNS;NTP;SMTP;SSL;802.1X;QoS;IPv4;IPv6;
PPPOE;Unicast;Multicast;SRTP;RTSP;FTP;SFTP;NAS
System Compatibility ONVIF Profile S/T/G/M;CGI;RTMP
Remote Connection ≤4
User/Host Up to 32 users. 4 user levels
Client Easy7 Smart Client
Moblie Client EasyLive Plus
Web IE10+;Firefox52+;Edge89+;Safari11+;Chrome57+
Interface
Communication Interface 1 RJ45 10M/100M self adaptive Ethernet port
Audio I/O 1/1
Alarm I/O 8/2
Built-In Speaker Yes
Reset Button Yes
On-board storage Built-in Micro SD card slot, up   to 512 GB
RS-485 Yes
BNC Yes(Debugging use)
Wiper Yes
Electronic Compass Yes
GPS/BDS N/A
General
Web Client Language 17 languages
Simple Chinese/English/Traditional Chinese/Spanish/Italian/   Korean/Turkish/Russian/Thai/ Polish/French/Dutch/ Hebraism/Vietnamese/Arabic/German/   Ukrainian
Operating Temperature -40℃～70℃(IR   OFF)
-40℃～40℃(IR ON)
Operating Humidity 0-95%
Storage Temperature -40℃～70℃
Storage Humidity 0-95%(non-condensing)
Power Supply DC36V±25%/POE++(IEEE802.3 bt)
Power Consumption 37W (IR OFF), 62W (IR ON )
Protection IP66 , TVS 6000V lightning   protection, surge protection and voltage transient protection
Heater Yes
Material ADC12
Boundary Dimensions 308(D)505(H)mm
Package Dimensions 445(L)445(W)700(H)mm
GrossWeight 17.95kg
NetWeight 12.75kg
