Tiandy

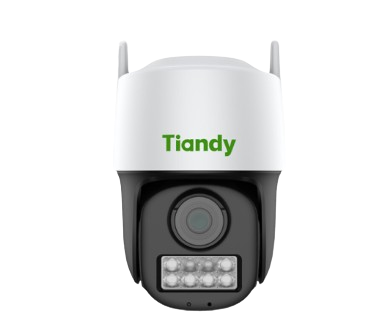

TC-H333N - Tiandty 3MP Fixed Color Maker Wi-Fi PT Camera TC-H333N

TC-H333N - Tiandty 3MP Fixed Color Maker Wi-Fi PT Camera TC-H333N

TC-H333N

$427.14 NZD
$427.14 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

● IP66.

● S+265/H.265/H.264.

● Up to 2304x1296@20fps.

● Smart IR, IR Range: 50m.

● 2-way Talk, Built-in Mic/Speaker.

● Support Human Detection and Tracking.

Specifications:

Camera



Image Sensor

1/2.9"CMOS

Min. Illumination

Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR

Shutter Time

1s~1/100000s

Day&Night

IR-cut filter with auto Switch (ICR)

Smart IR

Yes

WDR

DWDR

S/N

>38dB

Angle Adjustment

0~294°(P); 0~90°(T)

Lens



Lens Type

Fixed focal lens

Focal Length

4mm

Lens Mount

M12

Aperture Range

F1.6

Aperture Type

Fixed

Field of View

81.6°(H); 43.1°(V); 94.2°(D)

DORI Distance

Detect:57.14m Observe:22.68m Recognize:11.43m Identify:5.71m

Pan&Tilt



Pan Speed

30°/s

Tilt Speed

25°/s

Preset

255

Illuminator



IR LEDs

6

IR Distance

Up to 50m

Wavelength

850nm

White LEDs

6

Whitelight Distance

15m

Compression Standard



Video Compression

S+265/H.265/H.264B/H.264M/H.264H

Video Bit Rate

32k~4Mbps

Audio Compression

G.711A/G.711U

Audio Sampling Rate

8kHz/16kHz




Max. Resolution

3MP,2304×1296@20fps

Main Stream

PAL:20fps(2304×1296, 1920×1080, 1280×720, 640×480, 704×576) NTSC:20fps(2304×1296, 1920×1080, 1280×720, 640×480, 704×480)

Sub Stream

PAL:20fps(704×576, 704×288, 640×360, 352×288, 800×488) NTSC:20fps(704×480, 704×240, 640×360, 352×240, 800×488)

BLC

Yes

HLC

Yes

AGC

Yes

3D DNR

Yes

White Balance

Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance

OSD

Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16 Chinese characters per region; 16*16/32*32

Privacy Mask

4 black static areas

Defog

Yes

Feature



Exceptions Alarm

Disk Full; Disk R/W Error; IP Address Conflict

Linkage Method

Trigger Sound; Trigger Warmlight; Trigger Recording; Trigger Capture; Notify Surveillance Center

Video Analytics

Smart Alarm

Auto-Tracking

Yes

Network



ANR

Yes

Protocols

HTTP; TCP/IP; UDP; ICMP; DHCP; DNS; NTP; TLS v1.2; IPv4; SSH; Unicast; FTP

System Compatibility

ONVIF(Profile S/T) ; SDK; CGI; Milestone; RTSP

Remote Connection

≤2

Client

Easy7 VMS

Moblie Client

EasyLive Plus

Web

IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+

Wi-Fi



Transmission Distance

Up tp 30m( based on actual environment)

Wireless Standard

IEEE802.11b/ 802.11g/802.11n

Frequency Range

2.4 GHz ~ 2.4835 GHz

Channel Bandwidth

20/40MHz

Wi-Fi Security

WPA-PSK/WPA2-PSK

Interface



Communication Interface

1*RJ-45 (10/100 Base-T)

Built-in Mic

Yes

Built-in Speaker

Yes

Reset Button

Yes

On-board Storage

Support microSD/microSDHC/microSDXC card,up to 512GB

General



Web Client Language

3 languages Simple Chinese/English/Vietnamese

Operating Temperature

-30℃~60℃(-22℉~140℉)

Operating Humidity

≤95%RH

Storage Temperature

-30℃~60℃(-22℉~140℉)

Storage Humidity

10%~95%RH(non-condensing)

Power Supply

DC12V±25%,Max. 12W

Protection

Surge4000V; ESD6000V; IP66

Boundary Dimensions

138(L)112(W)173(H)mm

Package Dimensions

160(L)160(W)205(H)mm

GrossWeight

0.67kg
