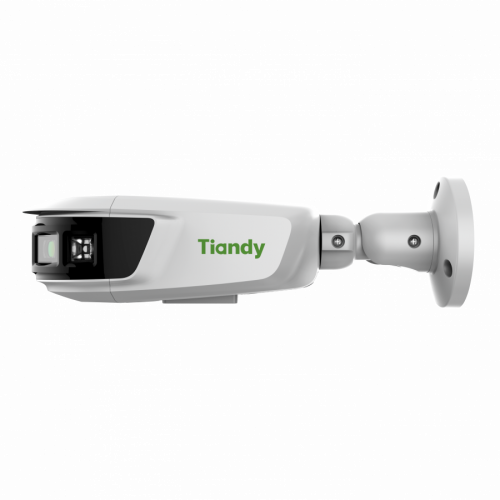

TC-C382V - Tiandy 8MP Fixed Polar Day Panoramic Camera TC-C382V

TC-C382V - Tiandy 8MP Fixed Polar Day Panoramic Camera TC-C382V

TC-C382V

$641.43 NZD
$641.43 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

·Metal+plastic housing

·Up to 8MP,4640×1728@25fps

·S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG

·Color:0.0001Lux@(F1.0,AGC ON),B/W:0Lux with IR

·Built-in Mic, Built-in Speaker

·Support microSD/microSDHC/microSDXC card,up to 512GB

·Support smart surveillance

·Support human/vehicle classification

·Operating conditions -40℃~65℃(-40℉~149℉), ≤95%RH

·DC12V±25%,Max. 11W, PoE:IEEE 802.3at,Max. 12W

·IP67

Specifications:

Camera

Image Sensor

1/2.7"CMOS

Min. Illumination

Color:0.0001Lux@(F1.0,AGC ON),B/W:0Lux with IR

Shutter Time

1s~1/100000s

Day&Night

NO IR-cut

WDR

120dB

S/N

>46dB

Angle Adjustment

0~360°(P); 0~90°(T); 0~360°(R)

Lens

Lens Type

Fixed focal lens

Focal Length

2.8mm

Lens Mount

M12

Aperture Range

F1.0

Aperture Type

Fixed

Field of View

180°(H)±10°; 65°(V)±5°

DORI Distance

Detect:56m Observe:22m Recognize:11m Identify:5.6m

Illuminator

White LEDs

3

Whitelight Distance

15m

Compression Standard

Video Compression

S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG

Video Bit Rate

32k~16Mbps

Audio Compression

G.711A/G.711U/ADPCM_D/AAC_LC

Audio  Sampling Rate

8kHz/32kHz/48kHz


Max. Resolution

8MP,4640×1728@25fps

Main Stream

PAL:25fps(4640×1728, 4096×1520) NTSC:24fps(4640×1728, 4096×1520)

Sub Stream

PAL:25fps(1408×528) NTSC:24fps(1408×528)

BLC

Yes

HLC

Yes

AGC

Yes

3D DNR

Yes

White Balance

Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance

ROI

8 rectangular static areas

OSD

Overlay of additional characters in 5 regions, 2 lines, with a maximum of 127 characters or 42 Chinese characters per region; 16*16/32*32/48*48/64*64/96*96/128*128

Picture Overlay

1*200x200 size BMP 24 color bit image overlay

Privacy Mask

4 black static areas

Defog

Yes

Feature

General Alarm

Motion Detection; Mask Alarm; Alarm Input

Exceptions Alarm

Voltage Alarm; Disk Full; Disk R/W Error; IP Address Conflict; MAC Address Conflict; FTP Server Exception

Linkage Method

Send Email; Trigger Sound; Trigger Warmlight; Trigger Recording; Trigger Capture; Notify Surveillance Center; Alarm Output

Video Analytics

Human/Vehicle Classification; Tripwire; Perimeter; Video Abnormal; Audio Abnormal

Rules of Behavior Analyse In 1 Scene

8

Early Warning(EW)

Yes

Network

ANR

Yes

Protocols

HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP v1\v2\v3; DHCP; DNS; DDNS; Easy DDNS; NTP; SMTP; TLS v1.2; SSL; 802.1X; QoS; IPv4; IPv6; PPPoE; SSH; Unicast; Multicast; RTCP; ARP; RTP; SRTP; FTP; SFTP

System Compatibility

ONVIF(Profile S/T/G/M) ; SDK; CGI; Milestone; RTSP; RTMP

Remote Connection

≤7

Client

Easy7 VMS

Moblie Client

EasyLive Plus

Web

IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+

Interface

Communication Interface

1*RJ-45 (10/100 Base-T)

Audio I/O

1; 1

Alarm I/O

1-ch,TTL input,3mA,3.3VDC; 1-ch,TTL output,30mA,12VDC

Built-in Mic

Yes

Built-in Speaker

Yes

Reset Button

Yes

On-board Storage

Support microSD/microSDHC/microSDXC card,up to 512GB

RTC

Yes

General

Web Client Language

19 languages Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/French/Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian/Portuguese/Albanian

Operating Temperature

-40℃~65℃(-40℉~149℉)

Operating Humidity

≤95%RH

Storage Temperature

-40℃~65℃(-40℉~149℉)

Storage Humidity

10%~95%RH(non-condensing)

Power Supply

DC12V±25%,Max. 11W; PoE:IEEE 802.3at,Max. 12W

Protection

Surge4000V; ESD6000V; IP67

Boundary Dimensions

294(L)116(W)72(H)mm

Package Dimensions

360(L)150(W)170(H)mm

GrossWeight

1.1kg
