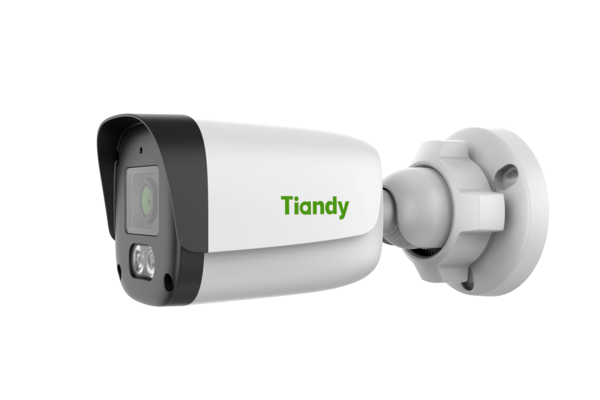

TC-C34QN - Tiandy 4MP Fixed Bullet Color Camera IP SUPERLITE TC-C34QN

TC-C34QN - Tiandy 4MP Fixed Bullet Color Camera IP SUPERLITE TC-C34QN

TC-C34QN

$155.71 NZD
$155.71 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

·Up to 2688X1520@25fps
·S+265/H.265/H.264
·Min. illumination Color: 0.02Lux@F1.6
·Smart IR, IR Range: 50m
·Built-in Mic
·Operating Conditions -30°~60°, 0~95% RH
·Support tripwire and perimeter
·POE, IP67
·2 Warm lights 15m
·Color camera

Specifications:

Camera
Image Sensor 1/2.9″CMOS
Min. Illumination Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR
Shutter Time 1s-1/100000s
Day&Night IR-cut filter with auto switch (ICR)
WDR 120dB
S/N >40dB
Angle Adjustment 0-360°;0-80°;0-360°
Lens
Lens Type Fixed
Focal Length 4mm
Aperture Range F1.6,Fixed
Field of View 83.2°(H);43°(V);93.7°(D)
DORI Distance Detect:80.0m
Observe:31.7m
Recognize:16.0m
Identify:8.0m
Illuminator
IR LEDs 2
IR Distance 50m
Wavelength 850nm
White LEDs 2
Whitelight Distance 15m
Compression Standard
Video Compression S+265/H.265/H.264B/H.264M/H.264H
Video Bit Rate 32k-6Mbps
Audio Compression G.711A/G.711U/ADPCM_D
Audio  Sampling Rate 8kHz/32kHz/48kHz
Max. Resolution 2688×1520@25fps
Third Stream N/A
BLC Yes
3D DNR Yes
White Balance Auto/Semi-auto/Manual/Sunny/Natural   light/Warm light/Sodium lamp/Incandescent lamp/Locked white balance
ROI 8 regions
Corridor mode N/A
EIS N/A
OSD 1region;16*16/32*32/48*48/64*64
Picture Overlay N/A
Privacy Mask 4 regions
Defog Yes
Feature
Alarm Trigger Motion Detection;Mask Alarm;IP   Address Conflict
Linkage Method trigger warmlight;trigger
capture
Video Analytics Tripwire;Perimeter
Rules of behavior analyse in 1 scene 2
Early Warning(EW) N/A
Auto-Tracking N/A
Face Mode N/A
Face Detection Performance N/A
Network
ANR N/A
System Compatibility P2P(Mutually exclusive with   Profile G);onvif Profile S/T;CGI;MIL STONE
Remote Connection ≤2
Client Easy7 Smart Client
Moblie Client EasyLive Plus
Web IE10+;Firefox52+;Edge89+;Safari11+;Chrome57+
Interface
Communication Interface 1 RJ45 10M/ 100M self adaptive   Ethernet port
Audio I/O N/A
Alarm I/O N/A
Built-In Mic Yes
Built-In Speaker N/A
Reset Button N/A
On-board storage N/A
Additional interfaces N/A
General
Web Client Language 19languages
Simple Chinese/Traditional   Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/French/Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian/Portuguese/Albanian
Operating Temperature -30℃-60℃
Operating Humidity 0-95%
Storage Temperature -30℃-60℃
Storage Humidity 0-95%(non-condensing)
Power Supply DC12V±25%,MAX 6.5W;POE 802.3af,MAX 7W
Protection Surge protection   2000V;Lightning proof 6000V;IP67
Boundary Dimensions 164(L)73(W)73(H)mm
Package Dimensions 180(L)90(W)95(H)mm
GrossWeight 0.3Kg
NetWeight 0.25Kg
