Tycab

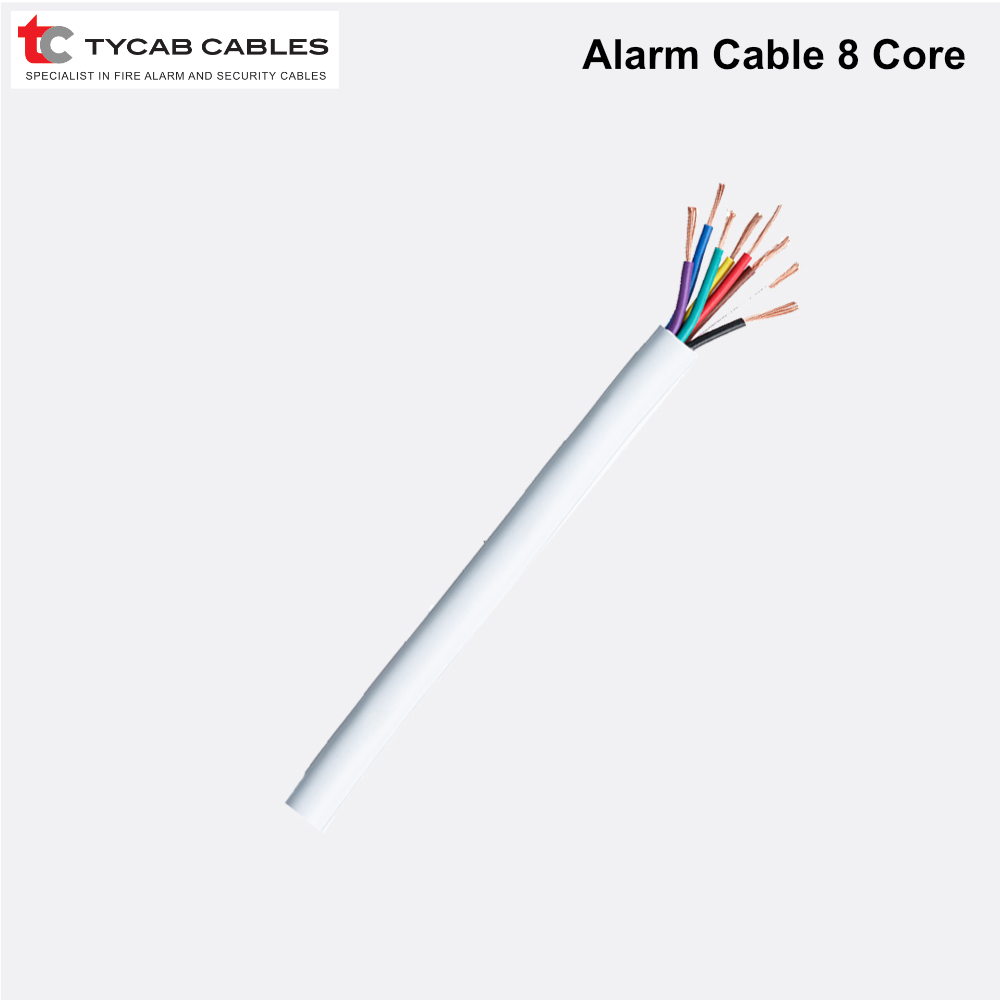

SMC81402 - Drum and Boxes - 8 Core 0.44mm - 100m or 250m - Copper or Tinned Copper

SMC81402 - Drum and Boxes - 8 Core 0.44mm - 100m or 250m - Copper or Tinned Copper

SMC81402-100

$172.50 NZD
$121.50 NZD $172.50 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Select Option

In stock
Features

Includes:

  • 8 Core 0.44mm (14/0.5mm)
  • Metre Marked

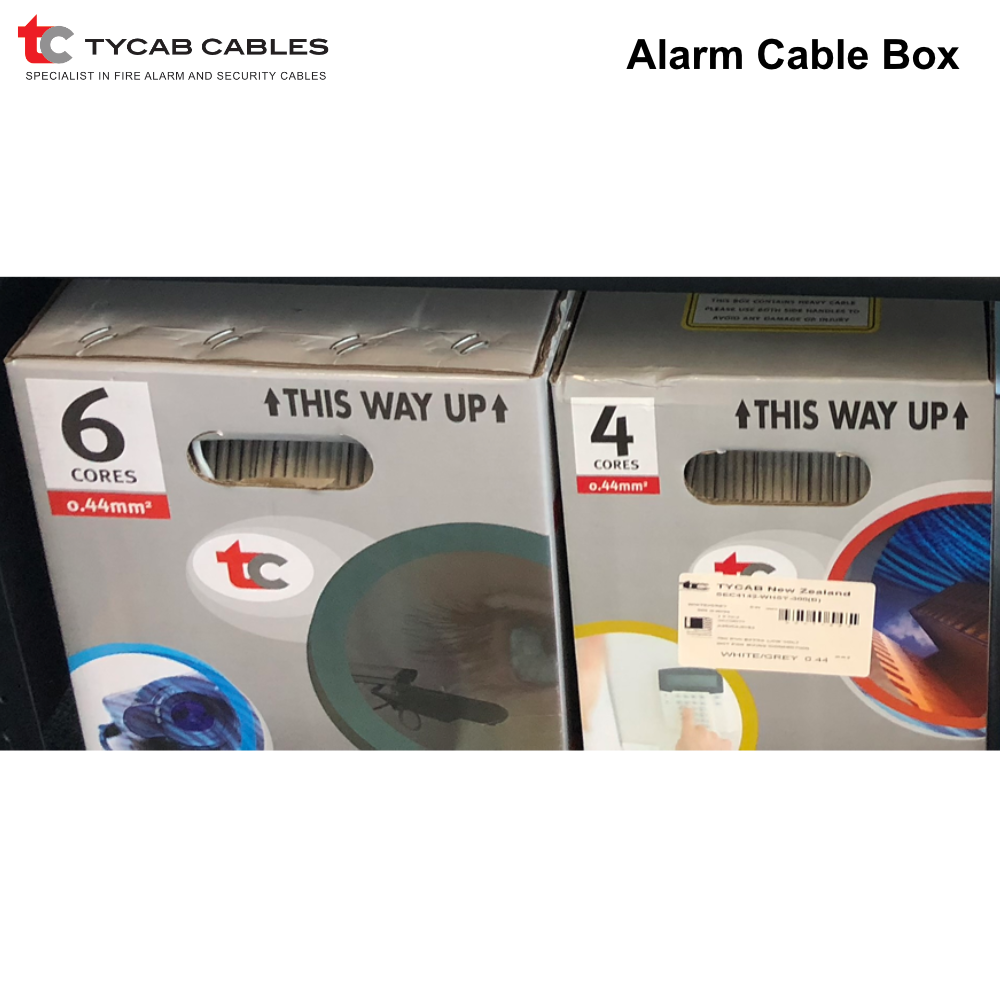

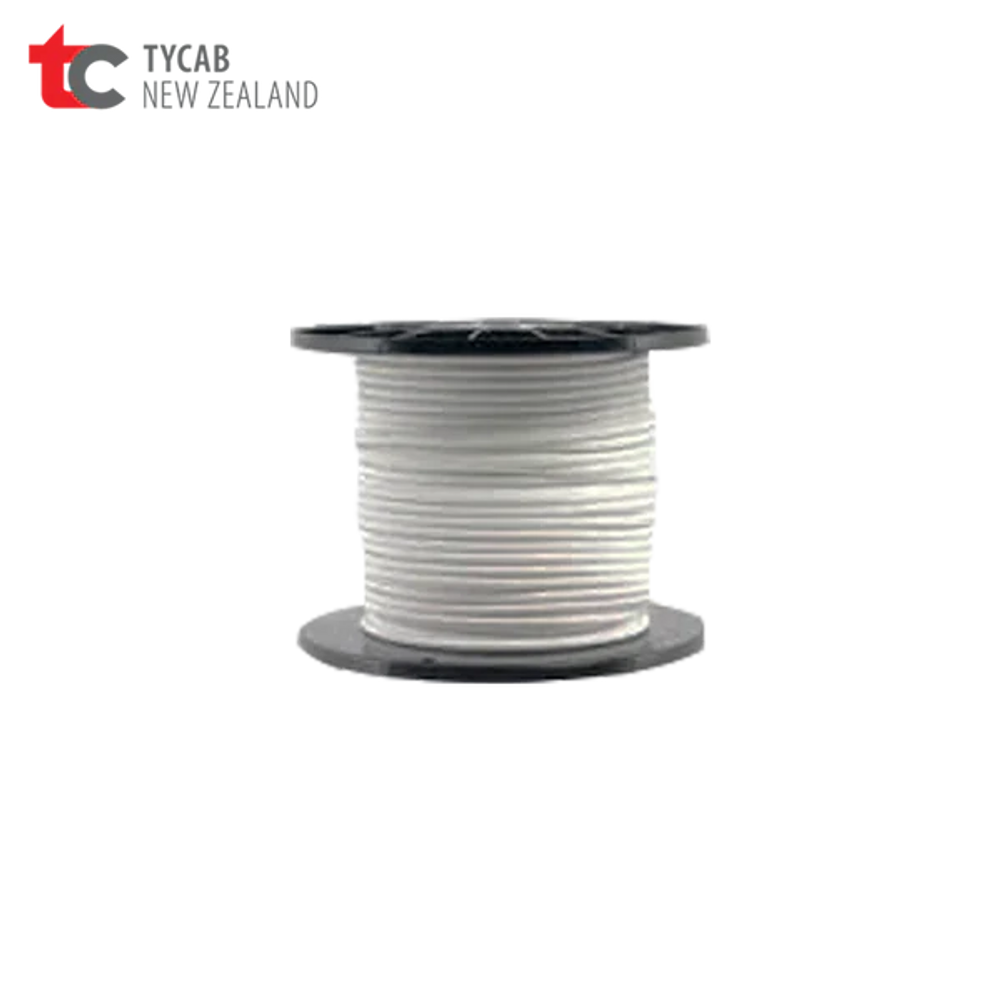

  • 100m roll or 250m Box
  • Copper or Tinned Copper Option
  • Security and Access Control Wiring (Residential and Commercial)

Please Note - Freight Free on all Tycab Alarm & Cat Cables

Specs

8 core 14/.2 PCW (0.4mmsq)
V75 insulated & V75 PVC sheathed.
Security Cable. Extra Low Voltage.
Not for mains connection.
Oxygen-Free Copper. RoHS Compliant PVC.

Construction

Conductor: 14 strands of 0.2 mm nom. Annealed Copper to AS/NZS1125 drawn from Class 102 copper to AS/NZS1574.
Max. D.C. resistance at 20C: 44.8 ohms / km.

Insulation: Coloured P.V.C to AS/NZS3808 type V75.
Nominal Diameter: 1.5 mm.
Nominal Wall Thickness: 0.3 mm.

Lay Up: 8 cores twisted.
1. Red
2. Blue
3. White
4. Black
5. Green
6. Yellow
7. Brown
8. Violet

Sheath: Coloured P.V.C. to AS/NZS3808 type 4V75.
Nominal Diameter: 6.5 mm.
Nominal Wall Thickness: 0.76 mm.
Typical ropy finish.

Identification: On sheath – TYCAB AUSTRALIA SECURITY SMC81402 CCL A93/CA/0071
