TP-Link

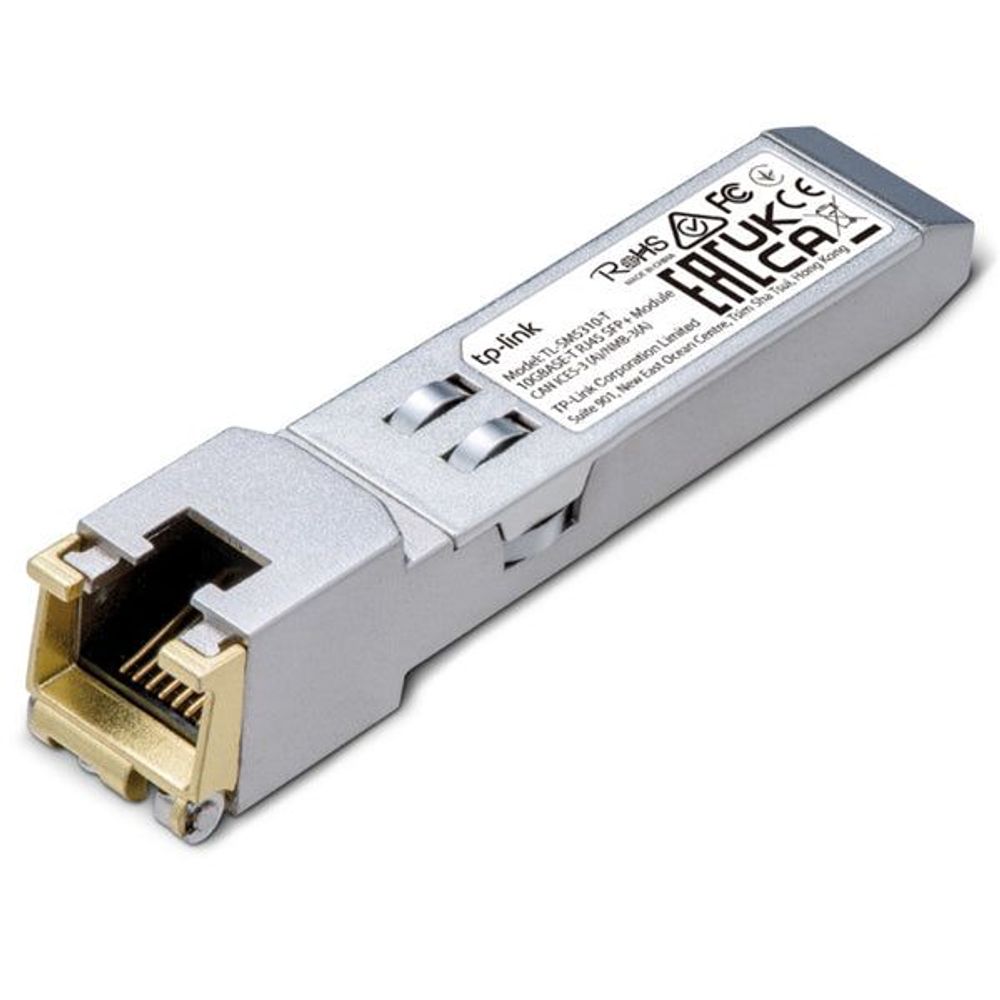

SM5310-T - TP-Link SM5310-T SFP+ Transceiver 10GBase-T RJ45

SM5310-T - TP-Link SM5310-T SFP+ Transceiver 10GBase-T RJ45

SM5310-T

$96.27 NZD
$96.27 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Out of stock
Overview TL-SM5310-T provides superior 10G performance for an easy and quick connection between your SFP+ interface and RJ45 port. It covers up to 30m* at 10 Gbps (UTP cat.6a or above). A plug-and-play design makes for easy deployment, no technician needed. High-quality metal casing ensures strength and reliability for a long time, maintaining a stable connection in a wide range of environments.

Features

  • Support 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, and 100BASE-TX
  • Transmit data up to 30m* at 10 Gbps (UTP cat.6a or above)
  • Support DDM (Temperature and Voltage)
  • Hot-Pluggable SFP+ Footprint Features
  • Support TX Disable function
  • Commercial Product Operating Temperature Range: 0-70°C
  • Fully Metallic Enclosure for Low EMI

Specifications

Package Contents 10G Base-T RJ45 SFP+ Module TL-SM5310-T Installation Guide
Hot Swappable Yes
Standards and Protocols IEEE Std 802.3, 802.3ab, 802.3bz, 82.3an
Power Supply 3.3V
Max. Cable Length 100BASE-TX: UTP cat .5 or above (max. 100m) 1000BASE-T/2.5GBASE-T/5GBASE-T: UTP cat.5e or above (max. 100m) 10GBASE-T: UTP cat.6a or above (max. 30m)
Data Rate 10.3 Gbps
Port Type 1× 10G RJ45 Port
Safety & Emission FCC, CE, RoHS
Environment Operating Temperature: 0–70 ℃ Storage Temperature: -40–85 ℃
36 Month Return to Base Warranty
