Siklu

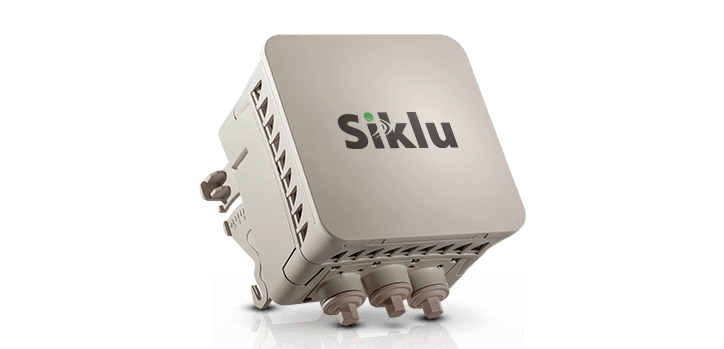

Siklu EtherHaul-710TX PoE ODU with antenna port

Siklu EtherHaul-710TX PoE ODU with antenna port

EH-710TX-ODU-EXT

$449.00 NZD
$449.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock
EtherHaul-710TX PoE ODU with antenna port; Ports: 3xcopper; Power: PoE; with 700Mbps upgradeable to 1G
Siklu EtherHaul-710TX PoE ODU with antenna port. The Siklu EtherHaul-700 wireless bridge series delivers cost-efficient, interference-free, Ethernet connectivity. Operating over the uncongested lightly-licensed E-band, the point-to-point radio link is easily deployed on any street furniture or rooftop.EtherHaul™ - 700 Series70GHz Gigabit Wireless BridgeDatasheetCopyright © 2018 Siklu Communication Ltd. All Rights Reserved

The palm-sized radio simplifies site acquisition and is quickly installed on any kind of street furniture or rooftop. The compact box solution incorporates and comes with a choice of street-level 0.5ft., 1ft. or 2ft. rooftop antennas for longer range. A GbE switch, with PoE-in and dual PoE-out. Easily cascade radios and power external devices like video surveillance cameras and Wi-Fi access points.

Note: Comes with standard capacity of 700Mbps aggregated and upgradeble to 1Gbps with license. Not for use in New Zealand.
Features
  • Video Surveillance Connectivity (CCTV)
  • Wi-Fi Hotspot Backhaul
  • Business and Residential Broadband
  • Campus Connectivity Mobile Backhaul
  • 700Mbps aggregated upgradeble to 1Gbps with license
Details
Product code EH-710TX-ODU-EXT
Frequency & Duplexing 71-76 GHz, TDD (not for use in New Zealand)
Channels 125/250/500MHz wide, 32/16/8 non-overlapping channels
Modulation & Adaptive rate Up to 5 level of hitless adaptive bandwidth, coding and modulation - boost gain by up to 25dB (18dB for EH-700TX)
Throughput [Mbps] Aggregated throughput up to 1000 Mbps
Link budget (BER=10-6) Including 0.5ft antenna gain (not applicable for FCC regulation) – 166dB, Including 1ft antenna gain – 176dB, Including 2ft antenna gain – 190dB
Interfaces 3xGbE copper ports
Ethernet features IEEE 802.1d transparent bridgingVLAN & VLAN stacking, 4K VLANsMEF 9, 14 and 21 compliant Ethernet servicesSmart Pipes Transparent Ports ModeLink aggregation: LAG and LACP (IEEE 802.3ad)Ethernet Ring Protection Switching: ITU-T G.8032 ERPSLink state propagation16KB Jumbo framesConfigurable QOS-aware forwarding8 level H-QoS with multi mapping options:L2: 802.1p, VLAN id., L2½: MPLS EXP, L3: DSCP
Timing Synchronous Ethernet and 1588v2 TC
Encryption AES 128-bit and 256-bit
Management & provisioning Zero-touch turn up; In-band, out-of-band management.Web GUI (one-click configuration of local and remote units) & Embedded CLI.SNMPv2/3, TACACS+, RADIUS.Link OAM & Connectivity Fault Management (CFM): IEEE802.3ah & IEEE802.1ag; performance monitoring: ITU-T Y.1731 (*FTL).IPERF TCP/UDP capacity tester.
Topologies Ring, daisy-chain, mesh
Conformance Radio: FCC CFR Part 101, ETSI EN 302 217-2-2; EMC: USA FCC 47CFR.part 15 & ETSI EN 301 489; Safety: UL/EN 60950
Power supply PoE+ (IEEE 802.3at), 26W without PoE-Out; up to 78W with PoE-Out
PoE-Out Port 2 and Port 3 (IEEE 802.3at): 26W + 26W, 40W + 13W or 52W + 0W
Environmental Operating Temperature: -45° to +55°C (-49° to +131°F) Ingress Protection Rating: IP67
Dimensions ODU + 0.5ft antenna: 6” x 6.5” x 3.5” (16.5 x 16.5 x 10cm), ODU + 1ft antenna (Dia. x Depth): 12.2” x 4.3” (31 x 13 cm)
Details
Pole Mount Not included, see below
Included Entry glands and Earth wire
