Siklu

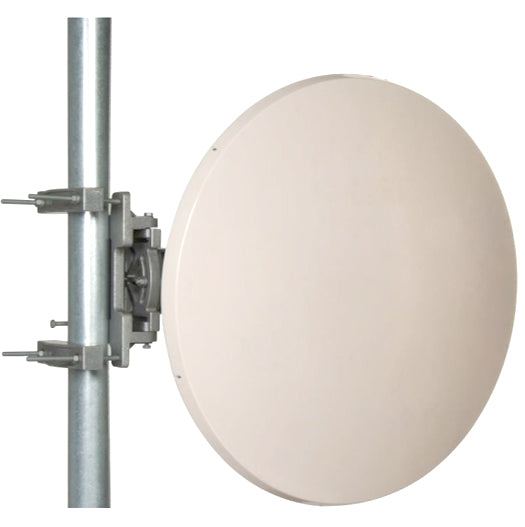

Siklu EtherHaul 2ft dual-band antenna (E-Band Plus 5GHz)

Siklu EtherHaul 2ft dual-band antenna (E-Band Plus 5GHz)

EH-ANT-2ft-DL5

$875.00 NZD
$875.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Siklu EtherHaul 2 ft. antenna 70/80 & 5GHz (FCC/ETSI) and mounting kit, with X adaptor
Siklu EtherHaul 2 ft. antenna mmWave 70/80 & 5GHz (FCC/ETSI) and mounting kit, with X adaptor.

EtherHaul™ E-band ODUs support a variety of antennas depending on the intended application, from street level to roof top, from short to long reach.

Features
  • Compatible with EH-1200T/TX, EH-1200F/FX, EH-2200F/FX, EH-2500F/FX, EH-5500FD, EH-8010FX
Details
Product Code EH-ANT-2ft-DL5
Compatibility EH-1200T/TX, EH-1200F/FX, EH-2200F/FX, EH-2500F/FX, EH-5500FD, EH-8010FX
Frequency Range 71 – 86 GHz plus 5.15 – 5.9 GHz
Regulatory Compliance ETSI: EN 302 217-4-2 V1.5.1 Class 3, FCC: 47CFR101, ETSI EN 302 217 Range 1 Class 2
Gain 70/80GHz 49dBi +/- 2dB, 5GHz 26dBi +/- 2dB
3dB Beam 70/80GHz 0.5°, 5GHz 6.5°
Polarization 70/80GHz: Linear Vertical / Horizontal, 5GHz: Dual polarized (V & H)
Cross-pol. Discrimination - 30dB
Front/Back Ratio ? 47dB
Input power W (max)
Interface Circular waveguide E-Band, 5GHz 2x 50cm cables, with RP-SMA male connectors
Weight 10.8Kg (23.8 lbs.)
Radome ABS
Window Survival 220Km/h
Details
Mounting Brackets Included
