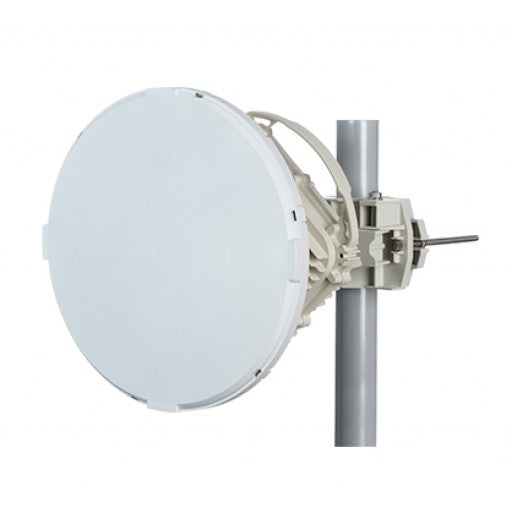

Siklu EtherHaul 1 foot Dish Antenna (FCC/ETSI) with ring adaptor

Siklu EtherHaul 1 foot Dish Antenna (FCC/ETSI) with ring adaptor

EH-ANT-1ft-B

$295.00 NZD
$295.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock
Siklu EtherHaul 1 foot 70/80GHz 43dBi Dish Antenna (FCC/ETSI) with ring adaptor
Siklu EtherHaul 1 foot 70/80GHz 43dBi mmWave dish antenna (FCC/ETSI) with ring adaptor.

Siklu EtherHaul™ E-band ODUs support a variety of antennas depending on the intended application, from street level to roof top, from short to long reach. This document starts with the compatibility between ODUs and antennas, continues with the specifications and closes with the illustrations of the antennas.

Note: Mounting kit EH-MK-1ft purchased separately.
Features
  • supports Siklu ODU’s EH-1200T/TX, EH-1200F/FX, EH-2200F/FX, EH-2500F/FX, EH-5500FD, EH-8010FX
  • Requires Mounting kit: AX-MK-1ft-B (or EH-MK-1ft)
Details
Product Code EH-ANT-1ft-B
Compatibility EH-1200T/TX, EH-1200F/FX, EH-2200F/FX, EH-2500F/FX, EH-5500FD, EH-8010FX
Frequency Range 71 – 86 GHz
Regulatory Compliance ETSI: EN 302 217-4-2 V1.5.1, Class 2, FCC: 47CFR101
Gain 43 dBi +/- 2dB
3 dB Beamwidth 0.9 degree
Polarization Linear Vertical / Horizontal
Input power 10 W (max)
Interface Circular waveguide E-band
Weight 2.2Kg (4.8 lbs.)
Radome Plastic
Water Tightness IP67
Temperature range -55deg to +71deg C
Wind Speed Survival 220km/h
Details
Mounting Kit Not included: use EH-MK-1ft
