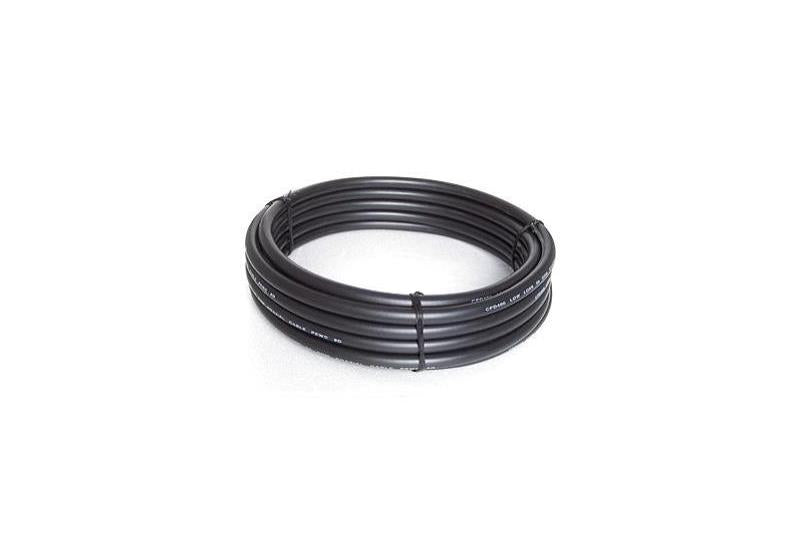

• Shireen Inc RFC240 Cable 50 Ohm Coax Cable Per Metre
1 1

Shireen

Shireen Inc RFC240 Cable 50 Ohm Coax Cable Per Metre

Shireen Inc RFC240 Cable 50 Ohm Coax Cable Per Metre

RFC240m

$6.50 NZD
$6.50 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Shireen Inc RFC240 Cable 50 Ohm Coax Cable Per Metre
Shireen Inc RFC240 Cable 50 Ohm Coax Cable Per Metre. Shireen’s latest RFC 240 low loss cables that offer excellent characteristics that meet or exceed the specs of alternatives from Times Microwave, Commscope, Andrew and Belden
Features
  • Applications include: Mobile Antennas, GPS, WLL, WLAN, LMR, WISP, SCADA, WiMax.
Details
Manufacturer's Product Code RFC240-1000
Impedance 50 Ohm
Outer Jacket Dia (+/-0.10mm) 6.10
Centre Conductor Dia.(+/-0.02mm) 1.42
Insulation Dia.(+/-0.10mm) 3.81
Peak Power rating 5.60 Kw
Dielectric Strength 1600 VAC
Voltage Withstand 1500 VDC
Max. Pulling Tension 372 N
Min. Bending Radius 19.1 mm
Admissible Ambient Temperature -40 to +85 degC
