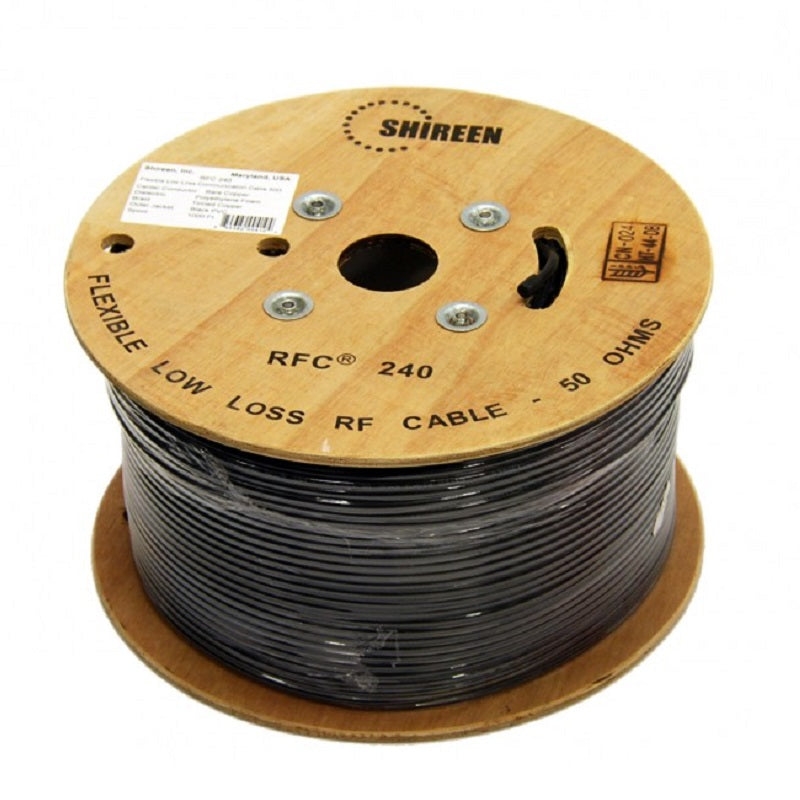

Shireen Inc RFC240 Cable 1000ft. Spool 50 Ohm Coax Cable Drum
Shireen Inc RFC240 Cable 1000ft. Spool 50 Ohm Coax Cable Drum
SKU:RFC240-1000
Regular price
$1,123.00 NZD
Regular price
Sale price
$1,123.00 NZD
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
In stock
Quantity
Couldn't load pickup availability
Shireen Inc RFC400 Cable 1000ft Spool 50 Ohm Coax Cable
Shireen Inc RFC240 Cable 1000ft. Spool 50 Ohm Coax Cable Drum. Shireen’s latest RFC 240 low loss cables that offer excellent characteristics that meet or exceed the specs of alternatives from Times Microwave, Commscope, Andrew and Belden.
Features
- Applications include: Mobile Antennas, GPS, WLL, WLAN, LMR, WISP, SCADA, WiMax.
| Details | |
|---|---|
| Manufacturer's Product Code | RFC240-1000 |
| Impedance | 50 Ohm |
| Outer Jacket Dia (+/-0.10mm) | 6.10 |
| Centre Conductor Dia.(+/-0.02mm) | 1.42 |
| Insulation Dia.(+/-0.10mm) | 3.81 |
| Peak Power rating | 5.60 Kw |
| Dielectric Strength | 1600 VAC |
| Voltage Withstand | 1500 VDC |
| Max. Pulling Tension | 372 N |
| Min. Bending Radius | 19.1 mm |
| Admissible Ambient Temperature | -40 to +85 degC |
| Details | |
|---|---|
