• Shenglu 0.9m 5.25-5.85GHz High Performance Dish Antenna
1 1

Shenglu

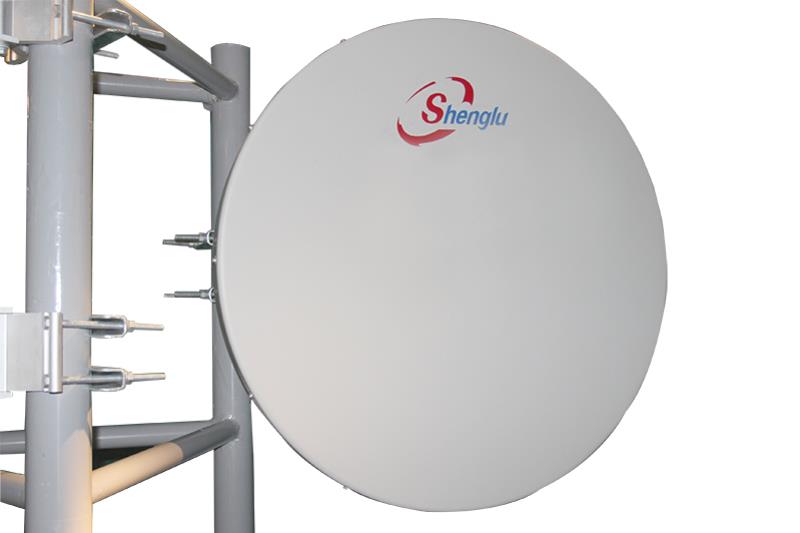

Shenglu 0.9m 5.25-5.85GHz High Performance Dish Antenna

Shenglu 0.9m 5.25-5.85GHz High Performance Dish Antenna

SLG0952SS27N

$1,096.00 NZD
$1,096.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock
Shenglu 0.9m 5.25-5.85GHz Ultra High Performance Low Profile Dual Polarised Antenna
Shenglu 0.9m Ultra High Performance Low Profile Dual Polarised 5.25-5.85GHz Antenna suitable for high end Point to Point backhaul applications.

Due to the size of these items they are excluded from our free freight option. Freight will be added to all invoices once confirmed and amount will depend on your location.
Details
Manufacturer's Product Code SLG0952SS27N (SLA0905D3S37N20)
Frequency Range 5.25 - 5.85GHz
Gain, Top 31.4 dBi
Gain, Mid 30.9 dBi
Gain, Low 30.5 dBi
Front-to-Back Ratio 52 dB
Cross Polarization Discrimination (XPD) 30 dB
Beamwidth 4.1 °
Isolation 35 dB
VSWR 1.5
Return Loss 14 dB
Regulatory Compliance ETSI EN 302 217 Range 1 Class 2
Antenna Type Ultra High Performance Low Profile Antenna, Dual-Polarized Antenna
Diameter, nominal 0.9m / 3ft
Polarization Dual
Reflector Construction One-piece reflector
Antenna connector N-female
Antenna Colour RAL7035
Radome Colour RAL7047
Radome Material ABS
Wind Velocity Operational 162km/h
Wind Velocity Survival Rating 250km/h
Fine Azimuth Adjustment Coarse 360° Fine ±15°
Fine Elevation Adjustment Fine ±20°
Mounting Pipe Diameter 114 mm
Ice-load 25.4 mm
Operational Temperature -45 to +75 ?
Net Weight 24.9kg
Details
Pole Mount Included
Side Struts Included 1
Radome Cover Included
