Shuttle

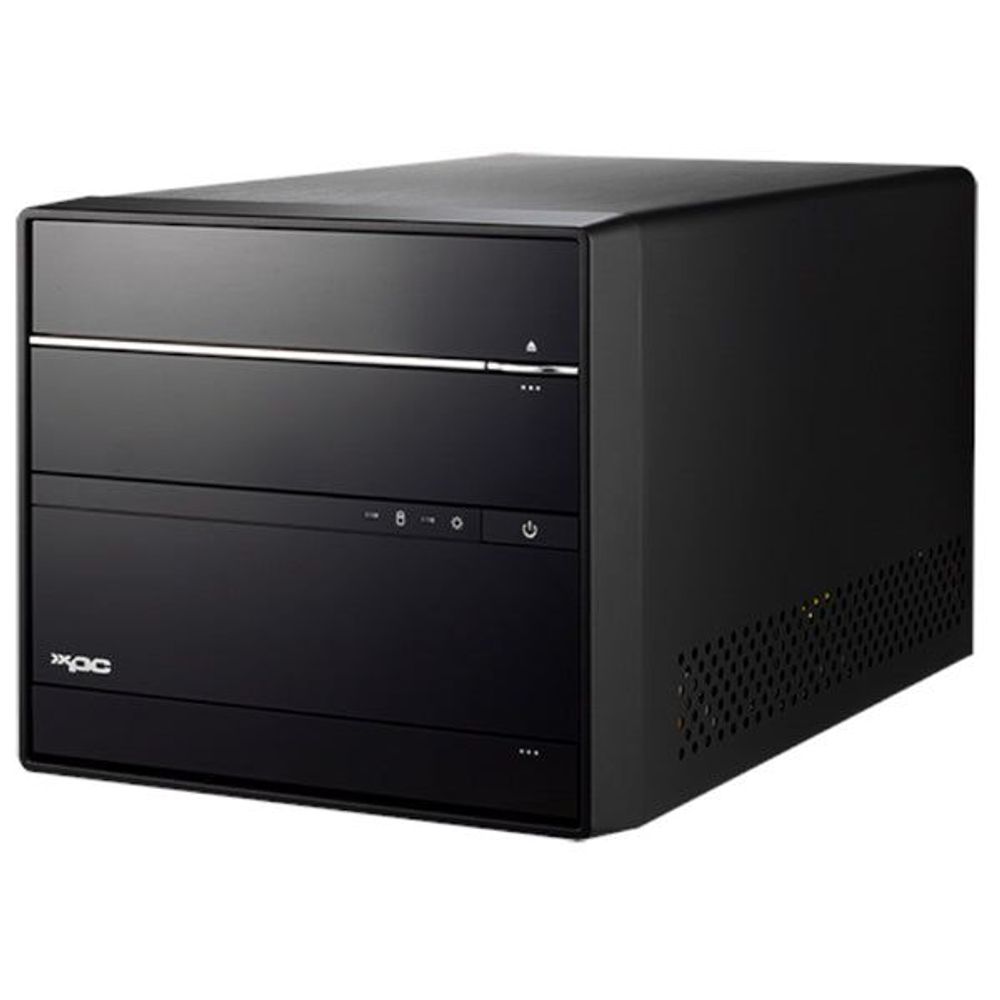

SH570R6 - Shuttle SH570R6 LGA1200 DDR4 Cube Barebones PC

SH570R6 - Shuttle SH570R6 LGA1200 DDR4 Cube Barebones PC

SH570R6

$1,256.00 NZD
$1,256.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Out of stock
Overview The Shuttle XPC Barebone SH570R6 shows how discreet a modern PC can look and at the same time how powerful it can be. Its black-brushed aluminium case has barely a volume of 14 litres, but packs everything you need for a high-performance workstation for example. This includes the power of 10th/11th gen. Intel Core processors ("Comet Lake-S" and "Rocket Lake-S"), a dual-slot graphics card, fast M.2 NVMe SSD drives, two 3.5'' hard drives in RAID and up to 128 GB of DDR4 memory, plus a Blu-ray drive. Even without a dedicated graphics card, up to three UHD displays are supported (if not an F-type CPU is used).

Features

  • SH570R6
  • Intel LGA1200 H570
  • 4x DDR4-2666 DIMM (128GB Max)
  • 2x Displayport, 1x HDMI
  • 300W PSU
  • 2x 3.5" HDD

Specifications

Processor Intel H570 Chipset/ Support 10th/11th Gen CPUs
Memory 4x DDR4 DIMM (128GB max)
Storage Interface 1x 3.5" SATA3 Device Bay
Expansion Slot 1x PCI-Express X16 expansion slot 1x PCI-Express X4 expansion slot
Audio 5x Audio I/O (2x front, 3x rear)
Ethernet Dual LAN 1x Intel i210AT 1x Intel i219LM
Back Panel 1x HDMI 2.0b (HDMI 1.4b with Gen. 10 "Comet Lake" processor) 2x DisplayPort 1.4 [2] 4x USB 3.2 Gen 2 (10 Gbps), Type A, red 4x USB 2.0 (Type A, black) 2x Gigabit LAN (RJ45) Audio Line-out (3.5 mm) Audio Line-in (3.5 mm) Microphone Input (3.5 mm)
Dimensions (mm) 332 x 215 x 190mm (LWH)
36 Month Return to Base Warranty
