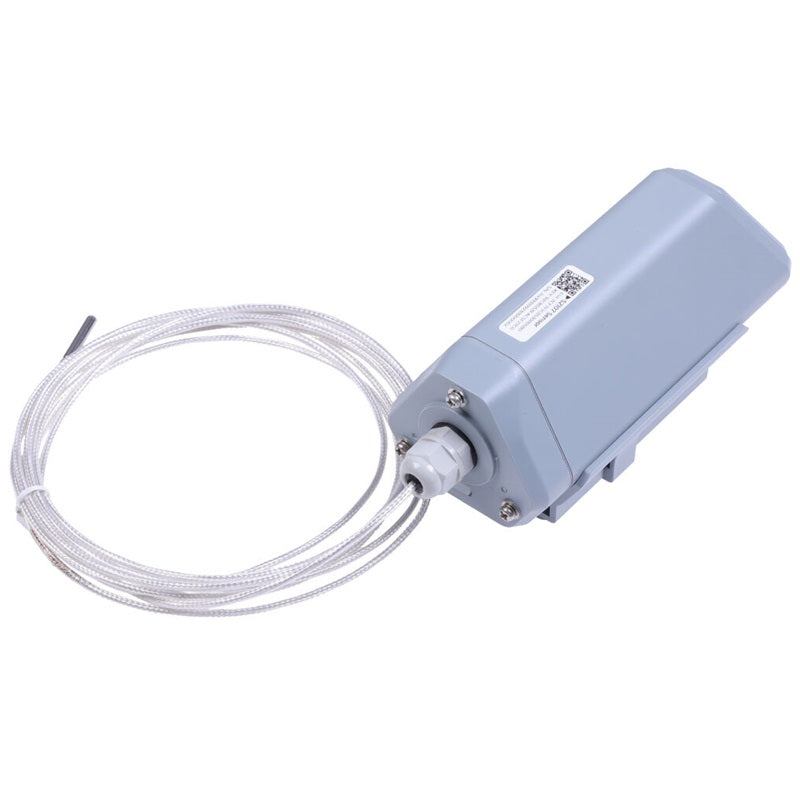

SenseCAP S2107 LoRaWAN AS923 Temperature Sensor with PT1000

SenseCAP S2107 LoRaWAN AS923 Temperature Sensor with PT1000

SC-S2107

$165.00 NZD
$165.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock
The SenseCAP S2107 is a battery-powered IP66 wireless PT1000 temperature sensor, range from -50 to 300°C
SenseCAP LoRaWAN AS923 S2107 temperature Sensor measures temperature at the range of -50°C to 300°C. A highly accurate temperature sensor PT1000 that can support temperature detection in wide temperature ranges and industrial scenarios.

Pt1000 sensors (1000 ohm temperature sensors) are the most common type of platinum resistance thermometer. The S2107 supports a three-wire circuit for PT1000 sensors and allows for the connection of up to three sensors simultaneously.

Direct contact temperature is an important indicator in many scenarios, especially in liquid detection, food monitoring, storage cold chain, industrial boilers, and aquaculture solutions. The S2107 is specifically optimized for OTA with built-in Bluetooth, which enables quick setup and update. Benefiting from LoRa and IP66 design, this sensor features stability and reliability and can cover a long transmission range while keeping lower power consumption. Unlike wireline devices, it is battery-powered, reducing the workload and complexity of the deployment, and can be disassembled and installed in a few minutes.



. .

Features
  • Designed to Use in Harsh Environments: -40? ~ 85? operating temperature(LoRa DTU) and IP66-rated enclosure, the PT1000 probe can detect -50~300?, suitable for outdoor use, high UV exposure, heavy rain, dusty conditions, etc.
  • Compatible with Worldwide LoRaWAN Networks: Compatible with different types of
  • Long Range & Battery powered: Ultra-wide-transmission range of 2km in urban scenes and 10km in line of sight scenes. Powered by easily replaceable standard Li-SOCl2 battery (type: ER34615) with Max.10 years of battery life.
  • Simple Configuration and Calibration: SenseCAP provides a no-code experience that enables users to finish configuration and calibration through SenseCAP Mate APP.
Details
Product Model SC-S2107 (114993078)
Range -50 to 300 ? (Other range customization contact sales)
Accuracy ±0.5?
Resolution 0.1?
Microcontroller Wio-E5
support Protocol LoRaWAN v1.0.3 Class A
Built-in Bluetooth App Tool to change parameters
LoRaWAN Channel Plan AS923 (AS923_1, AS923_2, AS923_3, AS923_4)
Max Transmitted Power 19dBm
Sensitivity -136dBm@SF12 BW=125KHz
Communication Distance 2 to 10 km (depending on gateway antenna and environments
IP Rating IP66
Operating Temperature -40 to +85 °C (LoRa DTU);-50 to 200?(Cable); -50 to 300? (Probe)
Operating Humidity 0 to 100 %RH (non-condensing)
Device Weight 360g
Cable Length 3 meters
Battery Life Up to 10 years** The battery life varies from data upload interval and distance between gateway
Battery Capacity 19Ah (non-rechargeable)
Battery Type Standard D-size SOCl2 Battery
Certi?cation CE / FCC / RoHS / TELEC
Details
Package Includes Sensor Node, Mounting Bracket, Quick Start Guide, KA4*20mm Self-drilling Screw
