Seeed Technology

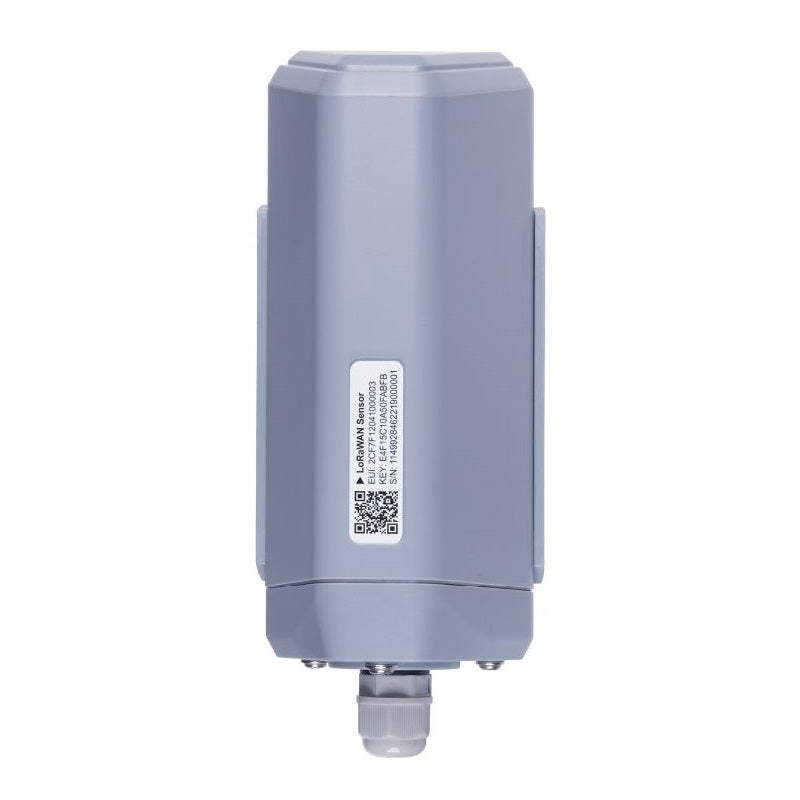

SenseCAP S2100 LoRaWAN Data Logger/DTU, Supports RS485/Analog/GPIO Interfaces, LoRaWAN Converter
SenseCAP S2100 LoRaWAN Data Logger/DTU, Supports RS485/Analog/GPIO Interfaces, LoRaWAN Converter
SKU:S2100
Regular price
$145.00 NZD
Regular price
Sale price
$145.00 NZD
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
Low stock
Quantity
Couldn't load pickup availability
SenseCAP S2100 LoRaWAN Data Logger/DTU, Supports RS485/Analog/GPIO Interfaces, LoRaWAN Converter
SenseCAP S2100 - LoRaWAN Data Logger/DTU, supports RS485/Analog/GPIO Interfaces, LoRaWAN Converter.
A battery-powered IP66 wireless data logger/ DTU supports RS485/Analog/GPIO sensors, equipped with built-in Bluetooth and APP service for OTA configuration and remote device management.
SenseCAP S2100 Data Logger/DTU can connect to MODBUS-RTU RS485/Analog/GPIO sensors and transmit data from sensors to the LoRaWAN network. Benefits from LoRa and IP66 design, this device features stability and reliability and can cover a long transmission range while keeping ultra-low power consumption, ideal for outdoor use. It is specifically optimized for OTA with built-in Bluetooth, which enables quick setup and update. It can be battery-powered or connected to a 12V external power supply. When the 12V power supply is connected, the replaceable built-in battery is set to be used as the backup power supply. What's more, with the help of S2110 converter, S2100 Data Logger/DTU is able to connect to Grove Sensor, it is an ideal solution for developing, fast prototyping, and small deployment for DIY Industrial level LoRaWAN Sensors.
. .
A battery-powered IP66 wireless data logger/ DTU supports RS485/Analog/GPIO sensors, equipped with built-in Bluetooth and APP service for OTA configuration and remote device management.
SenseCAP S2100 Data Logger/DTU can connect to MODBUS-RTU RS485/Analog/GPIO sensors and transmit data from sensors to the LoRaWAN network. Benefits from LoRa and IP66 design, this device features stability and reliability and can cover a long transmission range while keeping ultra-low power consumption, ideal for outdoor use. It is specifically optimized for OTA with built-in Bluetooth, which enables quick setup and update. It can be battery-powered or connected to a 12V external power supply. When the 12V power supply is connected, the replaceable built-in battery is set to be used as the backup power supply. What's more, with the help of S2110 converter, S2100 Data Logger/DTU is able to connect to Grove Sensor, it is an ideal solution for developing, fast prototyping, and small deployment for DIY Industrial level LoRaWAN Sensors.
. .
Features
- Strong Compatibility with different Sensors: supports all MODBUS-RTU S485/Analog(4~20mA/0~10V) / GPIO(level/pulse) sensors
- Compatible with Worldwide LoRaWAN Networks with LoRaWAN V1.0.3 protocol and can work with LoRaWAN gateway (support the universal frequency plan from 863MHz ~928MHz)
- Long Range & replaceable Battery powered wireless transmission, S2100 supports 19Ah built-in battery and external 12V DC to supply devices, and ultra-wide-transmission range of 2km in urban scenes and 10km in line of sight scenes
- Designed to Use in Harsh Environments: -40? ~ 85? operating temperature and IP66 rated enclosure, suitable for outdoor use, high UV exposure, heavy rain, dusty conditions
| Details | |
|---|---|
| Product Model | SenseCAP S2100 (114992872) |
| Microcontroller | Wio-E5 |
| support Protocol | LoRaWAN v1.0.3 Class A |
| Current Input | 4 to 20 mA (2 channel) |
| Voltage Input | 0 to 10V (2 channel) |
| RS485 | RS485 Modbus-RTU Protocol |
| Built-in Bluetooth | App Tool to change parameters and set data conversion algorithm |
| Long-Range Channel Plan | IN865/EU868/US915/AU915/ AS923 (Every single device can support 7 frequency plans) |
| Max Transmitted Power | 19dBm |
| Sensitivity | -136dBm@SF12 BW=125KHz |
| Communication Distance | 2 to 10km (depending on and environment) |
| IP Rating | IP66 |
| Operating Temperature | -40 to +85 °C |
| Operating Humidity | 0 to 100 %RH (non-condensing) |
| Device Weight | 280g |
| Certification | CE / FCC / RoHS |
| Battery Life | Up to 10 years** |
| Battery Capacity | 19Ah (non-rechargeable) |
| Battery Type | Standard D-size SOCl2 Battery |
| Details | |
|---|---|
| Package Includes | Sensor Node, 2 x Bracket, Quick Start Guide, KA4*20mm Self-drilling Screw |
