Seeed Technology

Seeed LoRaWAN IoT Field Tester Kit Plug and Play LongFi Network Monitor for Helium Network

Seeed LoRaWAN IoT Field Tester Kit Plug and Play LongFi Network Monitor for Helium Network

114992777

$192.00 NZD
$192.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Seeed LoRaWAN Field Tester Kit: Plug and Play LongFi Network Monitor for Helium Network

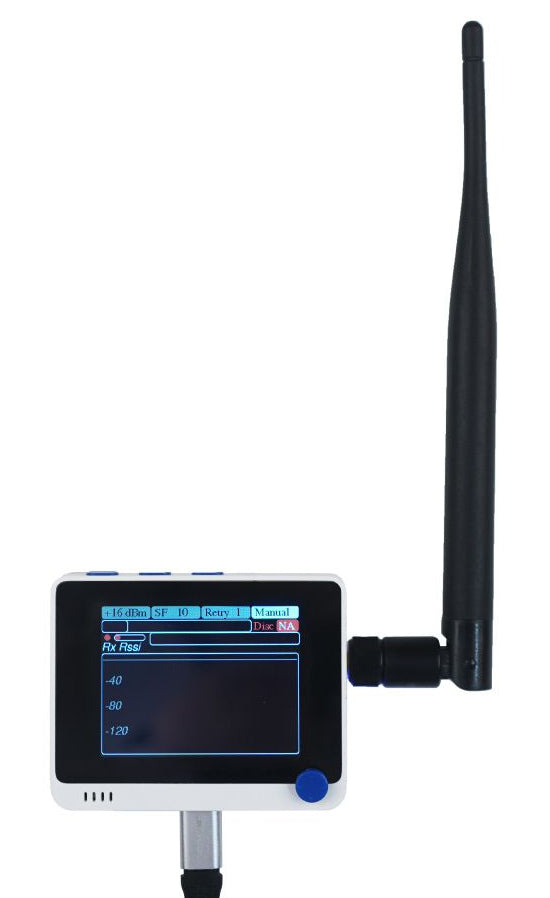

This Wio LoRaWAN FieldTester is a plug-and-play and all-in-one LongFi network monitor for the Helium network. It will help you know how many IoT Hotspots around can be touched for a given position, enrich the network mappers to know each other and share the real network coverage.

Please note that these are not battery powered. You will need a portable battery bank to operate these in the field.

Setup Documentation can be found here



. .

Features
  • Ready to go Wio Terminal LoRaWAN Field Tester. No setup, just power it on! The included communication allows a normal use for 3 to 5 years.
  • Compact size, support Type C power bank charge to bring the device everywhere.
  • Monitor the LongFi network performance from the field to verify the coverage and know the different Gateways / Hotspots covering a given spot
  • Find the best places to deploy new Gateways / Hotspots.
  • Directly display network and GPS information on the Wio Terminal screen
Details
Core Processor ARM® Cortex®-M4F running at 120MHz
Memory 4 MB External Flash, 192 KB RAM
External Flash 4MBytes
Operating Temperature -40°C ~ 85°C (TA)
LCD Screen Resolution 320x240
Display Size 2.4inch
Wi-Fi 802.11 a/b/g/n 1x1, Dual Band 2.4GHz & 5GHz
Bluetooth support BLE5.0
Built-in Modules Accelerometer, Microphone, Speaker, Light Sensor, Infrared Emitter
MicroSD Card Slot Maximum 16GB
Dimension 72mm*57mm*12mm
Materials ABS+PC
Frequency AU915/AS923
Protocol LoRaWAN
Sensitivity -116.5dBm ~ -136dBm
Details
Contains Field Test device, USB Type C cable, Antenna
View full details
