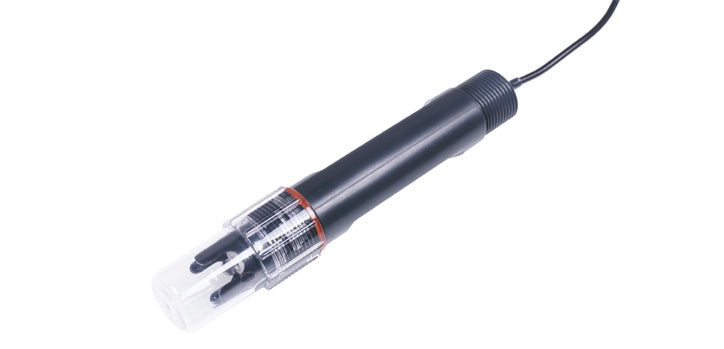

Seeed Industrial RS485/Modbus bare wire pH IoT Sensor
The Seeed studio industrial-grade IoT MODBUS-RTU RS485 pH meter/sensor features ATC, low-power-consumption and high integration. It can be widely used in monitoring pH levels in soil and water applications such as agriculture, gardening, horticulture, swimming pools, scientific experiments, and other environmental monitoring scenarios. Comes with bare wire connectors to add to any Modbus/RS485 IoT deployment.

This pH IoT sensor (S-pH-01A) is designed with industry standards. It adopts international advanced solid dielectric and large-area polytetrafluoroethylene liquid junction, which is not easy to block and convenient for maintenance. It's designed with ATC (automatic temperature compensation), making sure the data is accurate regardless of the temperature changes. This pH Sensor is IP65 rated, waterproof in a tight seal, capable of withstanding long-term constant use in professional application scenarios.



. .

Features
  • High performance: high accuracy, fast response, good repeatability
  • Universal protocol: MODBUS RS-485 or 0-2
  • Wide-range power supply: 3.6V ~ 30V
  • Robust - suitable to be immersed in soil or water for a long time
  • Maintenance-Free - advanced junction design, no clogging
  • Durable - anti-corrosion, automatic temperature compensation
  • User-friendly - Easy to install and integrate
Details
Product Code PH-RS485 / 101990666
pH Range 0 ~ 14pH
Accuracy ± 0.1 pH
Resolution 0.01 pH
Manufacturers Code S-pH-01A
Output Interface Analog Voltage 0-2V (Output resistance ~0ohm), RS-485 MODBUS-RTU
Power Supply 3.9-30V/DC
Power Consumption 35mA@24V DC, 35mA@24V DC
Start-up time < 2 seconds
Range 0 - 14PH
Resolution 0.01PH,
Accuracy +/- 0.1PH;
Temperature Range - 40~80°C,
Resolution 0.1°C,
Accuracy +/-0.5°C
IP Rating Electrode: IP68, Transmitter: IP65
Operating Temperature -40? ~ 85?
Cable Length Power and Signal Cable:2 meters (Customizable), Electrode Cable: 5 meters
Dimension Electrode: Width*Diameter 160*30mm; 3/4"NPT screw threads, Transmitter: 140mm*65mm*50mm
