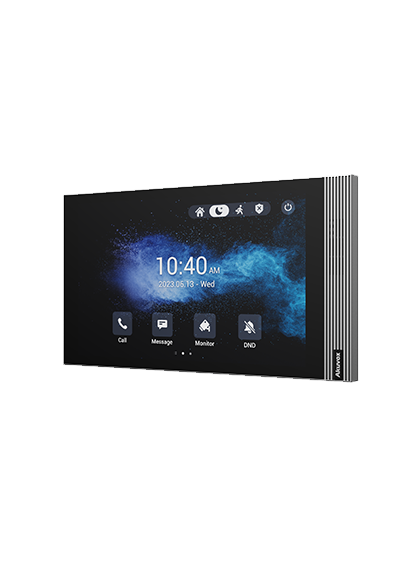

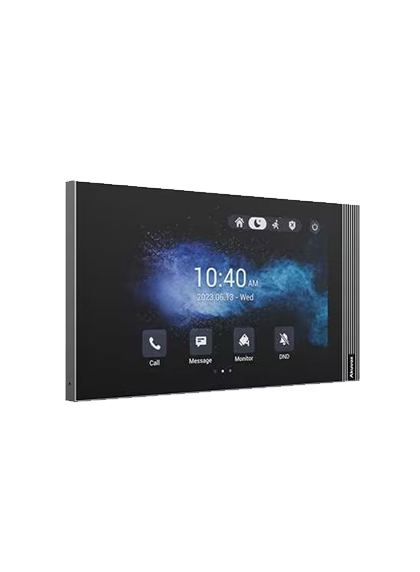

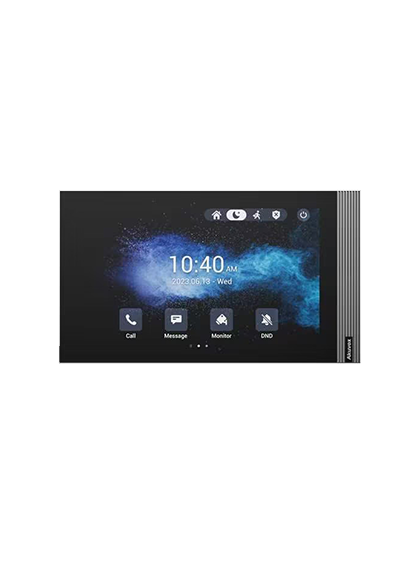

S563W - Akuvox SIP Indoor Monitor(Android 12 Version) 8 inch

S563

8-Inch SIP Premium Indoor Monitor

The Akuvox S563 is an 8-inch SIP indoor monitor that runs on the Android 12 operating system. It features an exceptional speaker and a high-resolution touchscreen display, ensuring an unparalleled audio-visual intercom experience.

• Ordering Info

Product Image	Part No.	Description
	S563	Standard Version
	S563W	Standard Version+Wi-Fi 6 and Bluetooth

Specs

S563 Specification

• Physical & Power

  Speaker: one speaker, 4Ω / 2W

  Ethernet Ports: 2xRJ45, 10/100Mbps adaptive 802.3af

  Power-over-Ethernet 12V DC Connector (if not using PoE)

  Tamper Resistant: Support

  Installation: Wall-mounted & Desktop

  Dimension: 216.2x124.4x22.1 mm

  Working Humidity: 10~90%

  Working Temperature: -10°C ~ +45°C

  Storage Temperature: -20°C ~ +70°C

• Touch Screen Display

  Display Mode: Normally black, Transmissive

  LCD Size: 8 inch (Diagonal)

  Aspect Ratio: 16:10

  Resolution: 1280x800

  Contrast ratio: 1200:1

  Luminance: 310 cd/m²

  Viewing Angle: 80° Left, 80° Right, 80° Upper, 80°

  LowerTouch Screen: Projected capacitive

• Audio

  SIP v1 (RFC2543), SIP v2 (RFC3261)

  Narrowband audio codec: G.711a, G.711μ, G.729

  Broadband audio codec: G.722

  DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info

  Echo Cancellation

  Voice Activation Detection

  Comfort Noise Generator

  Automatic Gain Control

• Video

  Streaming formats: H.263 & H.264

• Networking

  Protocols support: IPv4, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP

• Deployment & Maintenance

  Auto-Provisioning

  Web management portal

  Web-based packet dump

  Configuration backup / restore

  Firmware upgrade

  System logs (including door access logs)

• Voice Assistant

  Voice pickup distance up to 5 meters

  Voice recognition accuracy up to 95%

  Privacy protection with native voice data

  Support English

• Application Scenario

  Villas

  Apartment complexes

  Home automation systems

  Modern interiors
