S565

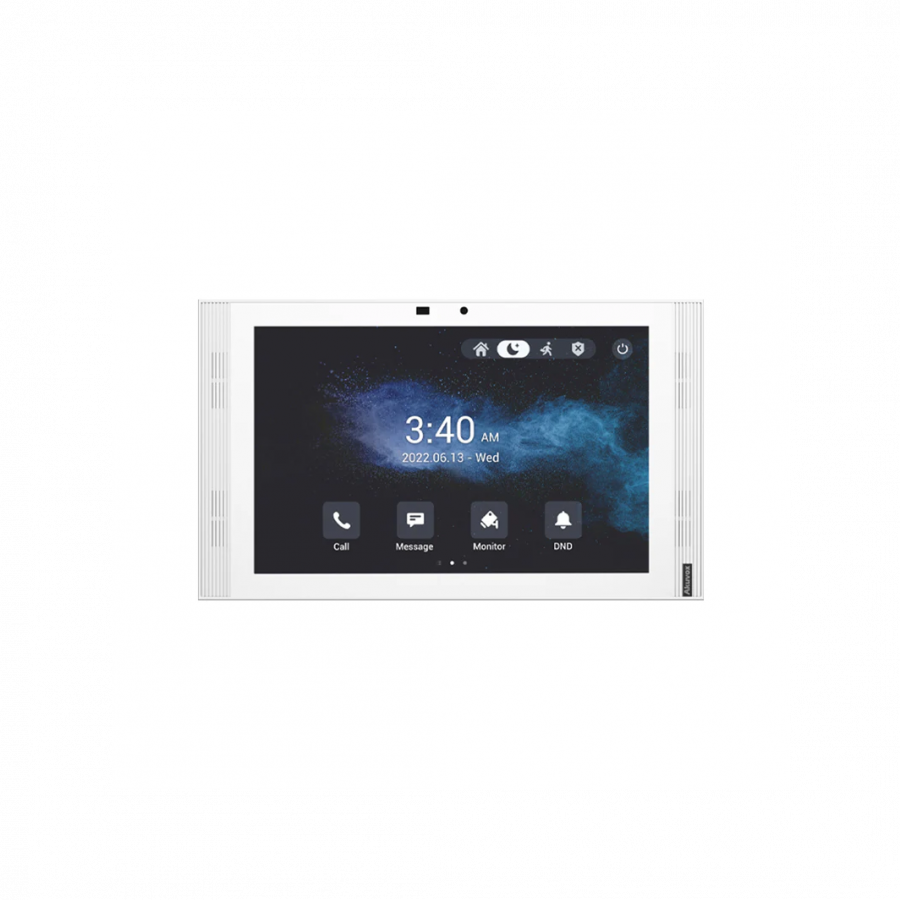

10-Inch Linux SIP Video Indoor Monitor

The Akuvox S565 is a 10-inch SIP video indoor monitor that runs on the Linux OS. It features a stylish industrial design and a high-resolution touchscreen display, supporting high-quality video & audio communication and is suitable for mid-range housing markets.



Product Image	Part No.	Description
	S565	Standard Version
	S565W	Standard Version +Wi-Fi 6

Specs

S565 Specification

• Physical & Power

  Microphone: Dual microphones

  Speaker: One speaker

  Ethernet Ports: 2xRJ45,10/100Mbps adaptive

  POE: 802.3af Power-over-Ethernet

  Power: 12V DC Connector

  Installation: Wall-mounted & Desktop

  Dimension: 278x164x22.8 mm

  Working Humidity: 10~90%

  Working Temperature: -10°C ~ +45°C

  Storage Temperature: -20°C ~ +70°C

  Front panel: Plastic

  RAM / ROM: 128MB / 256MB

  Display: 10 Inch IPS LCD 1280x800 resolurion

  Screen: 10 Inch capacitive touch screen

  Wi-Fi: IEEE802.11 b/g/n, @2.4GHz

  RS485 port: Support

  Relay out: 1

  Bell in: 1

  I/O: 8

• Touch Screen & Display

  Display Mode: Normally white, Transmissive

  LCD Size: 10inch (Diagonal)

  Resolution: 1280x800

  Contrast ratio: 900:1

  Luminance: 350 cd/m²

  Viewing Angle: 80° Left, 80° Right,

  80° Upper, 80° Lower

  Touch Screen: Projected capacitive

• Audio

  SIP v1 (RFC2543), SIP v2 (RFC3261)

  Narrowband audio codec: G.711a, G.711μ, G.729

  Broadband audio codec: G.722

  DTMF: Out-of-band DTMF (RFC2833), SIP Info

  Echo Cancellation

• Video

  Streaming formats: H.264

• Networking

  Protocols support: IPv4, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP

• Deployment & Maintenance

  Auto-Provisioning

  Web management portal

  Web-based packet dump

  Configuration backup / restore

  Firmware upgrade

  System logs (including door access logs)

• Application Scenario

  Villas

  Apartment complexes

  Home automation systems

  Modern interiors
