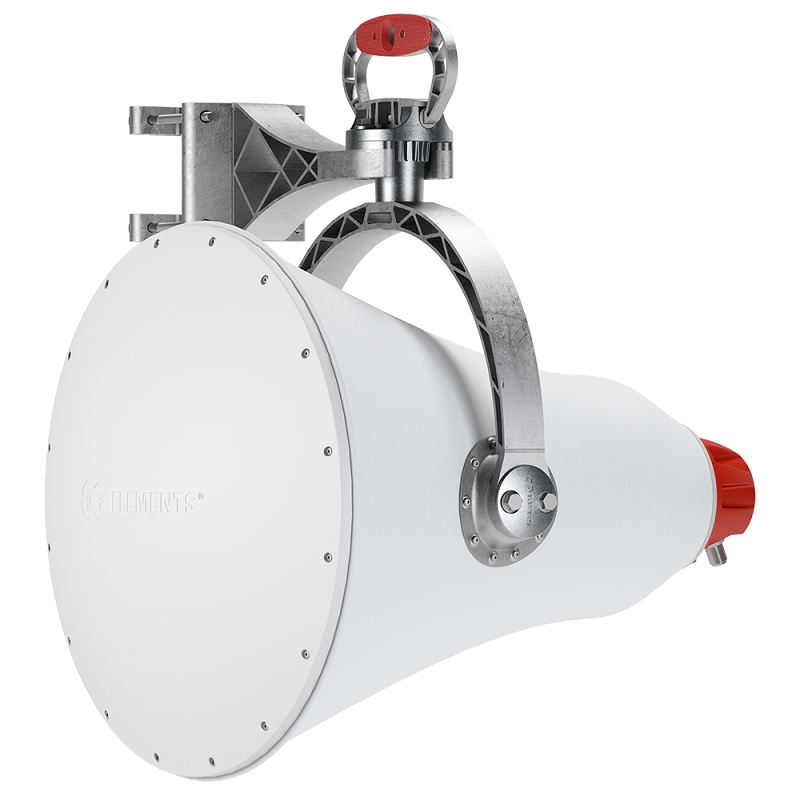

RF Elements UltraHorn 5 - 6GHz 24dBi N-Female Connector Horn Antenna

RF Elements UltraHorn 5 - 6GHz 24dBi N-Female Connector Horn Antenna

UH-CC-5-24

$595.00 NZD
$595.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
RF Elements UltraHorn CC 5GHz to 6GHz 24dBi N-Female Horn Antenna UH-CC-5-24
RF Elements UltraHorn 5180 - 6775 MHz 24dBi N-Female Connectorised Horn Antenna. RF Elements UltraHorn Carrier Class (CC) is a connectorised horn antenna with high gain and high directivity. The UltraHorn offers superb noise rejection due to symmetrical beam with no side lobes. These unique features make UltraHorn CC ideal for long distance links in high noise environments. UltraHorn delivers excellent performance as a narrow sector antenna for high noise environments. High performance antenna characteristics allow for precise network planning of dense co-location in very challenging RF conditions.

Due to the size of these items they are excluded from our free freight option. Freight will be added to all invoices once confirmed and amount will depend on your location.
Features
  • Ultimate Noise Rejecting Horn Antenna
  • Unique Beam Without Side Lobes
  • Ultimate Noise Rejection
  • N-Type Connectors
  • Zero Loss
  • Easy Installation - Innovative Mounting System
Details
Product Code UH-CC-5-24
Frequency Range 5180 - 6775 MHz
Gain 24 dBi
Azimuth/Elevation Beam Width -3 dB H 11° / V 11°
Azimuth/Elevation Beam Width -6 dB H 16° / V 15°
Polarization Double linear H+V
Front-to-Back Ratio 40 dB
VSWR Max 5180-5850 MHz 1.6
VSWR Max 5850-6775 MHz 1.8
Antenna Connection 2x N Female Bulkhead Connector
Antenna Type Horn
Enviromental IP55
Pole Mounting Diameter 30-80 mm
Temperature -30°C to +55°C (-22°F to +131°F)
Wind Survival 160 km/hour
Wind Loading 136/113 N - Front/Side at 160 km/h (100 mi/h)
Details
Pole Mount Yes - Bracket Included
