• RF Elements StationBox ALU-Mini Compact Outdoor Enclosure
1 1

RF Elements

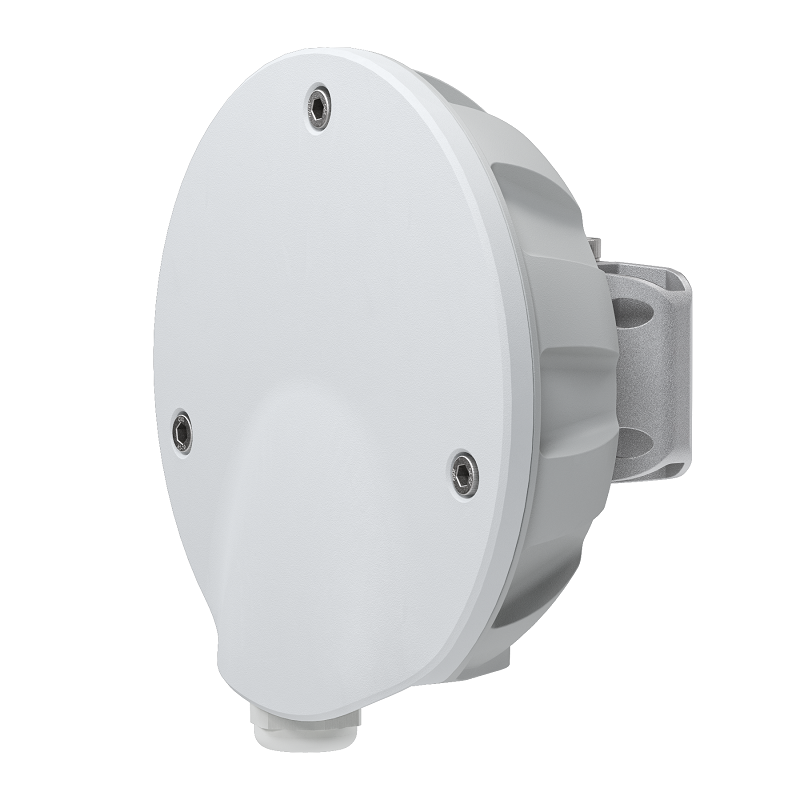

RF Elements StationBox ALU-Mini Compact Outdoor Enclosure

RF Elements StationBox ALU-Mini Compact Outdoor Enclosure

SBX-AM

$95.00 NZD
$95.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
RF Elements StationBox ALU-Mini Compact outdoor aluminium enclosure for wireless platforms, access points, and all things IoT
RF Elements StationBox ALU-Mini. SBX-AM is compact premium outdoor enclosure for IoT devices and wireless platforms. SBX-AM is made of cast aluminium. The robust, full-metal construction is geared towards excellent environment resistance. The slick mounting mechanism allows installation of SBX-AM on a pole or wall.

SBX-AM is designed for solution builders. 3D data set allows for easy DIY mounting plate design, 3D printing or easy electronics PCB layout customization.

The all new mounting bracket on the StationBox® ALU-Mini enables easy and quick installation on a pole or a wall. The bracket is made of extruded aluminium to maximize the durability.
Features
  • Versatile Outdoor Enclosure
  • Customize the mounting plate
  • IP55 Aluminium Enclosure (IP66 can be achieved by sealing the drain holes)
  • Easy Installation Pole Mountable
Details
Manufacturer's Product Code SBX-AM
Connectors 1 cable gland M20
Materials Body - Aluminium Alloy, Bracket - Aluminium Alloy, Hardware - Stainless Steel
Temperature -40degC to +60degC
Wind Survival 160 km/h
Environment Resistance IP55 (IP66 can be achieved by sealing the drain holes)
Mounting Diameter 20-75 mm (we recommend as close to 75mm Pole as possible)
Weight 0.78 kg / 1.7 lbs – single unit
Dimensions 173mm x 185mm x 104mm
Details
Included StationBox ALU-Mini, Mounting Bracket, Blind Plate, Hose Clamp, 2x Screw M3 x 10 mm, 4x Screw 3,5 x 45 mm with Wall Plug
