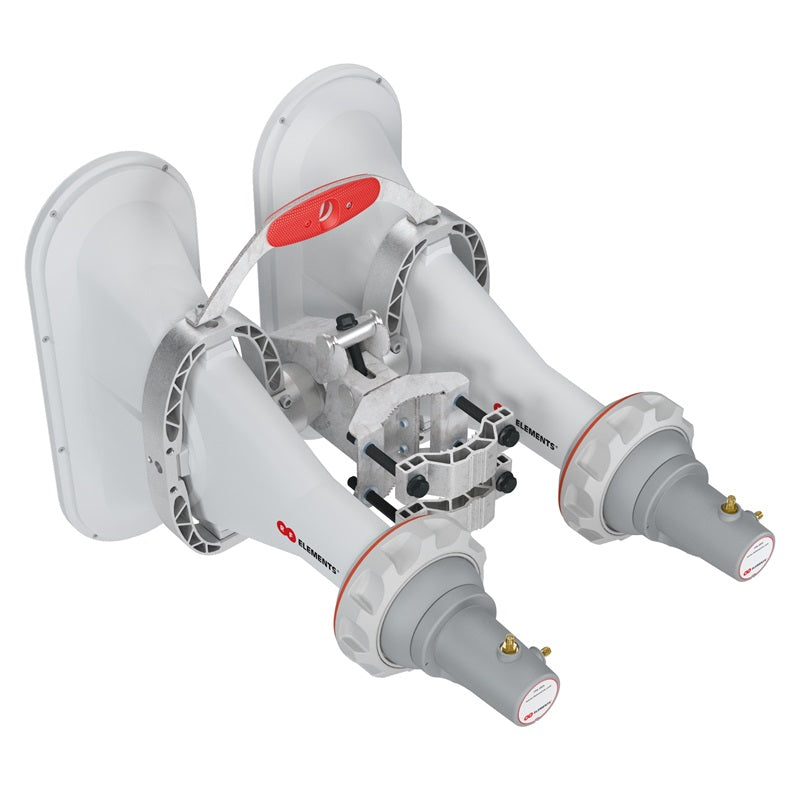

RF Elements 90deg 4x4 5180 - 6000 MHz Asymmetrical Horn Antenna AH90-4x4-SMA

RF Elements 90deg 4x4 5180 - 6000 MHz Asymmetrical Horn Antenna AH90-4x4-SMA

4x4 Horn Antennas are built to enable superb horn performance for 4x4 outdoor deployments using MU-MIMO radios. 4x4 5 GHz Asymmetrical Horn Antennas provide excellent noise rejection, network scalability and throughput increase.

The radiation pattern of 4x4 Asymmetrical Horn Antennas is stable over the whole 5 GHz frequency band with balanced Horizontal and Vertical beam patterns. 4x4 5 GHz Asymmetrical Horn Antennas cover a wide frequency range: 5180-6000 MHz with excellent VSWR performance. 4x4 Asymmetrical Horn Antennas are created as an Array of game changing 5 GHz Asymmetrical Horn Antennas. These Award winning antennas have naturally depressed side lobes: they focus energy into a single main beam, with beam efficiency in the range of 90-95%. Fundamental suppression of unwanted parasitic side lobes enables excellent noise immunity and total control over antenna array radiation patterns.

4x4 Asymmetrical Horn Antennas are equipped with integrated mount for 4x4 connectorized radios from Cambium Networks and Mimosa. Cambium Networks ePMP 3000/4500 AP radio can be easily mounted directly on the antenna for smooth installation. Matching high quality RP-SMA pigtails are delivered in the package with the antenna.

4x4 Asymmetrical Horn Antennas are built as an array of award winning 2x2 Asymmetrical Horn Antennas. Antennas have solid aluminium body, are built to last and to resist harsh weather conditions. We use the premium materials: die cast and extruded aluminium, stainless steel, high quality ABS plastic and high density polyethylene. Innovative mounting system is built of massive stainless steel. Hardware is made of stainless steel with black surface coating to prevent galling at installation.
