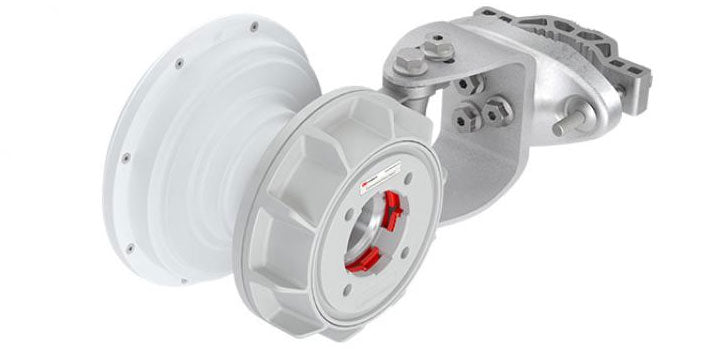

RF Elements 5GHz Gen2 Symmetrical Horn 60 Degree Sector Antenna
RF Elements 5GHz Gen2 Symmetrical Horn 60 Degree Sector Antenna
SKU:HG3-TP-S60
Regular price
$235.00 NZD
Regular price
Sale price
$235.00 NZD
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
In stock
Quantity
Couldn't load pickup availability
RF Elements 5GHz Gen2 Symmetrical Horn 60 Degree Sector Antenna HG3-TP-S60
RF Elements Gen2 Symmetrical Horn 60 Degree Sector Antenna. Symmetrical Horn Antennas have a symmetrical beam pattern with no sidelobes. They offer excellent noise rejection and supreme scalability options. They are perfect for high-density AP clusters and dense radio co-location.
Symmetrical Horn TP Antennas Gen2 feature our industry-changing TwistPortâ„¢ connector, a patent-pending quick-locking waveguide port. TwistPortâ„¢ is virtually lossless and revolutionary easy to use.
Symmetrical Horn TP Antennas Gen2 feature multiple improvements on RF performance and industrial design, incl. optically lighter antenna body and significantly improved antenna bracket. Radome is made of more resistant material and the whole range of Gen2 antennas only uses two different radome sizes.
Symmetrical Horn TP Antennas Gen2 feature our industry-changing TwistPortâ„¢ connector, a patent-pending quick-locking waveguide port. TwistPortâ„¢ is virtually lossless and revolutionary easy to use.
Symmetrical Horn TP Antennas Gen2 feature multiple improvements on RF performance and industrial design, incl. optically lighter antenna body and significantly improved antenna bracket. Radome is made of more resistant material and the whole range of Gen2 antennas only uses two different radome sizes.
Features
- 40/60/90 degree options available
- Compatible with RF Elements TwistPort Adaptors for MikroTik, Cambium, Mimosa and Ubiquiti Radios
| Details | |
|---|---|
| Manufacturer's Product Code | HG3-TP-S60 |
| Frequency Range | 5180 - 6400 MHz |
| Gain | 13.2 dBi |
| Azimuth Beam Width -3 dB | H 41° / V 41° |
| Elevation Beam Width -3 dB | H 41° / V 41° |
| Azimuth Beam Width -6 dB | H 60° / V 60° |
| Elevation Beam Width -6 dB | H 60° / V 60° |
| Front-to-Back Ratio | 32 dB |
| Antenna Connection | TwistPortâ„¢ - Quick Locking Waveguide Port |
| Antenna Type | Horn |
| Materials | UV Resistant ABS Plastic, Polycarbonate, Polypropylene, Aluminium, Stainless Steel |
| Environmental | IP55 |
| Flame Rating | UL 94 HB |
| Pole Mounting Diameter | 30-80 mm |
| Temperature | -30°C to +55°C (-22°F to +131°F) |
| Wind Survival | 160 km/hour |
| Wind Loading | 22 N at 160 km/hour |
| Mechanical Tilt | ± 25° |
| Weight | 1.4 Kg / 3.0 lbs – single unit |
| Details | |
|---|---|
| Pole Mount | Included |
