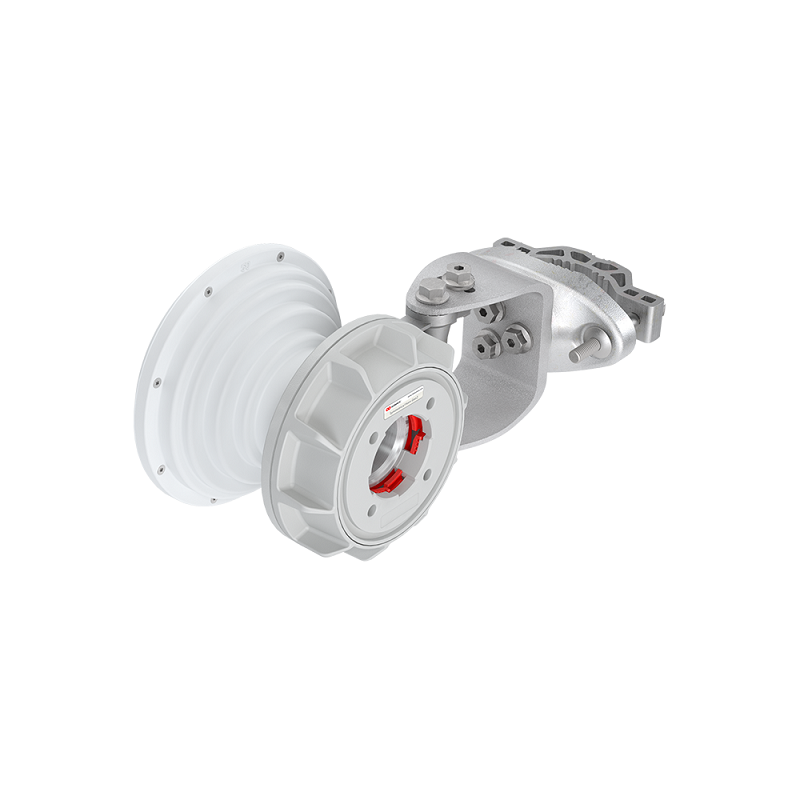

RF Elements 5GHz Gen2 Symmetrical Horn 50 Degree Sector Antenna

RF Elements 5GHz Gen2 Symmetrical Horn 50 Degree Sector Antenna

HG3-TP-S50

$75.00 NZD
$75.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
RF Elements 5GHz Gen2 Symmetrical Horn 50 Degree Sector Antenna
RF Elements 5GHz Gen2 Symmetrical Horn 50 Degree Sector Antenna HG3-TP-S50. Symmetrical Horn Antennas have a symmetrical beam pattern with no sidelobes. They offer excellent noise rejection and supreme scalability options. They are perfect for high-density AP clusters and dense radio co-location.

Symmetrical Horn TP Antennas Gen2 feature our industry-changing TwistPortâ„¢ connector, a patent-pending quick-locking waveguide port. TwistPortâ„¢ is virtually lossless and revolutionary easy to use.

Symmetrical Horn TP Antennas Gen2 feature multiple improvements on RF performance and industrial design, incl. optically lighter antenna body and significantly improved antenna bracket. The radome is made of more resistant material and the whole range of Gen2 antennas only uses two different radome sizes
Features
  • Compatible with RF Elements TwistPort Adaptors for many makes of Radio
  • Unique Symmetrical Beam Performance
  • No Side Lobes
  • Wideband Performance
  • Excellent Gain Across Spectrum
  • Coverage Without Null
  • Excellent Co-Location performance
  • Ultimate Spectrum Efficiency For Everyone
  • Compact Size
Details
Manufacturer's Product Code HG3-TP-S50
Frequency Range 5180 - 6400 MHz
Gain 14.3dBi
Polarisation Dual Linear H + V
Vertical Beamwidth 50deg
Horizontal Beamwidth 50deg
Front-to-Back Ratio 33 dB
Connector Type TwistPort - Quick Locking Waveguide Port
Enviromental IP55
Flame Rating UL 94 HB
Wind Survival 160 km/hour
Wind Loading 22 N at 160 km/hour
Mechanical Tilt ± 25°
Details
Pole Mount Included
