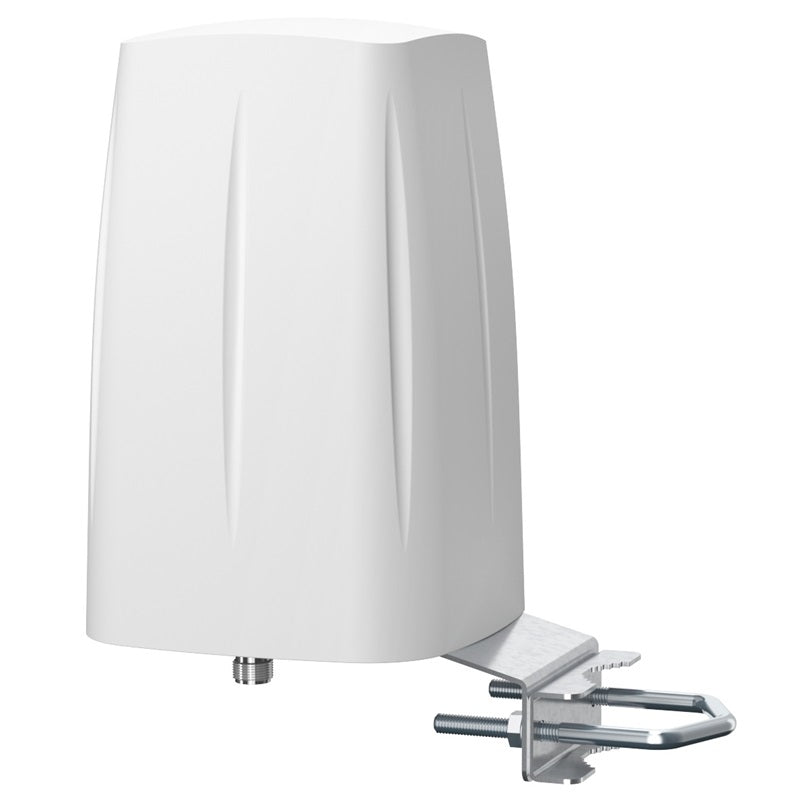

QuWireless QuOmni 4dBi 4G/LTE MIMO 2x2 Antenna with N-Female Connectors

QuWireless QuOmni 4dBi 4G/LTE MIMO 2x2 Antenna with N-Female Connectors

AOLM2-N

$223.00 NZD
$223.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
QuWireless QuOmni 4dBi 4G/LTE MIMO 2x2 Antenna with N-Female Connectors
The QuOmni LTE omnidirectional 4dBi MIMO 2x2 4G/LTE with 2 x N-Female connectors antenna is working in Vertical polarization, it's desired for LTE/4G/3G/2G connections. The antenna can be used for the most popular LTE bands (e.g. 3,7,20), frequencies 694-2700 MHz. That antenna is predicted to be installed on the buildings (on the pole or on the wall) as the client antenna or on the moving points like trains, buses, lorries, yachts, boats to receive Internet by 4G/LTE.
It’s compatible with Teltonika: RUT241, RUT900, RUT951, RUT956, RUTX09, RUTX11 and other MIMO 2x2 LTE/4G/3G/2G modems and routers.
Features
  • IP67 Outdoor antenna
  • Wall or Pole Mount
  • 2 x N-Female connectors
Details
Product Code AOLM2-N
Frequency 694 - 960 MHz, 1.7 - 2.2 GHz, 2.2 - 2.7 GHz
supported LTE/5G bands 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95
Frequency Gain 0.694 - 0.96 GHz : 2 dBi, 1.7 - 2.2 GHz : 2 dBi, 2.2 - 2.7 GHz : 4 dBi
Beamwidth 360°/35° +/- 5°
Connector Type N-Female
Polarization Vertical
Impedance 50 ?
Materials ABS, aluminum, PTFE
Pole Diameter 40-60 mm
Ingress Protection IP67
Dimensions 160 x 160 x 240 mm
Weight 1.5 kg
Operating Temperature From -40°C to 75°C
Details
Contents IP67 Rated Antenna, Pole mount Included
