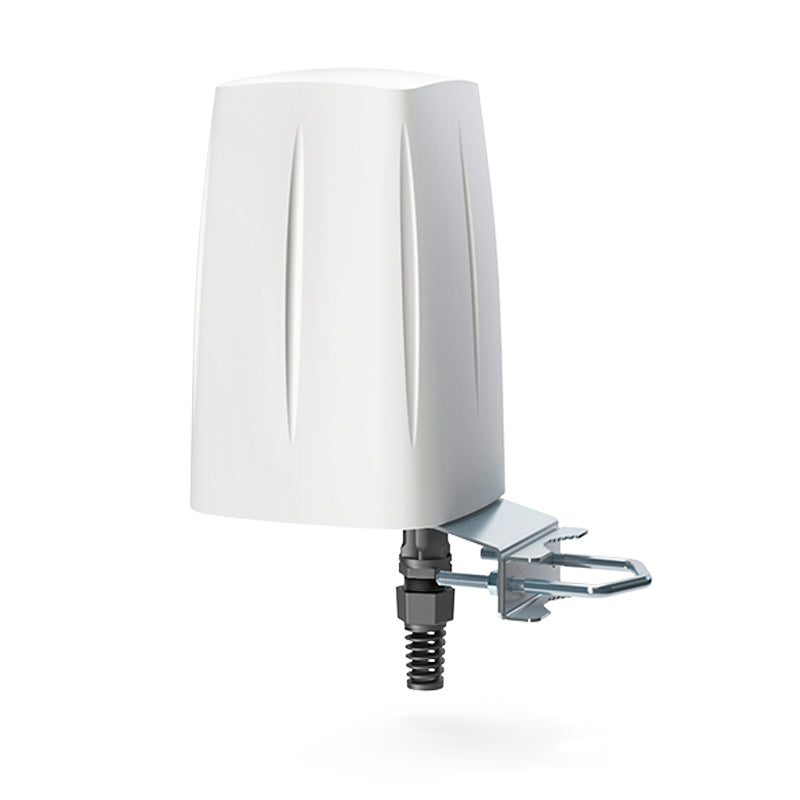

QuSpot Omni Enclosure Antenna for Teltonika RUTX12/X14

QuSpot Omni Enclosure Antenna for Teltonika RUTX12/X14

AX12S

$345.00 NZD
$345.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
QuSpot Integrated MIMO 4x4 multi-band LTE, WiFi, GPS and Bluetooth Omni Antenna for RUTX12/14
QuSpot Integrated MIMO 4x4 multi-band LTE omni antenna + Wi-Fi omni antenna + GPS antenna + Bluetooth antenna + place to install Teltonika RUTX12 or RUTX14 (All-in-one)

QuSpot MIMO 4x4 omni LTE antenna (4x SMA connector for 2x embedded LTE modems or 1x MIMO 4x4 LTE modem) for Teltonika RUTX12 and RUTX14 routers is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It also has embedded Wi-Fi dual band 2.4 & 5 GHz omni antennas, GPS antenna and Bluetooth antenna. If you use RUTX12 or RUTX14 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.
Features
  • IP67 Outdoor antenna
  • Passive PoE support
  • Easy to Install
  • Easy Integration with Teltonika RUTX12 and RUTX14
  • Dual SIM with auto failover
Details
Product Code AX12S
FREQUENCY 0.694-0.96 GHz, 1.7 - 2.2 GHz, 2.2 - 2.7 GHz
supportED LTE/5G BANDS 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95
LTE GAIN 0.694 - 0.96 GHz : 2 dBi, 1.7 - 2.2 GHz : 2 dBi, 2.2 - 2.7 GHz : 3 dBi
LTE VSWR <1.50, max <2.50
LTE BEAMWIDTH 360°/25° +/- 5°
LTE POLARIZATION Vertical
LTE IMPEDANCE 50 Ohm
Wi-Fi FREQUENCY 2.40-2.50 GHz, 4.70 - 6.00 GHz
Wi-Fi GAIN 2.40 - 2.50 GHz : 6 dBi, 4.70 - 6.00 GHz : 7 dBi
Wi-Fi VSWR <1.70, max <2.00
Wi-Fi BEAMWIDTH 360°/25° +/- 5°
Wi-Fi POLARIZATION Vertical
Wi-Fi IMPEDANCE 50 Ohm
BLUETOOTH FREQUENCY 2.40-2.50 GHz
BLUETOOTH GAIN 2 dBi
BLUETOOTH VSWR <1.70, max <2.00
BLUETOOTH BEAMWIDTH 360°/25° +/- 5°
BLUETOOTH POLARIZATION Vertical
BLUETOOTH IMPEDANCE 50 Ohm
MATERIALS ABS, aluminum, PTFE, FR4
INGRESS PROTECTION IP67
CONNECTOR TYPE RJ45
DIMENSIONS 160 x 160 x 240 mm, 6.3 x 6.3 x 9.45 inch
WEIGHT 1.5 kg, 3.31 lbs
OPERATING TEMPERATURE From -40°C to 75°C
Details
Contents IP67 Rated Enclosure, Ethernet Connector Gland, Pole mount Included
