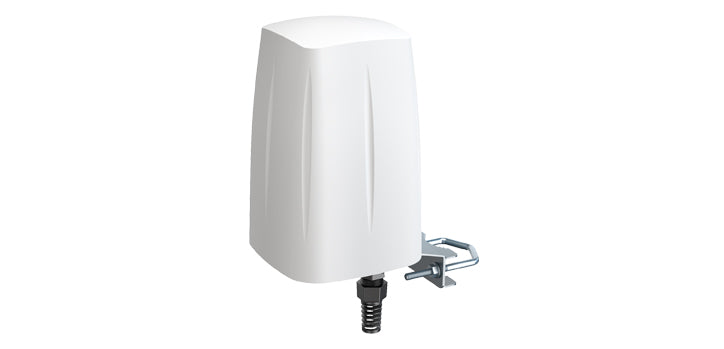

QuSpot LTE, WiFi, GPS and Bluetooth Antenna for RUTX11

QuSpot LTE, WiFi, GPS and Bluetooth Antenna for RUTX11

AX11S

$165.00 NZD
$165.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
QuSpot LTE, WiFi, GPS and Bluetooth Antenna for RUTX11
QuSpot LTE, WiFi, GPS and Bluetooth Antenna for RUTX11

Integrated outdoor multi band high power LTE Omni-directional antennas + WiFi + GPS antenna + place to install Teltonika RUTX11 (All-in-one)

QuSpot omni LTE antenna for Teltonika RUTx11 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded also omni Wi-Fi dualband 2.4 & 5 GHz omni antenna and GPS antenna and Bluetooth antenna. If you use RUTx11 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.
Features
  • IP67 Outdoor antenna
  • Passive PoE support
  • Made to fit mount
  • Easy to Install
  • Easy Integration with Teltonika RUTX1
Details
Product Code AX11S
supported LTE bands 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 70, 71, 85
Frequency Gain 0.694 - 0.96 GHz : 2 dBi, 1.7 - 2.2 GHz : 2 dBi, 2.2 - 2.7 GHz : 4 dBi
Beamwidth 360°/35° +/- 5°
Polarization Vertical
Impedance 50 ?
WiFi Frequency 2.40-2.50 GHz (6dbi), 4.70 - 6.00 GHz(7 dbi)
Materials ABS, aluminum, PTFE, Fiberglass
Ingress Protection IP67
Dimensions 160 x 160 x 240 mm
Weight 1.5 kg
Operating Temperature From -40°C to 75°C
Details
Contents IP67 Rated Enclosure, Ethernet Connector Gland, Pole mount Included
View full details
