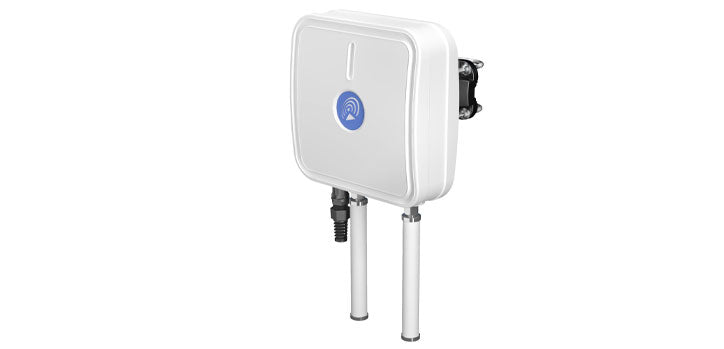

QuSpot A955M 4G/LTE, WiFi & GPS Outdoor Enclosure Panel Antenna for RUT955, RUT956 Cellular Routers

QuSpot A955M 4G/LTE, WiFi & GPS Outdoor Enclosure Panel Antenna for RUT955, RUT956 Cellular Routers

A955M

$293.00 NZD
$293.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
QuSpot 4G/LTE, WiFi & GPS Outdoor Enclosure Panel Antenna for RUT955, RUT956 Cellular Routers
QuSpot A955M 4G/LTE, WiFi & GPS Outdoor Enclosure Panel Antenna for RUT955, RUT956, RUT950 Cellular Routers.

Integrated outdoor multi band high power LTE directional antenna + outdoor Wi-Fi omni antenna + GPS antenna + place to install Teltonika RUT955/RUT950 (All-in-one)

QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have the Teltonika RUT955 or RUT950 router installed inside a IP67 enclosure. It is the first choice for fixed installations in an industrial environment. It also has an embedded GPS antenna and outdoor Wi-Fi omni antennas.
Features
  • IP67 Outdoor antenna
  • Passive PoE support
  • Made to fit mount
  • Easy to Install
  • Easy Integration with Teltonika RUT955/RUT950
Details
Product Code A955M
supported LTE bands 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 2305-2360
Frequency Gain 0.694-0.96 GHz: 4dBi, 1.7 - 2.2 GHz: 5dBi, 2.2 - 2.7 GHz: 6dBi
Beamwidth 90°/90° +/- 30°
Polarization Vertical
Impedance 50 ?
WiFi Frequencies 2.40-2.50 GHz (6dBi), 4.70 - 6.00 GHz (7dBi)
Materials ABS, aluminum, PTFE, Fiberglass
Ingress Protection IP67
Dimensions 272 x 276 x 96 mm
Weight 1.8 kg
Operating Temperature From -40°C to 75°C
Details
Contents IP67 Rated Enclosure, Ethernet Connector Gland, Pole mount Included
