QuWireless

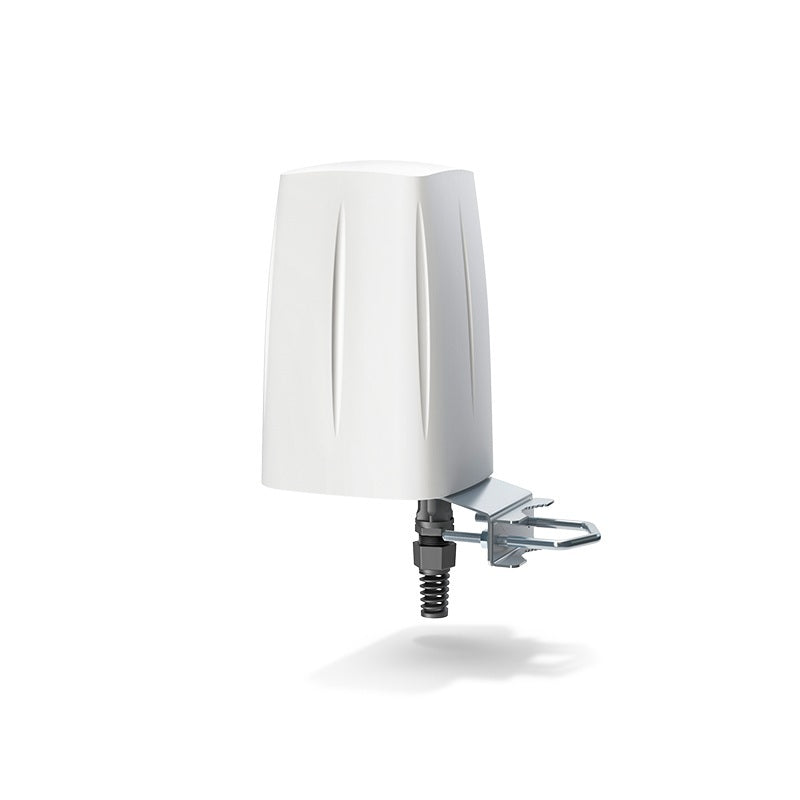

QuSpot A500S 5G 4G LTE Outdoor Enclosure Omni Antenna with Passive PoE splitter for TRB500 Cellular Modem
QuSpot A500S 5G 4G LTE Outdoor Enclosure Omni Antenna with Passive PoE splitter for TRB500 Cellular Modem
SKU:A500S
Regular price
$432.00 NZD
Regular price
Sale price
$432.00 NZD
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
Low stock
Quantity
Couldn't load pickup availability
QuSpot A500S 4G/5G Outdoor Enclosure Omni Antenna with Passive PoE splitter for TRB500 Cellular Modem
The QuSpot A500S for TRB500 is an outdoor 617MHz to 6000MHz 4dBi antenna designed to provide reliable wireless connectivity in a variety of environments. This product is an all in one solution that integrates a high gain omnidirectional 5G antennas with RUTX50 into a single IP67 enclosure. Such integration allows implementation of new outdoor TRB500 solutions.
QuSpot for TRB500 is an ideal solution for outdoor wireless connectivity in moving applications such as transportation, yachting, boats and camping but also city centres with high signal density.
The set contains a Passive PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection. NOTE: should only be used with a 24V (or lower voltage) Passive PoE power supply it is not compatible with an 802.3af/at power source!
QuSpot for TRB500 is an ideal solution for outdoor wireless connectivity in moving applications such as transportation, yachting, boats and camping but also city centres with high signal density.
The set contains a Passive PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection. NOTE: should only be used with a 24V (or lower voltage) Passive PoE power supply it is not compatible with an 802.3af/at power source!
Features
- 617MHz to 6000MHz 5G 4dBi Antenna
- Omni Directional
- IP68
- supports Band 71 for 5G
- Passive PoE support with Gigabit Splitter
| Details | |
|---|---|
| Product Code | A500S |
| Frequency | 617 - 960 MHz, 1.7 - 2.7 GHz, 3.3 - 4.7 GHz, 5.2 - 6.0 GHz |
| supported LTE bands | 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106 |
| supported 5G bands | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256 |
| Gain | 617 - 960 MHz : 2 dBi, 1.7 - 2.7 GHz : 4 dBi, 3.3 - 4.7 GHz : 4.5 dBi, 5.2 - 6.0 GHz : 2 dBi |
| VSWR | <2.00, max <2.50 |
| Beamwidth | 360°/25° ±5° |
| Polarization | Vertical |
| Impedance | 50 Ohm |
| Connectors | 4 x SMA Male |
| Dimensions | 160mm x 189mm x 240mm, 1.5 kg |
| Materials | ABS, aluminum, PTFE |
| Connector type | RJ45 |
| POE TYPE | Passive PoE up to 24V, not compatible with an 802.3af/at power source! |
| POE IN Mode | Mode type: B |
| Ingress protection | IP68 |
| Operating temperature | From -40°C to 75°C |
| Mast diameter | 25-66 mm |
| Enclosure Recommended Tightening Torque | 0.5 - 0.7 Nm |
| Details | |
|---|---|
| Contents | IP67 Rated Enclosure antenna, Ethernet Connector Gland, Pole mount brackets, QuPoE PAS-FP splitter, 8mm wrench |
