QuWireless

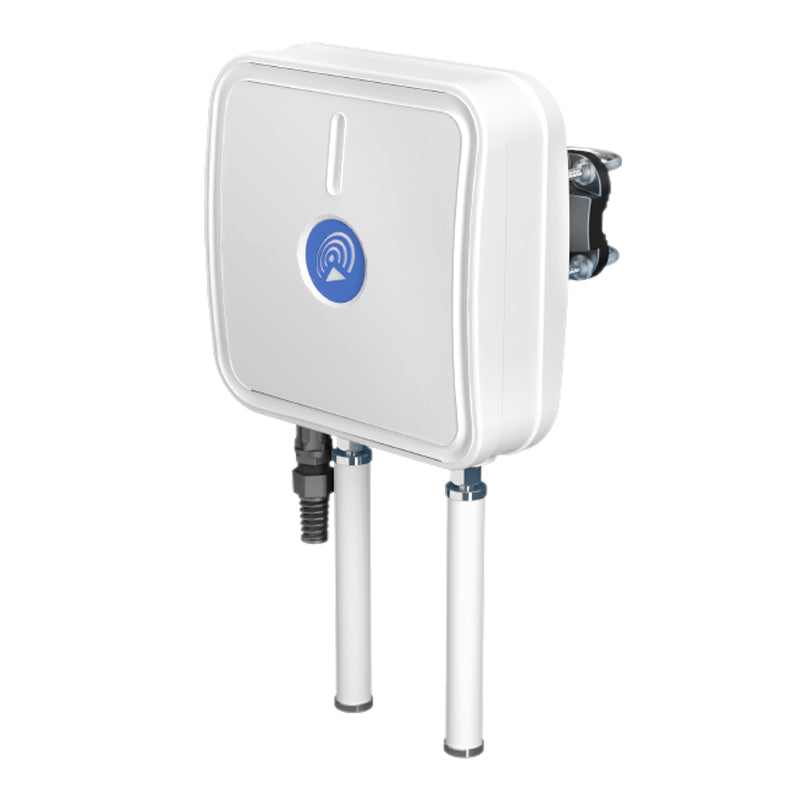

QuMax A360M 5G/4G/LTE plus 2.4GHz Wi-Fi Panel Enclosure Antenna for Teltonika RUT361

QuMax A360M 5G/4G/LTE plus 2.4GHz Wi-Fi Panel Enclosure Antenna for Teltonika RUT361

A360M

$165.00 NZD
$165.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
QuMax 5G/4G/LTE plus 2.4GHz Wi-Fi Panel Enclosure Antenna for Teltonika RUT360
QuMax A360M 5G/4G/LTE plus 2.4GHz Wi-Fi Panel Enclosure Antenna for Teltonika RUT361

QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUT360 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also outdoor Wi-Fi omni antennas.
Features
  • IP67 Outdoor antenna
  • Made to fit mount
  • Easy to Install
  • Easy Integration with Teltonika RUT361
Details
Product Code A360M
supported LTE/5G bands 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 85, 103, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101, n256
Frequency Gain 0.694 - 0.96 GHz : 4 dBi , 1.7 - 2.2 GHz : 5 dBi , 2.2 - 2.7 GHz : 6 dBi
Beamwidth 90°/90° +/- 30°
Polarization Vertical
Impedance 50 ?
WiFi Frequencies 2.40-2.50 GHz (6dBi)
Materials ABS, aluminum, PTFE, Fiberglass
Ingress Protection IP67
Dimensions 272 x 276 x 96 mm
Weight 1.8 kg
Operating Temperature From -40°C to 75°C
Details
Contents IP67 Rated Enclosure Antenna, Ethernet Connector Gland, Pole mount Included
