QuWireless

QuMax 4G/LTE & GPS Antenna for RUTX09

QuMax 4G/LTE & GPS Antenna for RUTX09

AX09M

$195.00 NZD
$195.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock

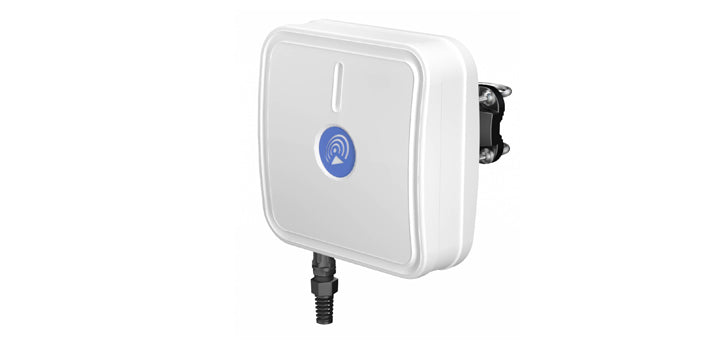

QuMax 4G/LTE & GPS Antenna for RUTX09
QuMax LTE & GPS Antenna for RUTX09
Integrated outdoor multi band high power LTE directional antennas + GPS antenna + place to install Teltonika RUTX09 (All-in-one)
QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distances to a base station. It is designed to have Teltonika RUTX09 router installed inside an IP67 rated enclosure. It is the first choice for fixed installations in industrial environments. It also features an embedded GPS antenna.
Features
  • IP67 Outdoor antenna
  • Passive PoE support
  • Made to fit mount
  • Easy to Install
  • Easy Integration with Teltonika RUTX09
Details
Product Code AX09M
supported LTE bands 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 70, 71, 85
Frequency Gain 0.694 - 0.96 GHz : 4 dBi, 1.7 - 2.2 GHz : 5 dBi, 2.2 - 2.7 GHz : 6 dBi
Beamwidth 90°/90° +/- 30°
Polarization Vertical
Impedance 50 ?
Materials ABS, aluminum, PTFE, Fiberglass
Ingress Protection IP67
Dimensions 272 x 276 x 96 mm
Weight 1.8 kg
Operating Temperature From -40°C to 75°C
Details
Contents IP67 Rated Enclosure, Ethernet Connector Gland, Pole mount Included
