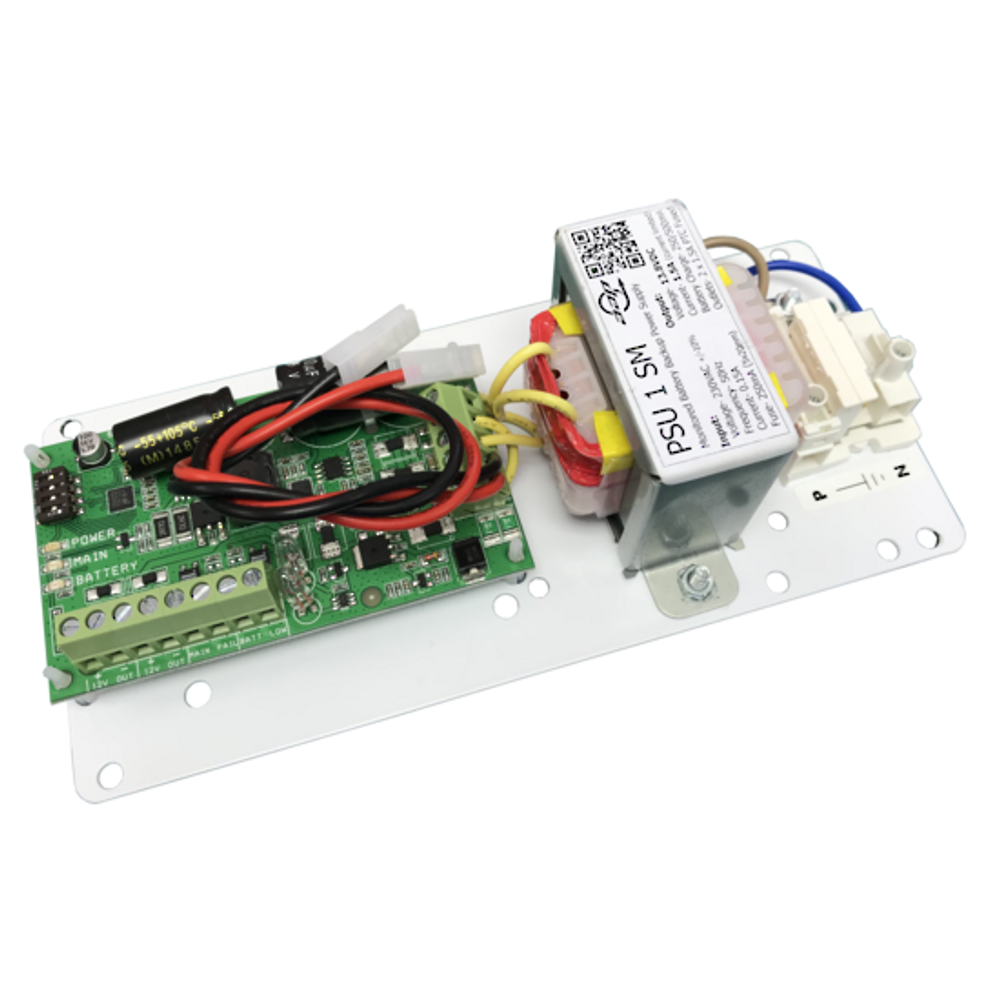

PSU1 SM - 13.8V 1.5A Plated Power Supply

PSU1 SM - 13.8V 1.5A Plated Power Supply

PSU1 SM

$161.70 NZD
$203.08 NZD $161.70 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock

Specifications.
  Input voltage: 220-240VAC
  Output voltage: 13.8VDC
  Current: 1.5A
  Battery Charge: 250 or 500mA (selectable)
  Fused Outlets: 2 x 1.5A PTC auto reset fuses
  Monitor Outlets: 2 x NO or NC selectable Contacts (50mA 30VDC max.) for Battery Low & Mains fail
  Size: 200 x 92 x 54mm

Features.
  Dynamic Battery Monitoring
  Main fail detection with optional 15 minute delay
  Low voltage battery disconnect (10.5V)


Spec Sheet
