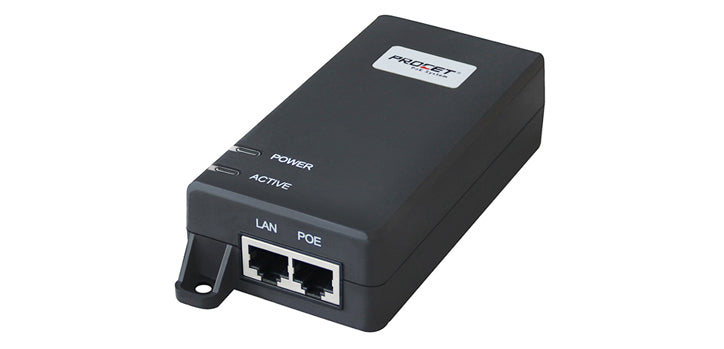

Procet 55V DC 60 Watt 10 Gigabit 802.3bt Power over Ethernet Supply
Procet 55V DC 60 Watt 10 Gigabit 802.3bt Power over Ethernet Supply. PT-PSE104GB-60-10 is a single port PoE Injector. It provides 55Vdc, 1.1A power for remote PDs over 4 pairs output. It supports not only 10/100/1000Mbps of data speed, but also 2.5GbE/5GbE NBase-T. It works for 60W PoE PDs, such as wireless APs, Network cameras, IP Phones and other high power Ethernet terminals.

It fully complies to IEEE802.3af/at, PoE++ standard. PT-PSE104GB-60-10 is designed for indoor use. It works with input voltage of 100-240Vac. It has detection chip inside, which will detect and classify PD before powering it. It will not apply power until a standard-compliant PD is detected. The effective distance is 100 meters over Cat5e/Cat6 cables.
Features
  • Input Voltage: 100-240Vac 1.5A 50/60Hz
  • Output Power: 60W guarantee
  • PoE++ compliant, backwards compatible with IEEE802.3af/at
  • 10GBit/s, IEEE802.3bz
  • Power for 802.11ac Wave 2 Access Points, Pan-Tilt-Zoom (PTZ) Cameras and Video-Phones
  • Compact design, smaller in size: 145.51mm X 65.8mm X 33.5mm
  • Automatic detection and protection of non-standard devices (Active)
  • Low power devices receive only the power they need
  • UL, CE, FCC certificate
Details
Manufacturer's Product Code PT-PSE104GB-60-10
Input 100-240Vac 1.5A 50/60Hz
Output 55Vdc 1100mA
Power Pins 4/5(+), 7/8(-) & 3/6(+), 1/2(-)
Data Speed 10/100/1000Mbps & 2.5/5/10GbE
Operating Temperature 0degC to 40degC
Operating Humidity 20% to 80%, non-condensation
Storage Temperature -20degC to 70degC
Storage Humidity 10% to 90%, non-condensation
Operating Altitude up to 2000meters
Standards IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-Tx Fast Ethernet, IEEE802.3ab 1000Base-T Gigabit Ethernet, IEEE802.3bz 2.5GbE/5/10GbE NBASE-T, Full compliant with IEEE802.3af/at, PoE++, RoHS Compliance, WEEE Compliance
EMI FCC CFR47 Part 15, EN55024, EN55032
EMS IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air), IEC61000-4-3(RS) 10V/m(80MHz~2GHz), IEC61000-4-4(EFT) Power Port: ±2kV; Data Port:±1kV, IEC61000-4-5(Surge) Power Port:±1kV/DM, ±2kV/CM, IEC61000-4-6(CS) 10V(150kHz~80MHz)
Case Plastic
Colour Black
Mounting Wall-mounted
IP Rated IP40
Size 145.51mm X 65.8mm X 33.5mm
Weight 255g
Details
Power Cord NZ 3 Pin Power Lead included
