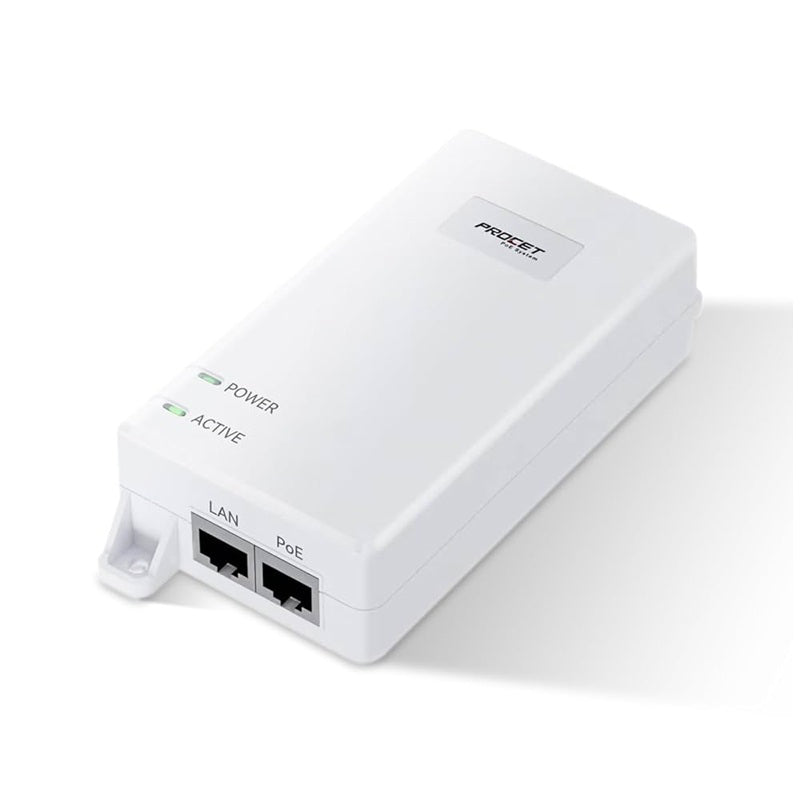

Procet 55V DC 60 Watt 10 Gigabit 802.3bt PoE++ White Power over Ethernet Injector

Procet 55V DC 60 Watt 10 Gigabit 802.3bt PoE++ White Power over Ethernet Injector

EN60GB-10

$83.00 NZD
$83.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Procet 55V DC 60 Watt 10 Gigabit 802.3bt White PoE Injector
Procet 55V DC 60 Watt 10 Gigabit 802.3af/at/bt White PoE Injector.

EN60GB-10 is an indoor single-port PoE Injector. It provides 55Vdc, 1.1A power for remote PDs and supports 10/100/1000/2500/5000/10000M bps data transmission. It is suitable for high power up to 60W PDs, such as wireless APs, Network cameras, IP Phones and other high power Ethernet terminals.

It fully complies to the IEEE802.3af/at/bt standard. It works with wide input voltage of 100-240VAC 50 or 60Hz. The maximum distance for data transmitting is 100m / 328ft while using Cat5e/Cat6 cables. EN60GB-10 will supply power normally when IEEE802.3af/at/bt PD is detected, but will terminate power supply to nonstandard devices.
Features
  • Input Voltage: 100-240Vac 1.5A 50/60Hz
  • Output Power: 60W guarantee
  • 802.3bt / PoE++ compliant, backwards compatible with IEEE802.3af/at
  • 10GBit/s, IEEE802.3bz
  • Power for 802.11ac Wave 2 Access Points, Pan-Tilt-Zoom (PTZ) Cameras and Video-Phones
  • Compact design, smaller in size: 145.51mm X 65.8mm X 33.5mm
  • Automatic detection and protection of non-standard devices (Active)
  • Low power devices receive only the power they need
  • UL, CE, FCC certificate
Details
Manufacturer's Product Code EN60GB-10
Input 100-240Vac 1.5A 50/60Hz
Output 55Vdc 1100mA
Power Pins 4/5(+), 7/8(-) & 3/6(+), 1/2(-)
Data Speed 10/100/1000Mbps & 2.5/5/10GbE
Operating Temperature 0? to 40?
Operating Humidity 20% to 80%, non-condensation
PoE Standard Fully compliant with IEEE802.3af/at/bt / PoE++
Other Standards IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-Tx Fast Ethernet, IEEE802.3ab 1000Base-T Gigabit Ethernet, IEEE802.3bz 2.5GbE/5/10GbE NBASE-T, RoHS Compliance, WEEE Compliance
EMI FCC CFR47 Part 15, EN55032, EN55035
Case Plastic
Colour White
Mounting Wall-mounted
IP Rated IP40
Size 145.51mm X 65.8mm X 33.5mm
Weight 255g
Details
Power Cord NZ 3 Pin Power Lead included
