PolyPhaser

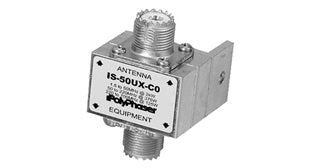

PolyPhaser IS-50UX-C0 UHF F/F Coaxial RF Surge Protector, 1.5MHz - 700MHz, DC Block

PolyPhaser IS-50UX-C0 UHF F/F Coaxial RF Surge Protector, 1.5MHz - 700MHz, DC Block

IS-50UX-C0

$179.00 NZD
$179.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock
PolyPhaser IS-50UX-C0 UHF F/F Coaxial RF Surge Protector, 1.5MHz - 700MHz, DC Block
PolyPhaser IS-50UX-C0 UHF F/F Coaxial RF Surge Protector, 1.5MHz - 700MHz, DC Block, 2kW, 10mJ, 50kA, Blocking Cap, Bracket Up, Hole Mount

RF surge protector (also known as lightning arrester or surge arrestor) IS-50UX-C0 from PolyPhaser, integrating a RF blocking capacitor with a gas tube (GT or GDT). This RF surge protector component is manufactured in a coaxial in-line design with wide operating frequency range.

Applications: HF, UHF and VHF radios, Ham radios, Remote industrial monitoring
Features
  • Surge current of 50kA
  • Max Power 2kW
  • Frequency range from 1.5 MHz to 700 MHz
  • UHF Female to UHF Female connectors
  • VSWR <1.2:1
  • Multi-strike capability
  • CE & RoHS compliant
Details
Manufacturer's Product Code IS-50UX-C0
Impedance 50 Ohm
Connector In Series UHF
Connector In Gender Female
Connector Out Series UHF
Connector Out Gender Female
Minimum Frequency 1.5 MHz
Maximum Frequency 700 MHz
VSWR 1.2:1
Maximum Input Power 1.5 to 50MHz - 2kW, 50 to 220MHz - 375W, 220 to 700MHz - 125W
Surge Current 50 kA, IEC 61000-4-5 8/20µs WAVEFORM
Direction Directional
Throughput Energy 10,000 uJ
Compliance Certifications CE Compliant, UL497E, NOM
Details
Included 1 x IS-50UX-C0. 1 x RA Bracket
