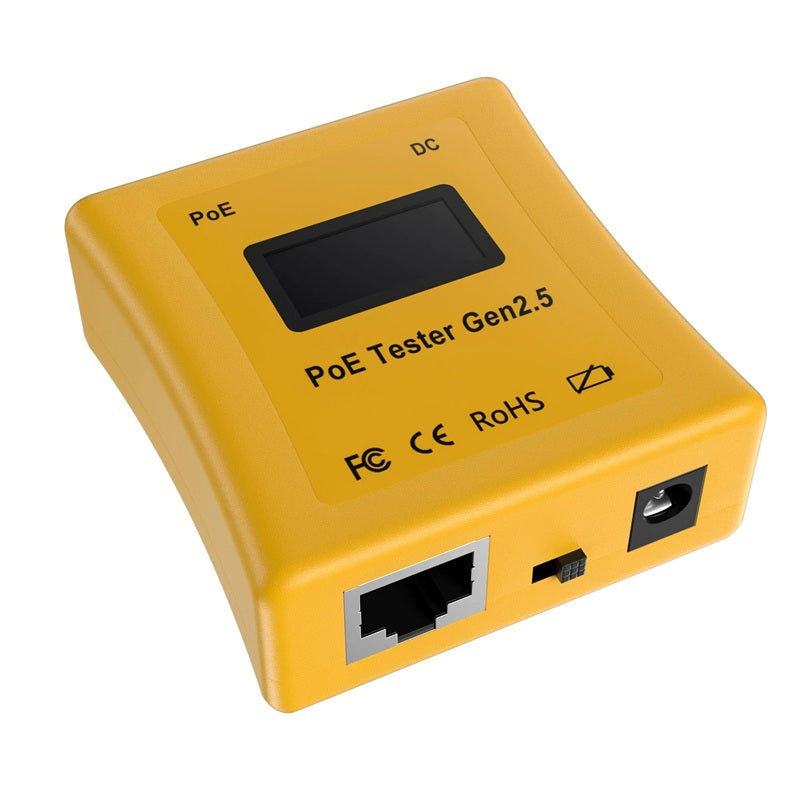

PoE World POE Tester Gen2.5
PoE World Universal PoE Tester Gen2.5

This Gen2.5 device reports the type of PoE that is on an Ethernet cable via LED indicators, with this keychain device you can quickly find out what PoE method is available along with the approximate voltage, pinout and polarity.

You can use it with passive injectors, 802.3af, 802.3at and 4 Pair 802.3bt with 568A, 568B standards or reverse PoE polarity. Mode A and Mode B PoE is supported. If you are far from the PoE switch or injector – this convenient device will show if a port has power.

Also supports simulation modes: 802.3af ( mode 1), 802.3at mode 2, 3 & 4, 802.3bt 2 pair only
Details
Product Code PoE Tester 2.5
Power compatibility All PoE modes and also DC voltages from 3.5 volts to 57 volts
PoE Device simulation Force a PoE switch to activate PoE power without a load
supported Simulation modes 802.3af ( mode 1), 802.3at mode 2, 3 & 4, 802.3bt 2 pair only
2.1 x 5.5mm input/output for PSU testing Use the included 2.1mm jumper cable for inline testing
Amps measured to 2% accuracy Mode A and Mode B: 0 to 1500mA, DC connector: 0 to 5 Amps
No Fuse protection Do not exceed the rated values
Battery Free operation The Tester requires just 200mW for operation, taking power from the PoE source. 4 mA at 48v, 8 mA at 24v
Details
Inlcuded 1 x PoE Tester Gen2.5, 1 x 2.1mm to 2.1mm DCDC cable
