Cambium Networks

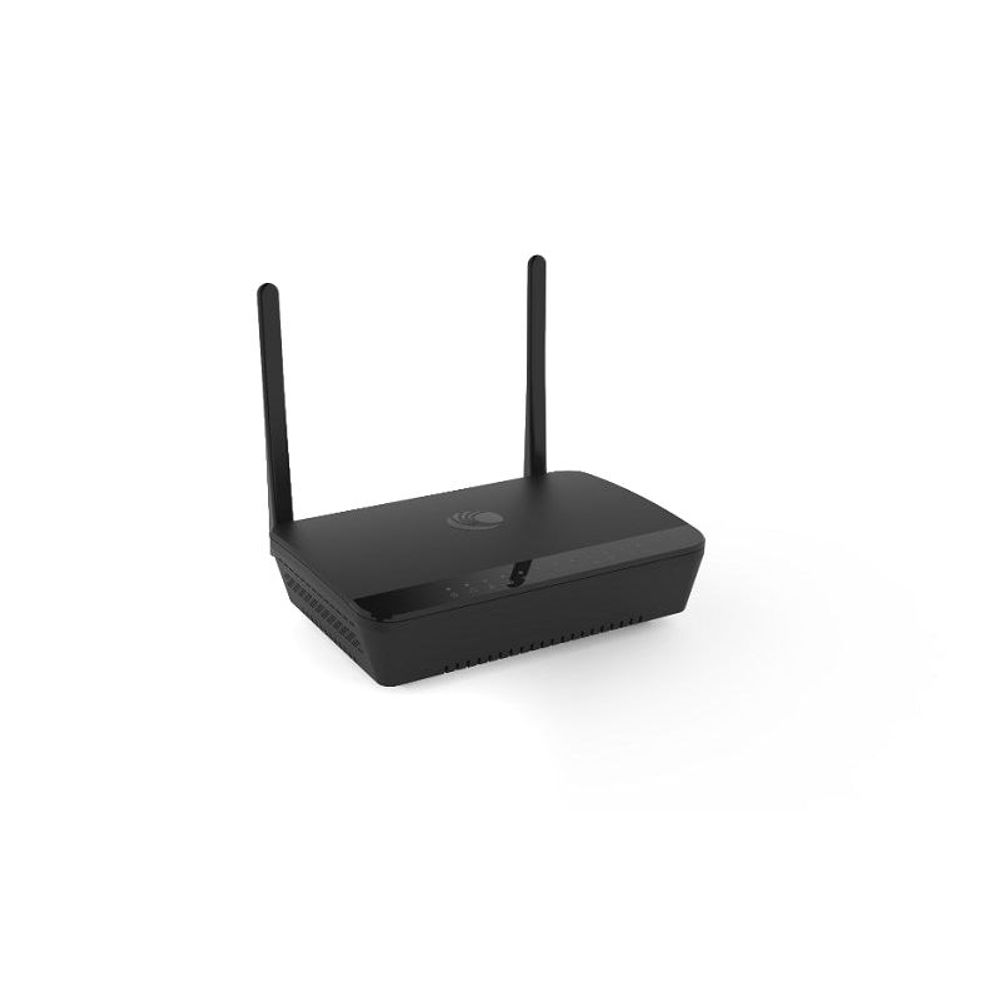

PL-R195PANA-RW - Cambium R195P Residential 802.11ac Dual-Band Access Point with Integrated ATA and PoE Out
PL-R195PANA-RW - Cambium R195P Residential 802.11ac Dual-Band Access Point with Integrated ATA and PoE Out
SKU:PL-R195PANA-RW
Regular price
$79.00 NZD
Regular price
Sale price
$79.00 NZD
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
In stock
Quantity
Couldn't load pickup availability
The Cambium PL-R195PANA-RW is a Residential 802.11ac Dual-Band Access Point with Integrated ATA and PoE Out.
The Cambium r195 series provides robust Wi-Fi performance to match and exceed the expectations of the modern family anywhere on the globe. As social media, streaming media, work-from-home and school-from-home increase, the need for high-performance Wi-Fi is here today. Don’t be trapped by old 802.11n technology.
With five Gigabit Ethernet ports and dual WLAN radios, the r195 series easily connects all the devices in a home, providing full home coverage from a single Wi-Fi router. For larger homes, extend coverage with WDS MESH to link two Wi-Fi routers together; for example, one r195P can extend Wi-Fi coverage to a remote r195W.
r195P delivers two ATA ports for VoIP, and Cambium 30 V power out for a Cambium PMP or ePMP fixed wireless subscriber module.
The Cambium r195 series provides robust Wi-Fi performance to match and exceed the expectations of the modern family anywhere on the globe. As social media, streaming media, work-from-home and school-from-home increase, the need for high-performance Wi-Fi is here today. Don’t be trapped by old 802.11n technology.
With five Gigabit Ethernet ports and dual WLAN radios, the r195 series easily connects all the devices in a home, providing full home coverage from a single Wi-Fi router. For larger homes, extend coverage with WDS MESH to link two Wi-Fi routers together; for example, one r195P can extend Wi-Fi coverage to a remote r195W.
r195P delivers two ATA ports for VoIP, and Cambium 30 V power out for a Cambium PMP or ePMP fixed wireless subscriber module.
Features
- Gigabit fibre (UFB) capable router
- Auto-sensing Cambium 30V PoE-Output on WAN port
- Integrated ATA (2x FXS ports) for VOIP
- Dual-radio, 802.11ac (5 GHz/2.4 GHz)
- High-gain duplex antennas for extended range
- Hardware accelerated NAT Firewall
- Managed by cnMaestro; Cloud, MSP, On-Premises
| Details | |
|---|---|
| Manufacturer's Code | PL-R195PANA-RW |
| Supported Bands | 2400 – 2500 MHz, 5150 – 5850 MHz |
| Max EIRP | 2.4 GHz: 27 dBm, 5 GHz: 20 dBm |
| Antenna | External duplexed antenna, 5dBi |
| Max Phy Rate | 2.4 GHz radio: 300 Mbps 5 GHz radio: 867 Mbps |
| WLAN | Supports 64 clients, up to 8 SSIDs |
| Interfaces | (4) 10/100/1000Mbps LAN Ports; (1) 10/100/1000Mbps WAN Port; (2) FXS Ports; (1) USB Port |
| Power | 12VDC, 1a. 2.1mm x 5.5mm DC barrel connector |
| Dimensions | 200 mm x 140 mm x 50 mm |
| Weight | 0.900g |
| LEDs | Power, WLAN, Port status LEDs |
| Ambient Operating Temperature | 0ºC to 40ºC |
| Storage Temperature | -20ºC to 70ºC |
| Humidity | 95% RH non-condensing |
| Certifications | FCC, ETSI, CE, EN 60601-1-2, IEC60950 |
| Details | |
|---|---|
| Power Supply | 12VDC 3A PSU |
Â
Â
Specifications
Â
Â
The Cambium PL-R195PANA-RW is a Residential 802.11ac Dual-Band Access Point with Integrated ATA and PoE Out.
The Cambium r195 series provides robust Wi-Fi performance to match and exceed the expectations of the modern family anywhere on the globe. As social media, streaming media, work-from-home and school-from-home increase, the need for high-performance Wi-Fi is here today. Don’t be trapped by old 802.11n technology.
With five Gigabit Ethernet ports and dual WLAN radios, the r195 series easily connects all the devices in a home, providing full home coverage from a single Wi-Fi router. For larger homes, extend coverage with WDS MESH to link two Wi-Fi routers together; for example, one r195P can extend Wi-Fi coverage to a remote r195W.
r195P delivers two ATA ports for VoIP, and Cambium 30 V power out for a Cambium PMP or ePMP fixed wireless subscriber module.
The Cambium r195 series provides robust Wi-Fi performance to match and exceed the expectations of the modern family anywhere on the globe. As social media, streaming media, work-from-home and school-from-home increase, the need for high-performance Wi-Fi is here today. Don’t be trapped by old 802.11n technology.
With five Gigabit Ethernet ports and dual WLAN radios, the r195 series easily connects all the devices in a home, providing full home coverage from a single Wi-Fi router. For larger homes, extend coverage with WDS MESH to link two Wi-Fi routers together; for example, one r195P can extend Wi-Fi coverage to a remote r195W.
r195P delivers two ATA ports for VoIP, and Cambium 30 V power out for a Cambium PMP or ePMP fixed wireless subscriber module.
Features
- Gigabit fibre (UFB) capable router
- Auto-sensing Cambium 30V PoE-Output on WAN port
- Integrated ATA (2x FXS ports) for VOIP
- Dual-radio, 802.11ac (5 GHz/2.4 GHz)
- High-gain duplex antennas for extended range
- Hardware accelerated NAT Firewall
- Managed by cnMaestro; Cloud, MSP, On-Premises
| Details | |
|---|---|
| Manufacturer's Code | PL-R195PANA-RW |
| Supported Bands | 2400 – 2500 MHz, 5150 – 5850 MHz |
| Max EIRP | 2.4 GHz: 27 dBm, 5 GHz: 20 dBm |
| Antenna | External duplexed antenna, 5dBi |
| Max Phy Rate | 2.4 GHz radio: 300 Mbps 5 GHz radio: 867 Mbps |
| WLAN | Supports 64 clients, up to 8 SSIDs |
| Interfaces | (4) 10/100/1000Mbps LAN Ports; (1) 10/100/1000Mbps WAN Port; (2) FXS Ports; (1) USB Port |
| Power | 12VDC, 1a. 2.1mm x 5.5mm DC barrel connector |
| Dimensions | 200 mm x 140 mm x 50 mm |
| Weight | 0.900g |
| LEDs | Power, WLAN, Port status LEDs |
| Ambient Operating Temperature | 0ºC to 40ºC |
| Storage Temperature | -20ºC to 70ºC |
| Humidity | 95% RH non-condensing |
| Certifications | FCC, ETSI, CE, EN 60601-1-2, IEC60950 |
| Details | |
|---|---|
| Power Supply | 12VDC 3A PSU |
