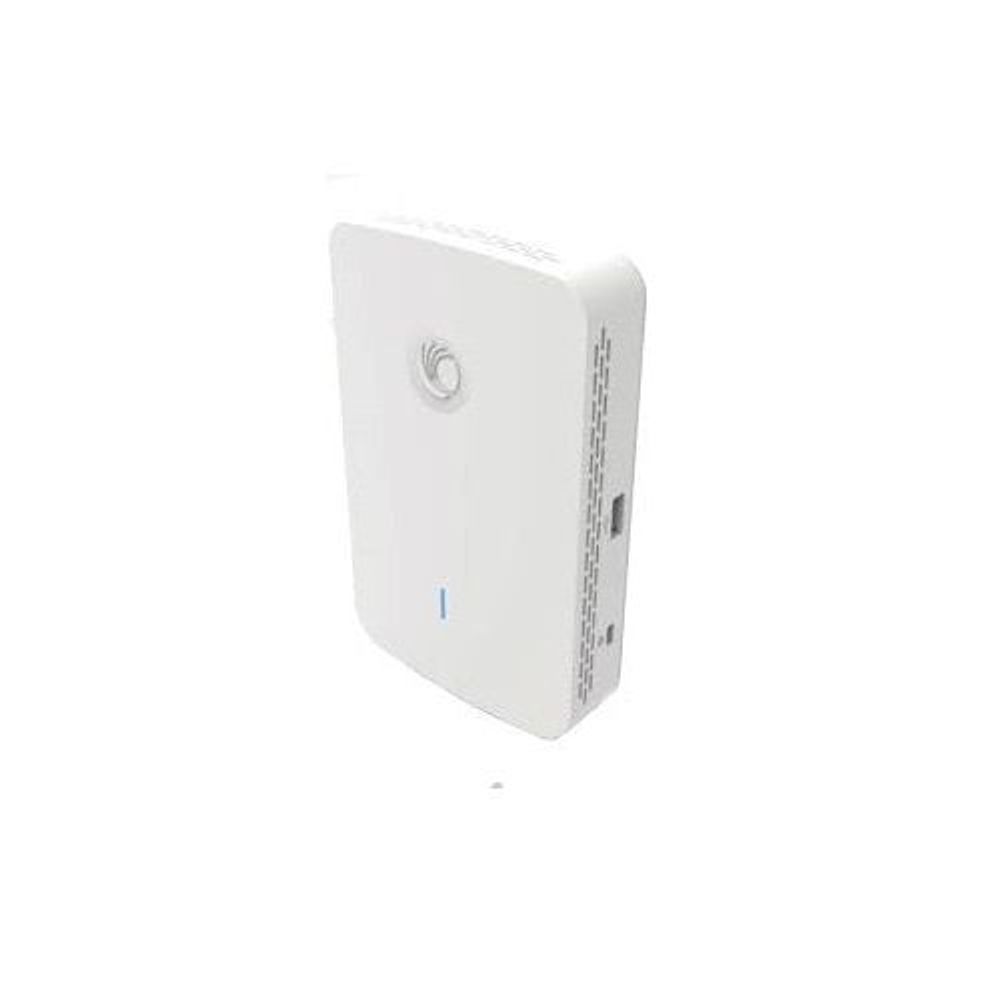

PL-E425H00A-RW - Cambium cnPilot e425H Indoor 802.11ac Wave 2 MU-MIMO Wall Plate Access Point
PL-E425H00A-RW - Cambium cnPilot e425H Indoor 802.11ac Wave 2 MU-MIMO Wall Plate Access Point
SKU:PL-E425H00A-RW
Regular price
$437.00 NZD
Regular price
Sale price
$437.00 NZD
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
Out of stock
Quantity
Couldn't load pickup availability
The Cambium Networks cnPilot e425H enterprise class indoor wall plate long range Wi-Fi access point supporting 802.11ac Wave 2 2x2 MU-MIMO standards based beamforming. The long range performance is perfect for hotels and resorts, multi-dwelling units (MDUs) or just about any place indoor that needs a wall mounted AP with multiple Gig E ports to drive indoor Wi-Fi and wired port network access managed via portals.
The e425H also conveniently has three Gigabit Ethernet ports with one supporting 802.3af so you can power additional Power Over Ethernet devices if needed, straight from the Access Point!
The e425H also conveniently has three Gigabit Ethernet ports with one supporting 802.3af so you can power additional Power Over Ethernet devices if needed, straight from the Access Point!
Features
- Standard 5 year warranty Included
- Free Cloud or Virtual On-premises (NOC) controller
- Excellent Long Range Industrial Wi-Fi Chipset
- Controller-less Roaming: The e425H supports network wide seamless roaming for up to 1,024 clients. Host the hotspot portal on the AP for controller-less simplicity, or on cnMaestro for a powerful network wide portal
- Meshing is supported across e425Hs as well as with any other indoor or outdoor Cambium Networks Enterprise AP, for a convenient way to expand Wi-Fi coverage without laying out cabling
- The e425H packs strong transmit power and the flexible controls needed to control transmit power for high density deployments. Throughput management via airtime fairness, increased performance from autoRF, and higher client device speeds from band steering ensure your e425H network can adapt to the dynamics of ever changing client profiles
- A capacity of 100 max concurrent client associations, and 16 SSIDs, along with dual on-board Active/Standby memory banks ensure the e425H combines high density with high availability
- Includes a singlegang wall mount bracket. Optional accessories also include on-wall and dual gang wall bracket
| Details | |
|---|---|
| Product Code | PL-E425H00A-RW |
| Frequency bands | 2.4 GHz: 2400-2484 MHz, 5 GHz: 5150-5850 MHz |
| Standards | IEEE 802.11a/b/g/n/ac Wave 2 Others: 802.11 h/d/r/u/w/ |
| MIMO Streams | 2x2 MU-MIMO streams |
| Antenna gain | 4dBi (2.4GHz) 4.29dBi (5GHz) |
| Antenna Coverage | Omni (360°) |
| Max EIRP | 25 dBm at 2.4 GHz and 25 dBm at 5 GHz for long range |
| Concurrent Clients | 100 |
| Ethernet Interfaces | 3x Gigabit (10/100/1000 Mbps) RJ45 ports, One GE is 802.3af PSE port |
| Power Source(In and Out) | PoE In: 802.3at compliant. PSE out port is enabled. PoE In: 802.3af compliant: PSE out port is disabled |
| Power Consumed | 9W (typical), 25W (max, with PoE-Out) |
| Operating Temperature | 0° C to + 40° C |
| Storage Temperature | -40° C - + 70° C |
| Physical Lock | Kensington lock slot |
| Controller modes | Autonomous Controller-less operations (E.g.: roaming), Cloud Managed, On-premise virtualized controller |
| Controller-Less Fast Roaming | Yes. 802.11r, Opportunistic Key Caching, Enhanced roaming. Disconnect for sticky clients |
| Meshing | Multi-hop, either band |
| Dimensions | 147 x 94 x 32 mm |
| Weight | 268 grams (0.268kg) |
| Certifications | WiFi Alliance 80211a/b/g/n/ac, PP2.0 in process, FCC, ETSI, CE, EN 60601-1-2, IEC60950 |
| Details | |
|---|---|
| Mounting | Single-gang wall bracket included |
| Power Supply | Not Included |
Â
Â
Specifications
Â
Â
The Cambium Networks cnPilot e425H enterprise class indoor wall plate long range Wi-Fi access point supporting 802.11ac Wave 2 2x2 MU-MIMO standards based beamforming. The long range performance is perfect for hotels and resorts, multi-dwelling units (MDUs) or just about any place indoor that needs a wall mounted AP with multiple Gig E ports to drive indoor Wi-Fi and wired port network access managed via portals.
The e425H also conveniently has three Gigabit Ethernet ports with one supporting 802.3af so you can power additional Power Over Ethernet devices if needed, straight from the Access Point!
The e425H also conveniently has three Gigabit Ethernet ports with one supporting 802.3af so you can power additional Power Over Ethernet devices if needed, straight from the Access Point!
Features
- Standard 5 year warranty Included
- Free Cloud or Virtual On-premises (NOC) controller
- Excellent Long Range Industrial Wi-Fi Chipset
- Controller-less Roaming: The e425H supports network wide seamless roaming for up to 1,024 clients. Host the hotspot portal on the AP for controller-less simplicity, or on cnMaestro for a powerful network wide portal
- Meshing is supported across e425Hs as well as with any other indoor or outdoor Cambium Networks Enterprise AP, for a convenient way to expand Wi-Fi coverage without laying out cabling
- The e425H packs strong transmit power and the flexible controls needed to control transmit power for high density deployments. Throughput management via airtime fairness, increased performance from autoRF, and higher client device speeds from band steering ensure your e425H network can adapt to the dynamics of ever changing client profiles
- A capacity of 100 max concurrent client associations, and 16 SSIDs, along with dual on-board Active/Standby memory banks ensure the e425H combines high density with high availability
- Includes a singlegang wall mount bracket. Optional accessories also include on-wall and dual gang wall bracket
| Details | |
|---|---|
| Product Code | PL-E425H00A-RW |
| Frequency bands | 2.4 GHz: 2400-2484 MHz, 5 GHz: 5150-5850 MHz |
| Standards | IEEE 802.11a/b/g/n/ac Wave 2 Others: 802.11 h/d/r/u/w/ |
| MIMO Streams | 2x2 MU-MIMO streams |
| Antenna gain | 4dBi (2.4GHz) 4.29dBi (5GHz) |
| Antenna Coverage | Omni (360°) |
| Max EIRP | 25 dBm at 2.4 GHz and 25 dBm at 5 GHz for long range |
| Concurrent Clients | 100 |
| Ethernet Interfaces | 3x Gigabit (10/100/1000 Mbps) RJ45 ports, One GE is 802.3af PSE port |
| Power Source(In and Out) | PoE In: 802.3at compliant. PSE out port is enabled. PoE In: 802.3af compliant: PSE out port is disabled |
| Power Consumed | 9W (typical), 25W (max, with PoE-Out) |
| Operating Temperature | 0° C to + 40° C |
| Storage Temperature | -40° C - + 70° C |
| Physical Lock | Kensington lock slot |
| Controller modes | Autonomous Controller-less operations (E.g.: roaming), Cloud Managed, On-premise virtualized controller |
| Controller-Less Fast Roaming | Yes. 802.11r, Opportunistic Key Caching, Enhanced roaming. Disconnect for sticky clients |
| Meshing | Multi-hop, either band |
| Dimensions | 147 x 94 x 32 mm |
| Weight | 268 grams (0.268kg) |
| Certifications | WiFi Alliance 80211a/b/g/n/ac, PP2.0 in process, FCC, ETSI, CE, EN 60601-1-2, IEC60950 |
| Details | |
|---|---|
| Mounting | Single-gang wall bracket included |
| Power Supply | Not Included |
