Dahua

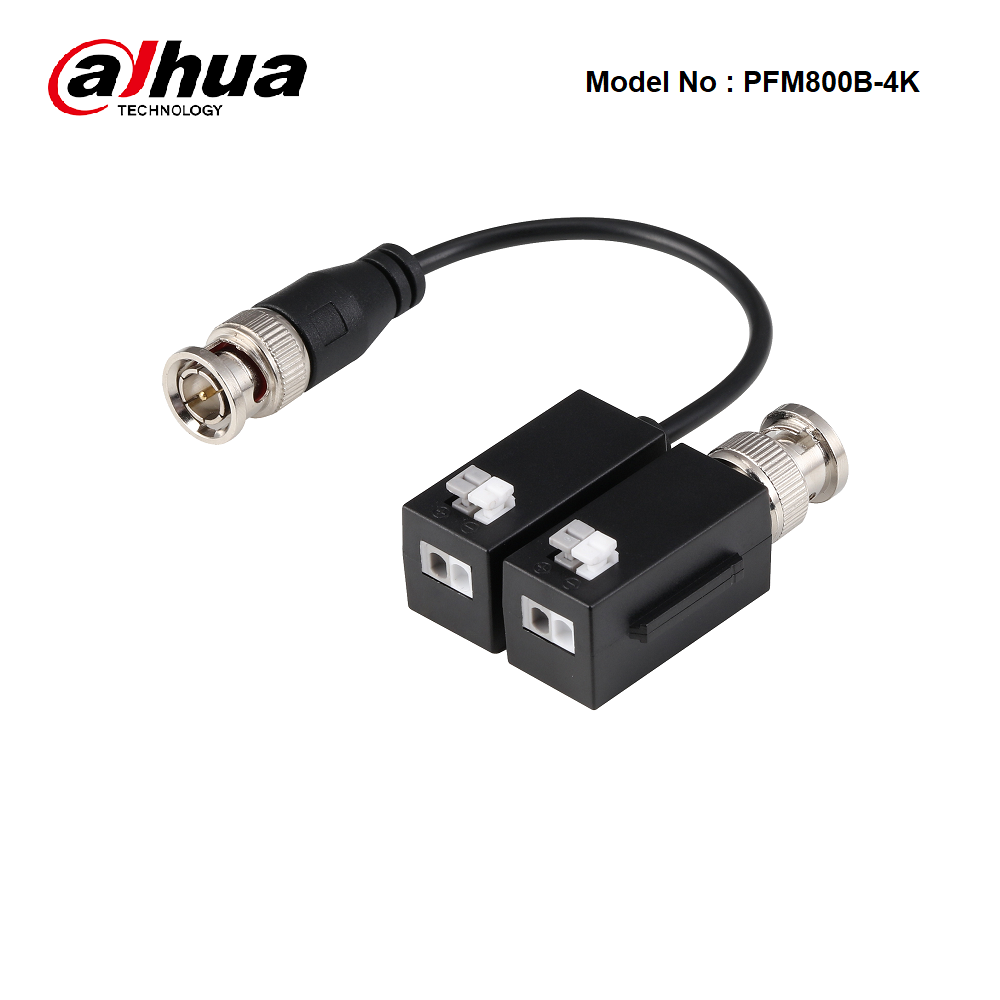

PFM800B-4K - 1 Channel Passive Balun Video & Power

PFM800B-4K - 1 Channel Passive Balun Video & Power

DH-PFM800B-4K

$7.51 NZD
$15.00 NZD $7.51 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Out of stock
Features

Includes:

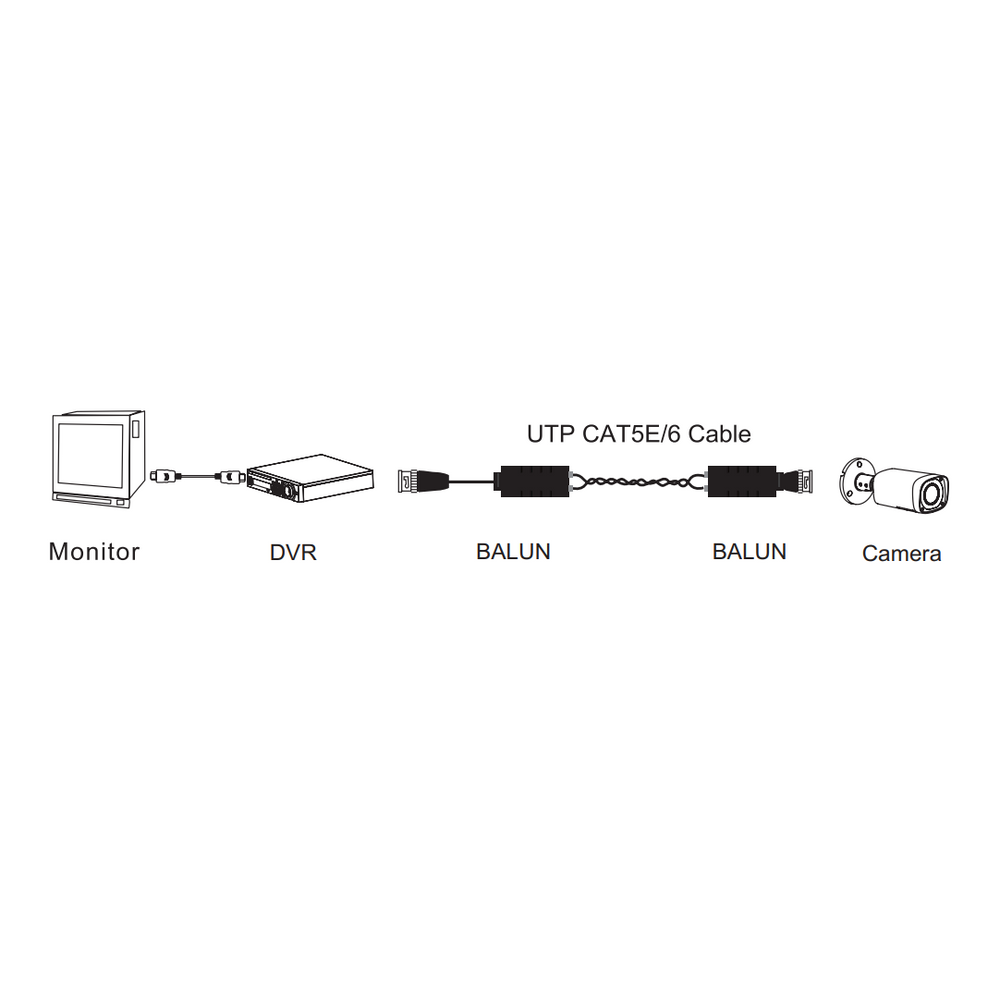

  • Real-time transmission over UTP CAT5E/6 cable
  • Passive, no need for power supply
  • Excellent anti-thunder, anti-static and anti-interference capabilities
  • Compatible format: HDCVI/TVI/AHD/CVBS
  • With female BNC connector, and pluggable screw terminal connections
Specs

Technical Specification

Model

DH-PFM800B-4K

Properties

Transmission Signal

1-CH

Network cable Type

UTP CAT5E/6 (material: CU)

Transmission Properties

HDCVI

720P : max.400m

(1312.34ft)

1080P : max.250m

(820.21ft)

4M/6M/4K : max.200m

(656.17ft)

TVI

720P : max.400m

(1312.34ft)

1080P : max.250m

(820.21ft)

4M/5M : max.200m

(656.17ft)

AHD

720P : max.400m

(1312.34ft)

1080P : max.250m

(820.21ft)

4M/5M : max.200m

(656.17ft)

Video Transmission Properties

Coaxial Video Connector

BNC-M

Connection Way

RJ45

Compatible Format

HDCVI/TVI/AHD/CVBS

Resolution

720P/1080P/4MP/5MP/4K

Protection

ESD

1a contact discharge electricity level 3

1b air discharge electricity level 3

Per: IEC61000-4-2

UTP Cable Connector

2KV(different-mode), 4KV(common-mode)

Per: IEC61000-4-5

Impedance

BNC Male Impedance

75 ohms

UTP Cable Impedance

100 ohms

Physical Properties

Weight

34g (0.07lb) (1 pair)

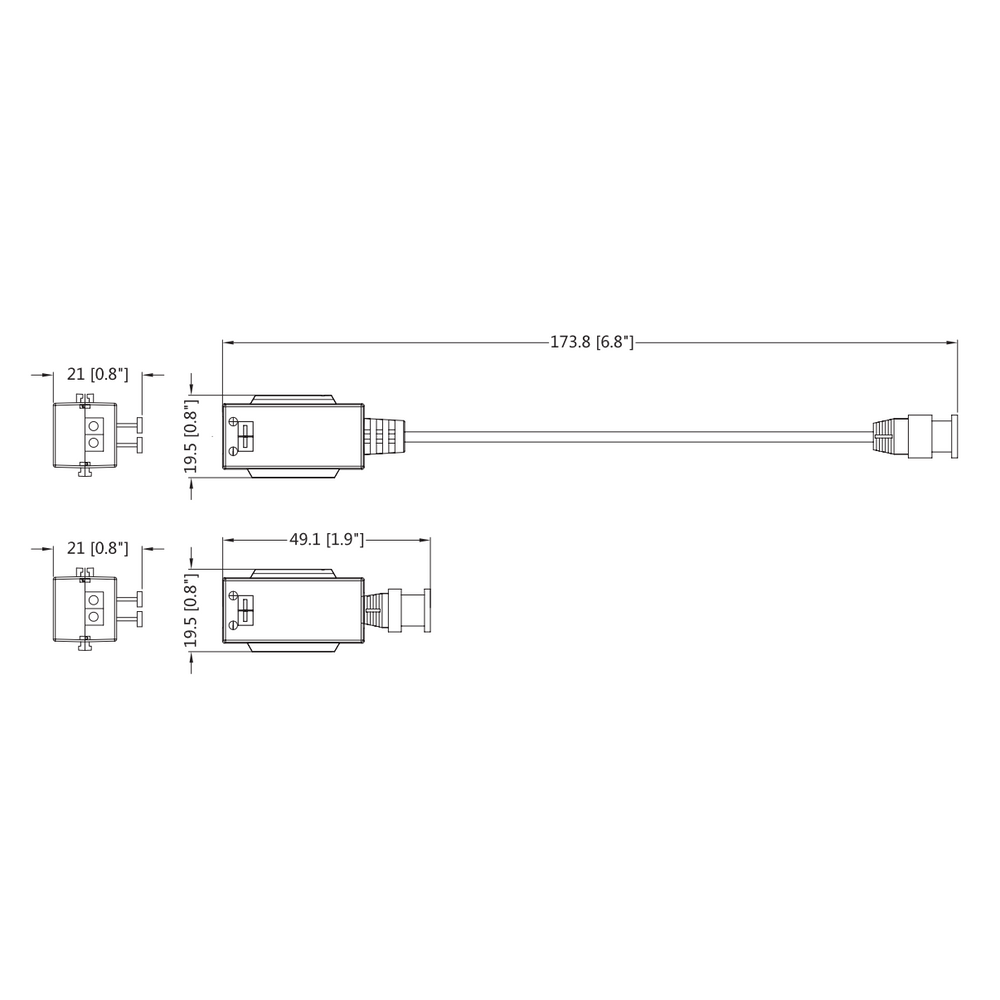

Dimension(LxWxH)

TX: 173.8mmx19.5mmx21mm

RX: 49.1mmx19.5mmx21mm
