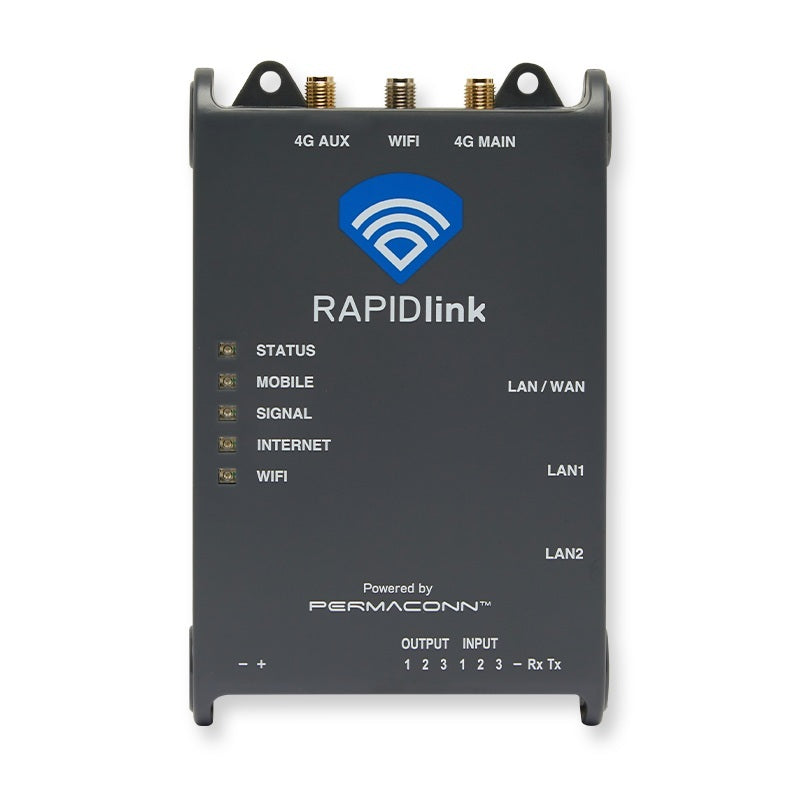

Permaconn RAPIDlink 4G LTE Wifi Router with I/O and pre-loaded Spark NZ and ONE NZ sims

Permaconn RAPIDlink 4G LTE Wifi Router with I/O and pre-loaded Spark NZ and ONE NZ sims

RAPIDlink

$265.00 NZD
$265.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock
Permaconn RAPIDlink 4G LTE Wifi Router with I/O and pre-loaded Spark NZ and ONE NZ sims.
Permaconn RAPIDlink 4G LTE Wifi Router with I/O

RAPIDlink 4G routers provide the peace of mind of 99.99% uptime and triple network capabilities, ensuring your remote sites and mission-critical applications stay connected with seamless 4G failover. RAPIDlink delivers top-tier connectivity and the confidence of continuous network performance for CCTV cameras, alarm panels, access control panels, remote sensors, and all other IoT devices.

RAPIDlink from Permaconn delivers seamless business continuity across IoT applications of every scale, thanks to dual-SIM internet connectivity and remote management.

This easily-integrated solution features multi-path low-latency high-speed 4G, ethernet and Wi-Fi, for fail-safe operations.

Note: A RAPIDlink Account is required to complete device activation. Register at www.rapidlink.com
Features
  • Fast to install, simple to configure and easy to manage remotely 24/7.
  • Router and SIMs can be managed from one portal.
  • Supplied ready-to-go with built-in 4G connectivity.
  • Seamless connectivity with the peace of mind of 99.99% uptime.
  • One Stop Managed Service
  • Underpinned by the Permaconn secure cloud portal.
  • Flexible data pooling and top-up options.
  • Available with a range of monthly data plans – from 30MB to 100GB.
  • Sends real-time data usage notifications.
Details
Product Code RAPIDlink
4G LTE-FDD Frequency B1(2100MHz), B2(1900MHz), B3(1800MHz), B4(1700MHz) B5(850MHz), B7(2600MHz), B8(900MHz), B28(700MHz)
Bandwidth Max 150Mbps (DL) Max 50Mbps (UL)
Ports 3 x RJ-45 ports 10/100 Base-T Auto MDI/MDIX
Input 3 x Inputs, state change detected every second, EOL 3.3K
Output 3 x Open Collector outputs @ 50mA (max). Function control using RAPIDlink web portal, mobile app and RESTAPI
Standards and Protocols IEEE 802.11b/g/n
Antennas 2x Cellular 4G (MIMO), 1 x 2.4Ghz WiFi, Dual-band Detachable antennas included
Antennas Cords 3 x 640mm with SMA Connectors included
Network Media 1x WAN/LAN port, 2x LAN ports
Flash 32MB
DRAM DDR2 128MB
Surge Protection 1.5A internal resettable fuse
Dimensions (H x D x W) Router: Dimensions 110mm (h) x 25mm (d) x 80mm (w), Magnetic Mounting Board: 1mm (h) x 80mm (d) x 100mm (w)
Weight Router: 180g, Antennas + Magnetic Mounting Board: 140g
Mounting 2x (20mm x 2mm) magnets within the device, Desktop, Wall mounting DIN Mounting (Sold Separately)
Button Reset button (the provided Flat head Green Screwdriver fits to purpose)
Dual SIM Pre provisioned with SIMS from 2 different carriers
Routing IP pass-through; NAT, IP Port Forwarding; DHCP; DNS Client and Server
Failover Automatic failover/ failback from IP (WAN) to 4G
Firewall Advanced firewall configuration
Management Remote configuration (include email and push notifications) via RAPIDlink web portal
App Available to download at App Store and Google Play iOS 12.0+, Android 6.0+
System Requirements A RAPIDlink Account is required to complete device activation. Register at www.rapidlink.com, SIM Data Management Select plans and managed as auto topups
Consumption Idle: 0.12A @13.8V DC; Transmitting: 0.35A @ 13.8V DC
Max Power Consumption 1.5W (average) with connection open on cellular network
Supply 10 – 15V DC Power Adaptor
Environment Operating Temperature: 0-50 ‘C, Operating Humidity: 15% to 85% non- condensing
Certification RoHS, RCM and ISO 27001
Details
Includes RAPIDLink RL10 Router, 2 x 4G Antenna, 1 x Wi-Fi Antenna, 1 x 2 PIN plug, 1 x 9 PIN Plug, 3 x 3.4k "end of line" Resistors, 1 x Screw Driver, 1 x Metal Ground Plate, QIG
