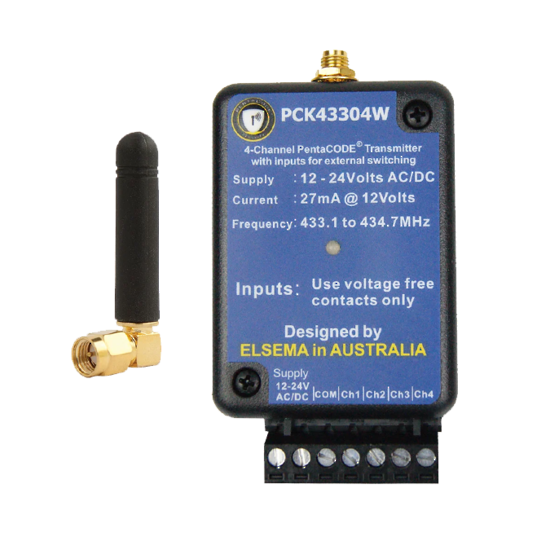

PCK43304W - 4 Channel PentaCode high power transmitter with external inputs.

. It is designed to accept inputs from external (Normally Open) switches or buttons, enabling the user to initiate the transmitter’s signal manually. It’s commonly used in applications where direct physical control over the transmission is desired, such as in remote control systems, gate openers, or PLC control in industrial automation.... The PentaCODE ® dual coding system gives the installer the option to use the classic 12-way dip switch coding or one of over 17 billion encrypted codes.... Application Industrial or Commercial use Usable Receivers PCR433 series Supply 12 Volts AC/DC Coding Encrypted coding or 12-way dipswitch Operating distance Up to 500 metres Simultaneous Transmission Yes Dimension 70 x 55 x 25 mm Custom Label Design Yes Key features 433MHz PentaCODE ® Transmitter with External Inputs The PCK43304W is a 4-channel PentaCODE ® transmitter with external inputs The PCK43304W transmitter is compatible with all PCR series receivers, ensuring broad application potential Technical Specifications Frequency 433MHz License free band MOQ 100 pcs Channel Options 4 Antenna 433MHz Series The external button acts as a trigger, activating the transmitter to send a signal to a receiver or control system when pressed Key features Easy-to-install this hard wired transmitter boosts efficiency and flexibility, ensuring seamless operation Ideal for site where is it difficult to run cables, this transmitter with external inputs is the perfect solution Explore now for innovative control options!

Key features

• Key features Frequency Hopping Spread Spectrum
