Shuttle

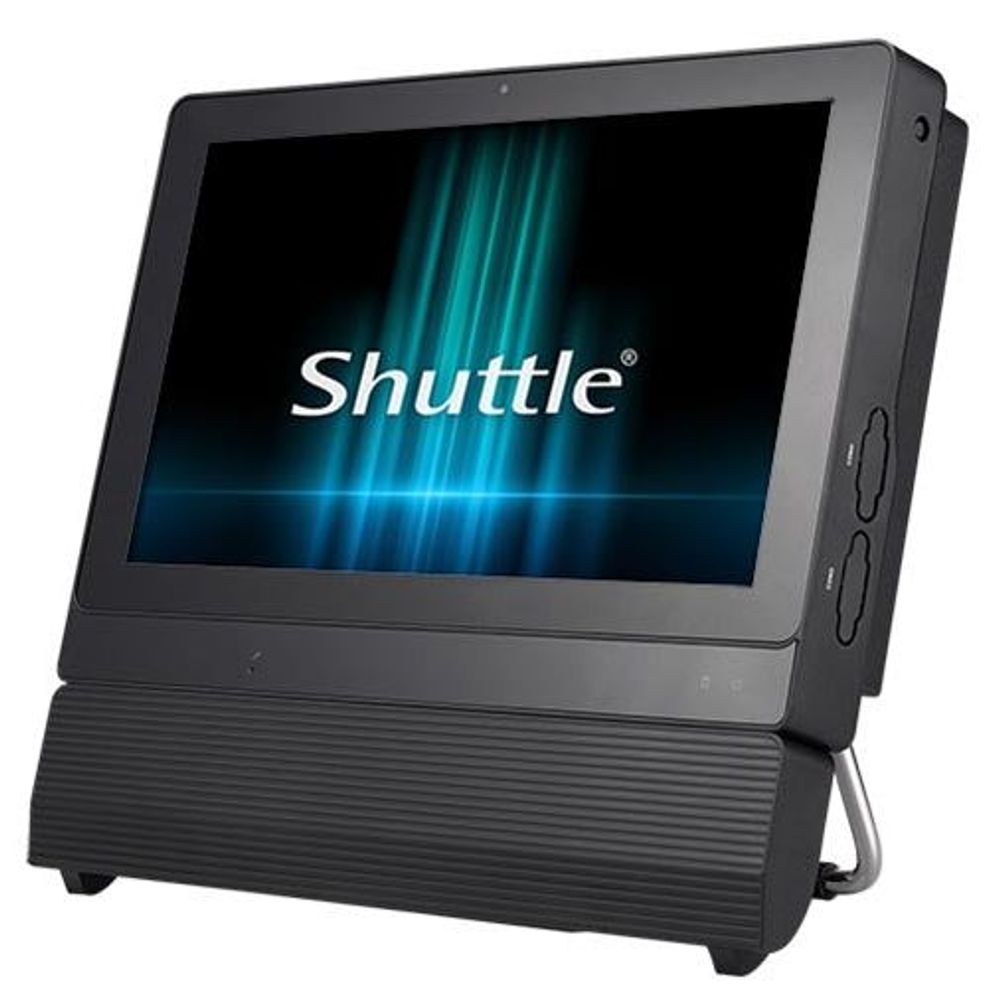

P20U - Shuttle P20U 11.6" AIO Touch Barebones PC

P20U - Shuttle P20U 11.6" AIO Touch Barebones PC

P20U

$1,293.33 NZD
$1,293.33 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Out of stock
Overview Shuttle new 11.6" POS-P20 is equipped with Intel Kabylake-U Celeron 3865U high-performance dual-core processor. It provides HDMI and D-sub interface to connect with two monitors and supports three independent displays, and has a built-in HD webcam. The P20U front panel features IP54 design for mobile POS or DOOH applications. The fanless design ensures 24/7 reliable and silent operation and is operable in 0-40 ⁰C ambient temperatures.

Features

  • P20U
  • Intel Celeron 3865U 1.80GHz
  • 2x DDR4-2133 SO-DIMM Slots
  • 1x 2.5" SATA 9.5mm SSD/HDD Bay, 1x M.2 Expansion Slot,
  • 1x 2.5" Bay, 1x M.2 Expansion Slot Available
  • 2x USB 3.0, 2x USB 2.0, 1x HDMI, 1x D-Sub
  • 1x Gigabit Ethernet, 802.11b/g/n

Specifications

Processor Intel Celeron 3865U 1.8GHz Dual Core (2MB SmartCache)
Display 11.6" HD Touchscreen, 1366 x 768, Multi Touch, Gloved Touch
Memory 2x DDR4 2133MHz SODIMM Slots (Max. 32GB)
Storage Interface 1x 2.5" SATA3 Device Bay (Max. 9.5mm)
Expansion Slot 1x M.2 2280 Type M key socket 1x M.2 2230 Type E Key socket
Audio Realtek ALC269 HD 1 Channel
Ethernet Intel i211LM 10Mb/s, 100Mb/s, 1000Mb/s operation Supports S3, S4, S5, Wake-On-LAN
Back Panel 2x USB 3.0 2x USB 2.0 1x RJ-45 10/100/1000 Mbps Ethernet 1x HDMI 1x D-Sub 1x Headphone/Line out connector 1x Microphone Jack 1x DC in connector 1x Power Cord Hook
Side Panel 2x USB 2.0 1x SD Card Reader
Accessories XPC quick installation guide XPC DVD Driver 1x Power cord 1x Power adapter 1x Screws pack 1x HDD bracket
Webcam 720P HD CCD
Microphone Yes
Dimensions (mm) 299.1 (w) x 67.75 (d) x 263.4 (h)
36 Month Return to Base Warranty
