Omada SM5110-LR Single-Mode 10GBase-LR SFP+ LC Transceiver

Omada SM5110-LR Single-Mode 10GBase-LR SFP+ LC Transceiver

SM5110-LR

$67.00 NZD
$67.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Out of stock
Omada SM5110-LR Single-Mode 10GBase-LR SFP+ LC Transceiver

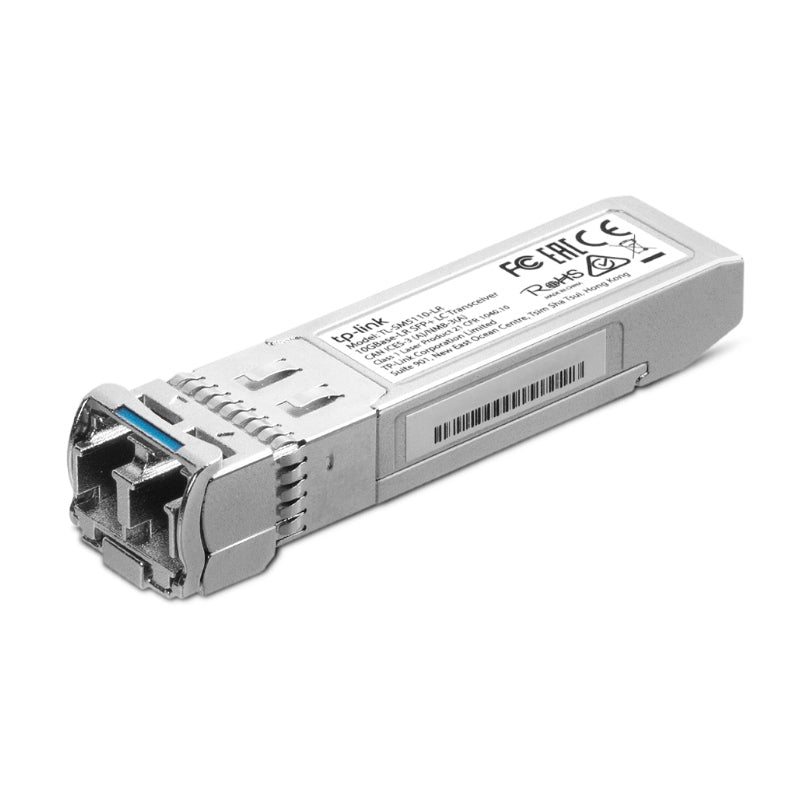

The Omada SM5110-LR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-LR high performance 1310 nm single-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.

Features
  • Single-mode SFP+ LC Transceiver
  • Hot-Pluggable with maximum flexibility
  • supports Digital Diagnostic Monitoring (DDM)
  • Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
Details
Manufacturer's Code TL-SM5110-LR
Standards and Protocols IEEE 802.3ae, TCP/IP
Wave Length 1310 nm
Power Supply 3.3V
Fiber Type 9/125um Single-Mode
Max. Cable Length 10 km
Data Rate 10 Gbps, SFP+
Port Type LC Duplex
Operating Temperature 0–70 °C
Storage Temperature -40–85 °C
Operating Humidity 10–90% RH, Non-Condensing
Storage Humidity 5–90% RH, Non-Condensing
DDM Yes
SFP-MSA Yes
Hot Swappable Yes
Dimensions ( W x D x H ) 56.7*13.9*10.35 mm
Safety & Emission FCC, CE
Details
Inlcuded 10G SFP+ Module TL-SM5110-LR, Installation Guide
