• Omada EAP100-Bridge-Kit 2.4Ghz Pre-Configured Bridge Kit
1 1

Omada

Omada EAP100-Bridge-Kit 2.4Ghz Pre-Configured Bridge Kit

Omada EAP100-Bridge-Kit 2.4Ghz Pre-Configured Bridge Kit

EAP100-Bridge-Kit

$107.83 NZD
$107.83 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock

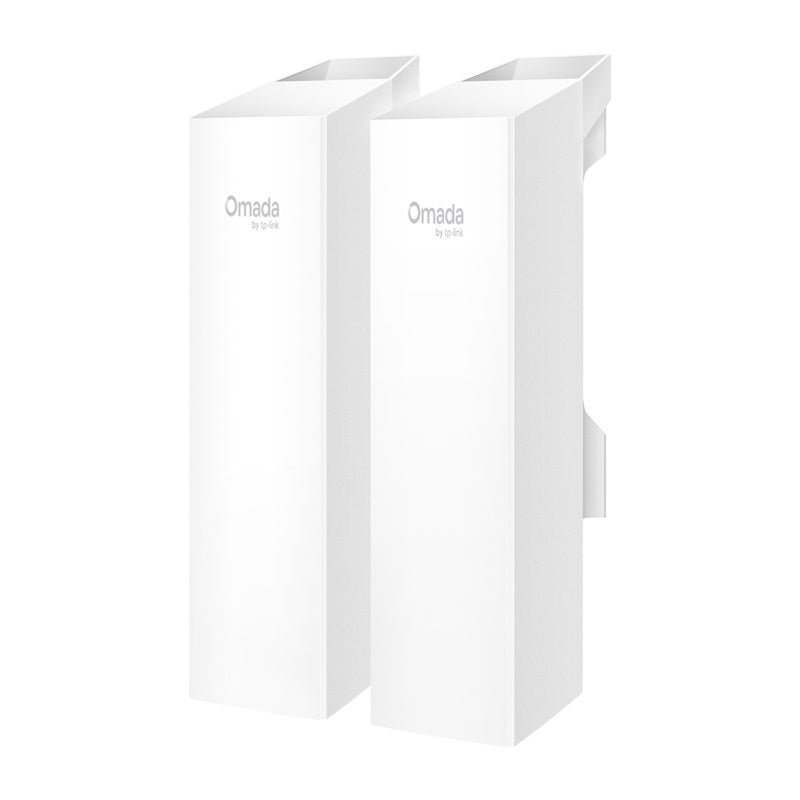

Omada EAP100-Bridge-Kit 2.4Ghz Pre-Configured Bridge Kit
Omada EAP100-Bridge-Kit 2.4Ghz Pre-Configured Bridge Kit, 300Mbps Indoor/Outdoor Wireless Bridge recommended for up to 500m point to point.
NOTE: This kit doesn't include PoE Injectors

Features
  • Ideal for long-range wireless transmission up to 500 m
  • Equipped with Omada SmartBridging: Our unique design for the most effortless and easy bridge setup ever
  • Plug-and-Play Preconfigured Kit: Preconfigured for instant auto-pairing, the bridges deliver instant connectivity right out of the box. Simply power on and go. Ideal for quick deployments
  • App-Guided Alignment: Visualized App-Guided Alignment for long-distance setups and Instant Speed Testing for installation verification
  • Flexible Power Supply: 802.3af PoE, 24V Passive PoE supported
  • 3× Fast Ethernet Ports: Connects more cameras and devices without an extra switch.
  • Built for Tough Outdoor Conditions: Features an IP65 weatherproof enclosure and operating range of -40°C to 70°C
  • Remote Monitoring & Management: Choose Standalone mode or Omada SDN mode for remote centralized management via Web UI or app
Details
Manufacturer's Code EAP100-Bridge-Kit
Interface 3x 10/100 Mbps Ethernet Ports
Button Reset
Power Supply 12V DC / 802.3af PoE / 24V Passive PoE / 48V Passive PoE supported
Max. Power Consumption 4.8 W
Dimensions ( W x D x H ) 79 × 60 × 224 mm
Antenna Gain 2.4 GHz: 8.0 dBi
Antenna Beamwidth Horizontal:70°, Vertical: 70°
Weatherproof Enclosure IP65
Mounting Pole and wall mounting (Pole accessories included)
Transmission Power 20dBm (2.4 GHz, EIRP)
Centralized Management Omada Hardware Controller, Omada Software Controller, Omada App
Certification CE, FCC, RoHS
Operating Temperature -40 °C–70 °C
Storage Temperature -40 °C–70 °C
Operating Humidity 10%–90% non-condensing
Storage Humidity 5%–90% non-condensing
Details
Mounting Yes, included
POE Injector Not Included - See related products.
View full details
