NS-2

Long Data Transmission Distance

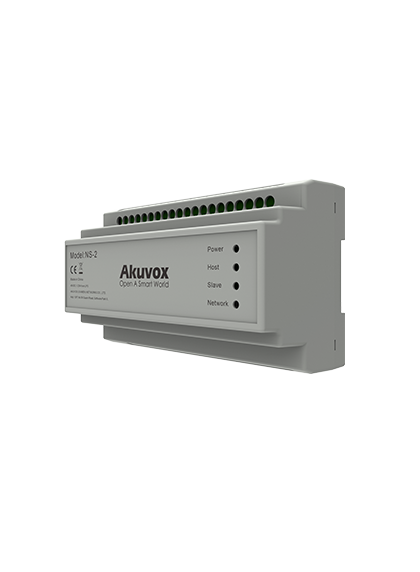

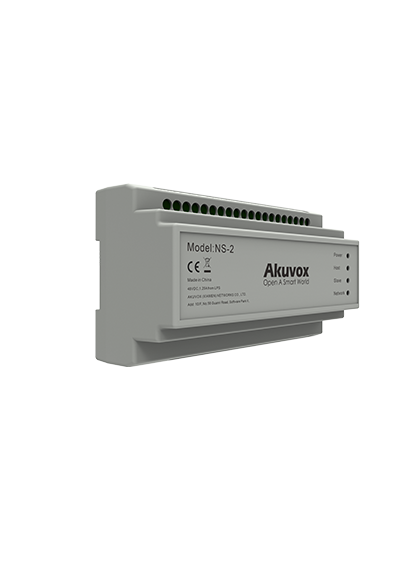

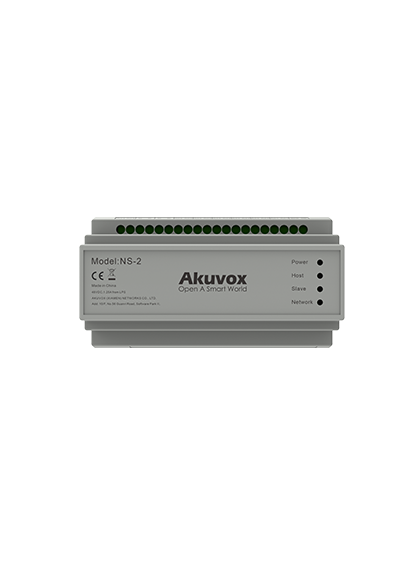

The NS-2 is Akuvox 2-wire IP network switch which provides a convenient way to upgrade analogue intercom systems, no need for rewiring. Its super long transmission distance & good compatibility with existing lines makes it fit for most of old buildings



NS-2







    Specs





    NS-2 Specification

    • At a Glance

      Support network and power supply for R20A-2 or C313W-2 through 2-wire cable;
      Support multi-level cascade through 2-wire cable;
      Connects up to 6 pcs of Akuvox 2-wire IP intercom devices;
      Super long transmission distance via 2-wire cable;
      Powerd by 48VDC or 24VDC power supply unit;
      Rail mounting installation;

    • Physical & Power

      Communication: TCP/IP
      RJ45 port: 1 x RJ45 port, 10/100Mbps adapter
      2-wire ports: 6 pair
      Working voltage: 48V or 24V
      Status Indicator: 4
      Installation: Rail mounting
      Working temperature: -20℃~+50℃
      Storage temperature: -20℃~+70℃
      Working humidity: 10%~90%
      Dimension: 161 x 90 x 65 (mm)

    • Physical & Power

      Old building retrofit
